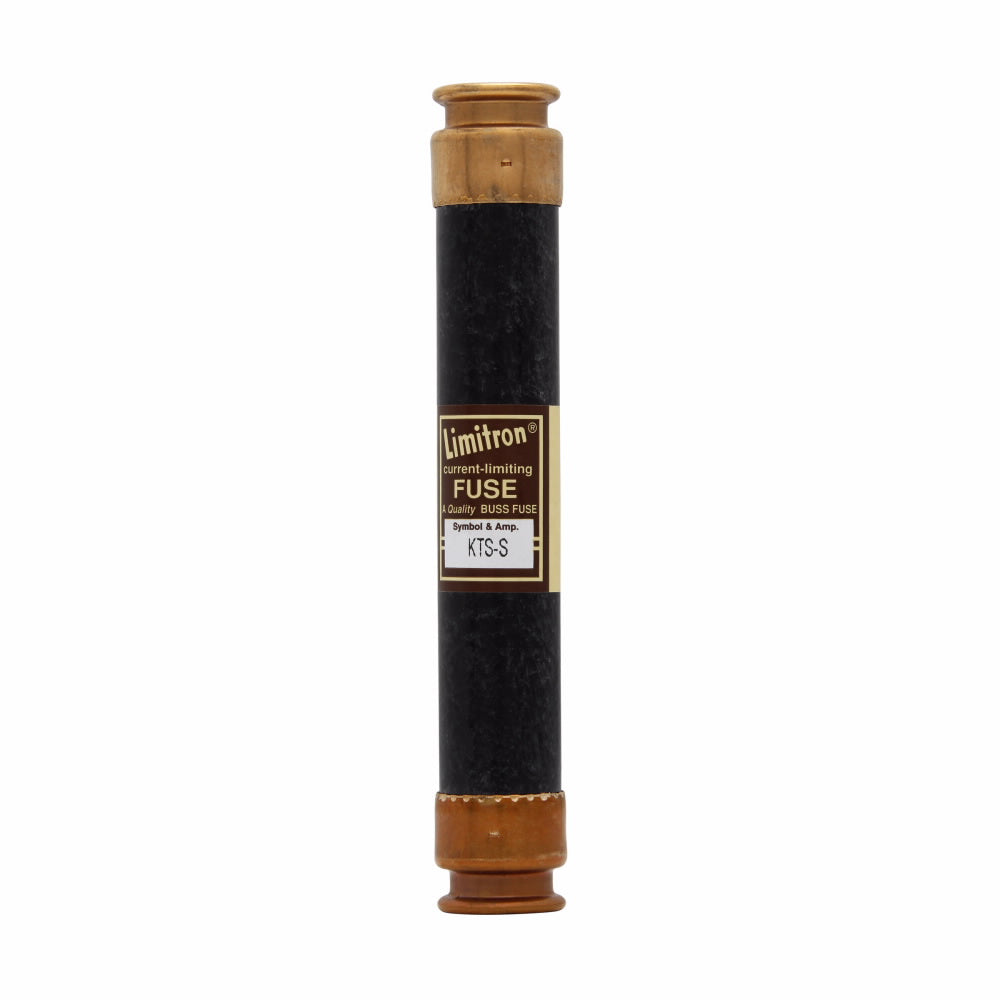

Bussmann KTS-S-15 - RK1 Class Fuse 15A 600V (200kA AIC Rating)

The Bussmann KTS-S-15 is a low-voltage current-limiting fuse from the LIMITRON family designed to provide reliable overcurrent protection in industrial electrical systems. It features a 600V AC voltage rating and 15A current rating with a high interrupting capacity of 200kA at 600V AC. The fuse construction utilizes a single-barrel design with ferrule connections and compact dimensions of 5 inches in length with a 0.81-inch diameter. This RK1 class fuse meets industry standards for current-limiting performance and is typically applied in motor branch circuits, feeder circuits, and industrial control panels where high fault current protection is required.

Key Features & Specifications

• Type: KTS series current-limiting fuse, single barrel construction with ferrule connections
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 5" length × 0.82" height × 0.82" width (127mm × 20.8mm × 20.8mm)
• Standards: UL/CSA listed, RK1 class rating
• Applications: Motor branch circuits, feeder circuits, industrial control panels
• Connection: Ferrule
• Barrels: 1
• AIC rating: 200kA@600V AC
• Class Rating: RK1
• Diameter: 0.81 inches (20.6mm)
• Weight: 1.13 lb
• Family: LIMITRON
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 05171241615
• GTIN: 00051712416153
