Cooper Bussmann KTS-S-10 - RK1 Fuse 600V 200kA Interrupting Capacity (Time-Delay Protection)

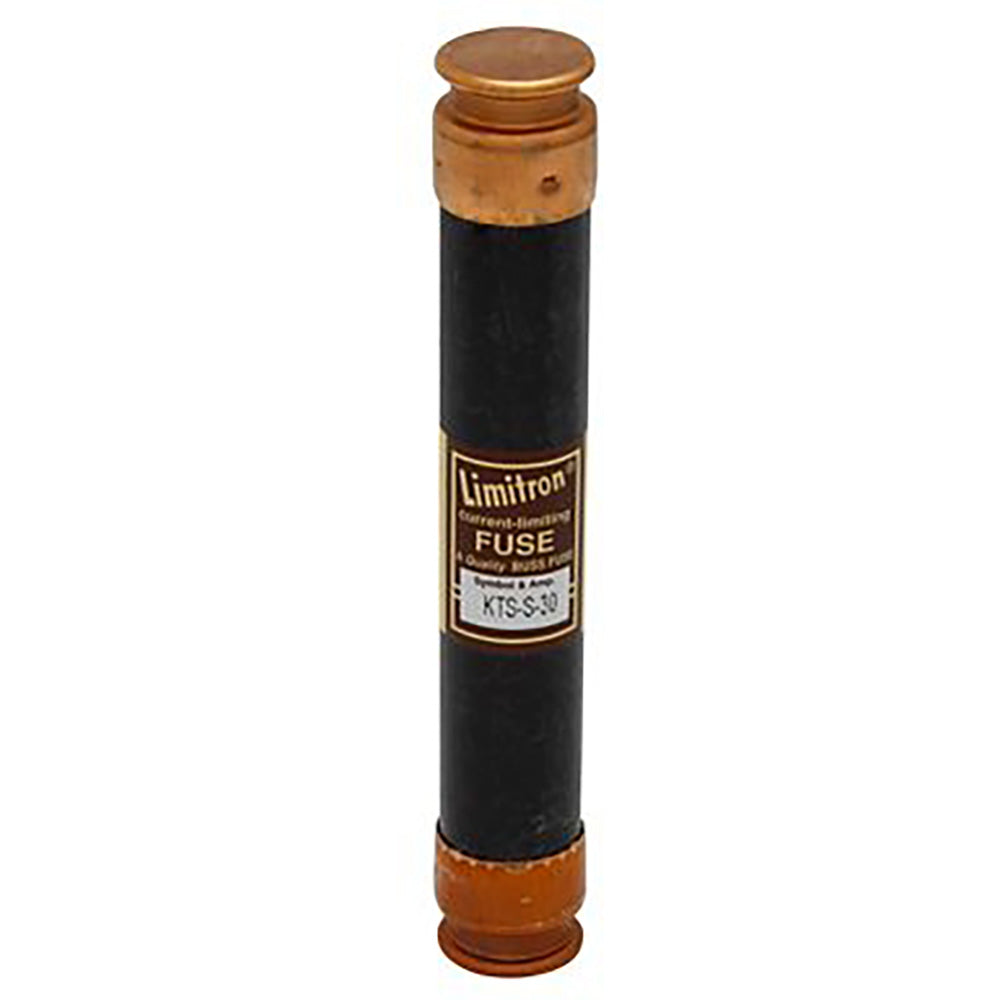

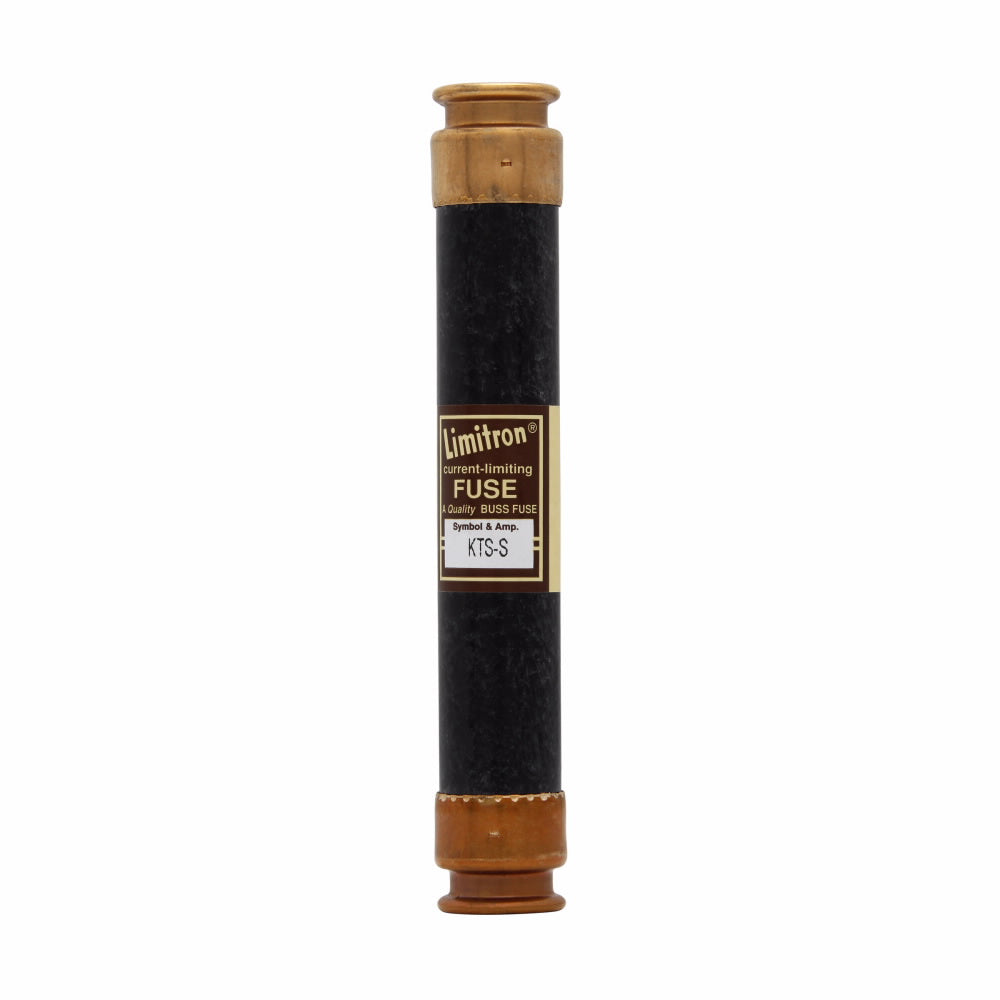

Cooper Bussmann KTS-S-10 is a LIMITRON RK1 class low-voltage fuse designed for circuit protection in industrial applications. Rated for 600V AC/DC systems with a 200kA interrupting capacity, this ferrule-connected fuse features a compact cylindrical design measuring 5" in length and 0.81" in diameter with a 1.13 lb weight. The single-barrel construction meets UL/CSA standards for time-delay protection against overloads and short circuits. Typical applications include motor control centers, panelboards, and industrial power distribution systems where reliable current limitation is required.

Key Features & Specifications

• Type: Time-delay current-limiting fuse (RK1 class)
• Voltage Rating: 600V AC/DC
• Current Rating: 10A
• Dimensions: 5" L × 0.82" W × 0.82" H (127mm × 20.8mm × 20.8mm)
• Standards: UL/CSA certified
• Applications: Motor protection, panelboards, industrial power distribution
• Connection: Ferrule
• Barrels: 1
• AIC rating: 200kA @ 600V
• Class Rating: RK1
• Diameter: 0.81" (20.6mm)
• Weight: 1.13 lb (0.51 kg)

Product Identification

• UPC: 05171241610
• GTIN: 00051712416108
