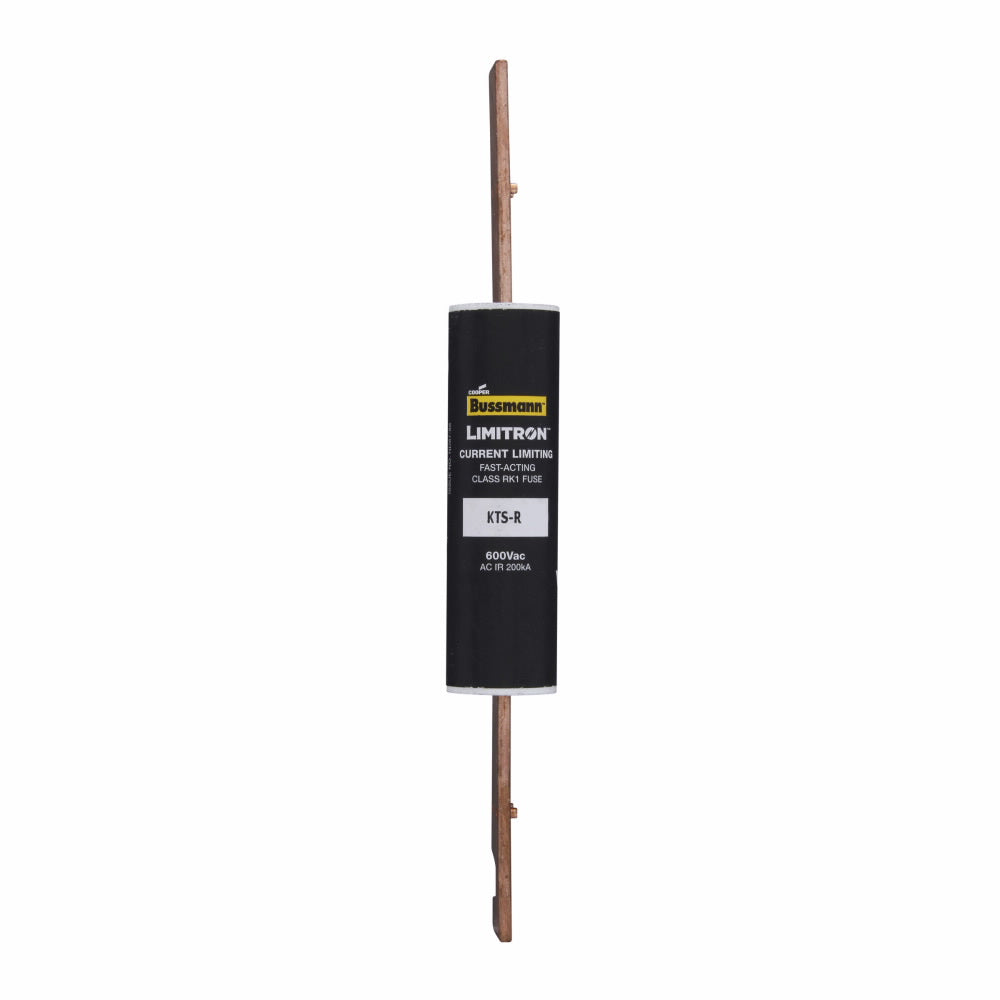

Bussmann KTS-R-80 - RK1 Class Fuse 80A (200kA AIC @600V)

Bussmann KTS-R-80 is a low-voltage current-limiting fuse designed for industrial circuit protection applications. It provides reliable overcurrent protection with a 600V AC rating and 80A current rating, featuring a compact single-barrel construction measuring 7.88 inches in length with 0.81-inch diameter. The fuse meets RK1 class requirements and offers 200,000A interrupting capacity at 600V, complying with industry standards for high-performance circuit protection. Typical applications include motor control centers, industrial control panels, and power distribution systems where high fault current interruption is critical.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 80A
• Dimensions: 7.88" L × 1" W × 1" H (200mm × 25mm × 25mm)
• Standards: RK1 class rating
• Applications: Industrial control panels, motor control centers, power distribution systems
• AIC rating: 200kA @ 600V
• Class Rating: RK1
• Barrels: 1
• Diameter: 0.81" (20.6mm)
• Weight: 3 lb
• Mounting: Standard fuse clip installation

Product Identification

• UPC: 051712417143
