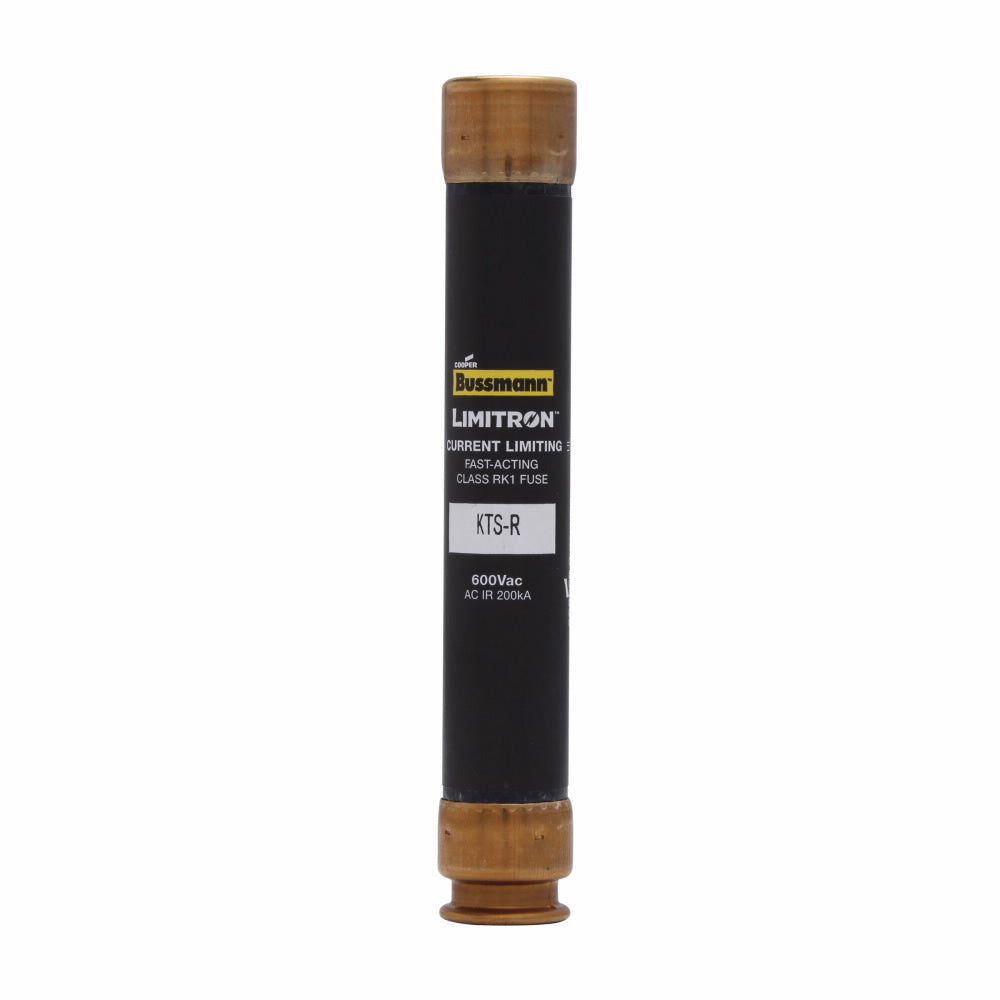

Cooper Bussmann KTS-R-6 - Class L Fuse 6A 600V (200kA Interrupt Rating)

Cooper Bussmann KTS-R-6 is a Class L low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 6A current rating, housed in a compact 0.8" x 5" x 0.8" (20.3mm x 127mm x 20.3mm) ceramic body with 7.13mm diameter and single-barrel construction. The fuse meets industry standards with a 200kA interrupting capacity at 600V, providing reliable protection for motor circuits, transformers, and power distribution equipment.

Key Features & Specifications

• Type: Class L time-delay fuse with ceramic body
• Voltage Rating: 600V AC/DC
• Current Rating: 6A
• Dimensions: 0.8" x 5" x 0.8" (20.3mm x 127mm x 20.3mm)
• Weight: 1 lb
• Diameter: 7.13mm
• Barrels: 1
• AIC Rating: 200kA @ 600V
• Standards: UL/CSA certified
• Applications: Motor protection, transformers, power distribution

Product Identification

• UPC: 05171241702
• GTIN: 00051712417020
