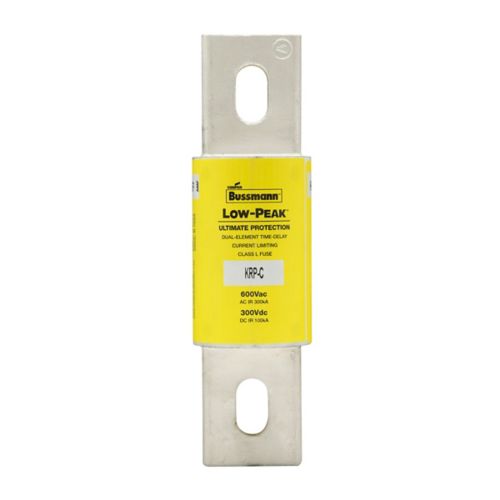

Bussmann KRP-C-800 - Class L Time-Delay Fuse 800A (300kA AIC @600V)

Bussmann KRP-C-800 is a Class L time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. This 800A rated fuse operates at 600V AC/DC with an impressive 300kA interrupting rating, providing reliable protection against both overloads and short circuits. The single-barrel construction features a 2.4-inch diameter and weighs 5 lb, engineered with current-limiting technology to minimize let-through energy during fault conditions. Certified to UL and CSA standards, this Low-Peak fuse meets rigorous safety requirements for industrial applications. Typical installations include service entrance equipment, motor control centers, and main distribution panels where high fault current protection is critical.

Key Features & Specifications

• Type: Class L time-delay fuse, current-limiting design with single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 800A
• Dimensions: 2.4-inch diameter
• Standards: UL Listed, CSA Certified
• Applications: Industrial power distribution, service entrance equipment, motor control centers
• AIC rating: 300kA@600V
• Class Rating: L
• Barrels: 1
• Weight: 5 lb
