Bussmann KON150 - Class K5 Current-Limiting Fuse 150A (600V AC, 200kA AIC)
Regular price
$71.89
$71.89
Regular price
Sale price
$71.89
$71.89
Save $-71.89
/
- Low stock - 9 items left
- Backordered, shipping soon

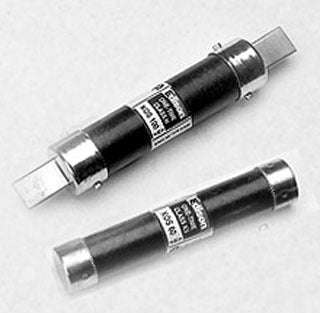

Bussmann KON150 is a current-limiting fuse designed for overcurrent protection in industrial power distribution systems. It features a 600V AC voltage rating and 150A current rating with current-limiting operation to protect against short-circuit faults. The fuse utilizes a silver-sand construction within a durable ceramic body measuring 76.2mm in length and 50.8mm in diameter, providing reliable performance in demanding environments. It complies with UL Class K5 standards and is specifically engineered for motor circuit protection, transformer protection, and feeder circuit applications where high interrupting capacity is required. Typical industrial applications include motor control centers, industrial control panels, and power distribution equipment requiring coordinated protection schemes.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Current-limiting fuse with silver-sand construction, ceramic body
- Voltage Rating: 600V AC
- Current Rating: 150A
- Dimensions: 76.2mm length × 50.8mm diameter
- Standards: UL Class K5
- Applications: Motor circuit protection, transformer protection, feeder circuits
- Fuse Class: K5
- Interrupting Rating: 200kA AIC
- Mounting: Blade terminal
- Certification: UL Listed
- Weight: 5.19 lb
Product Identification
- UPC: 782634361503
