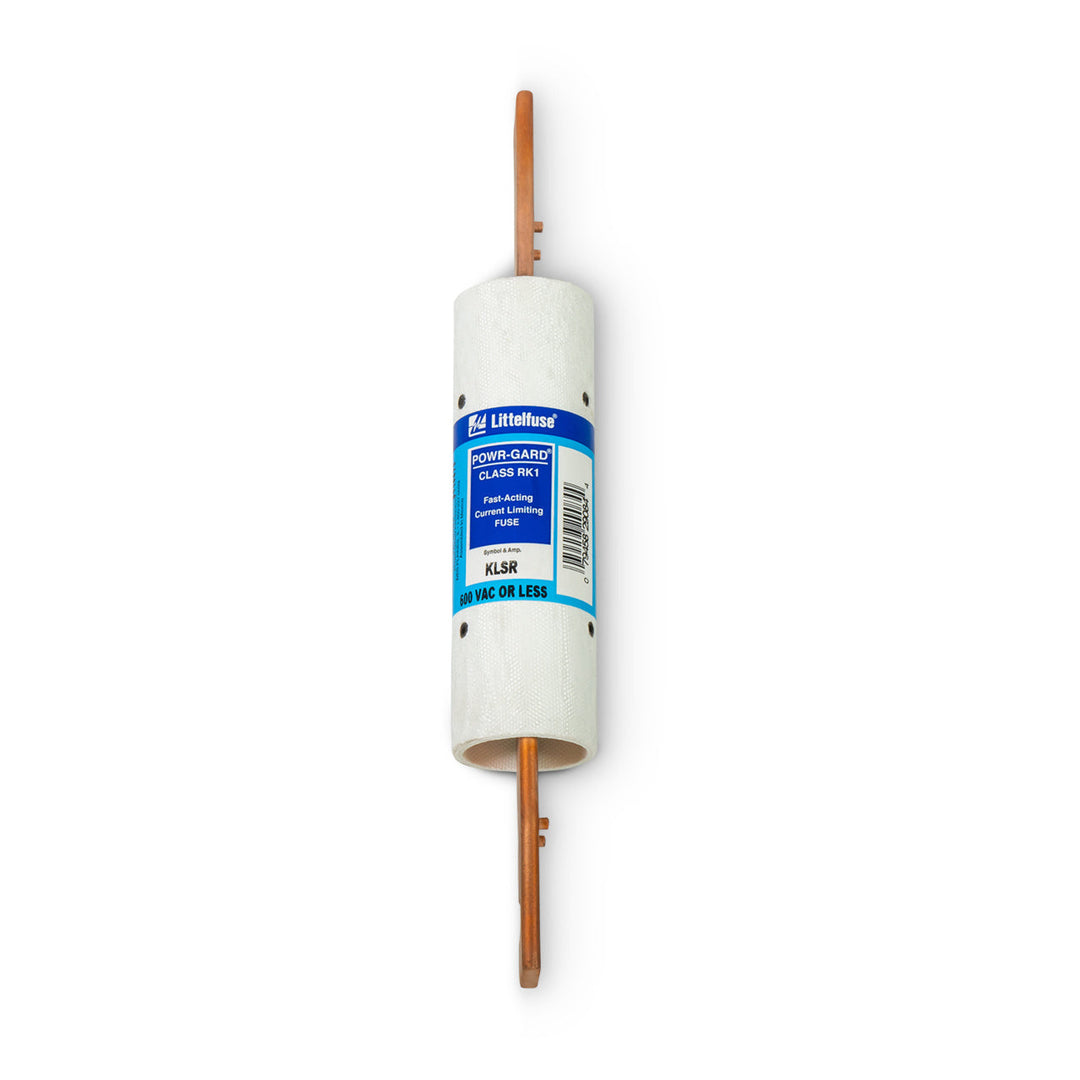

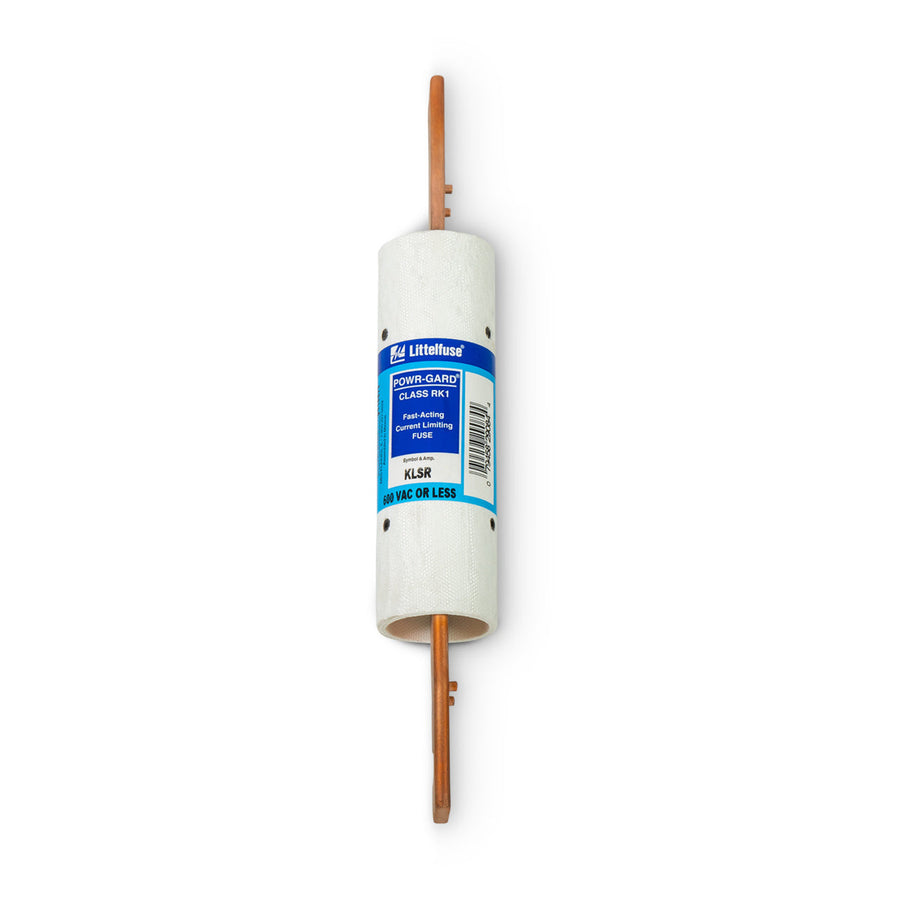

KLSR KLSR-100 - RK1 Fast-Acting Fuse 100A (600V AC/300V DC, 200kA AIC)
Regular price
$96.76
$96.76
Regular price
Sale price
$96.76
$96.76
Save $-96.76
/
- In stock, ready to ship
- Backordered, shipping soon
KLSR KLSR-100 is a fast-acting RK1 fuse designed for high-current circuit protection in industrial power distribution systems. This single-element fuse features a 100A current rating with dual voltage capability (600V AC/300V DC) and exceptional 200kA interrupting capacity at rated AC voltage. The 33.30mm diameter x 200.00mm (1.311" x 7.874") cylindrical body with knife blade terminals provides secure mounting in compatible fuse holders, while UL (E81895), CSA (LR29862), and CE certifications ensure compliance with international safety standards. Typical applications include motor control centers, switchgear, and heavy equipment requiring reliable overcurrent protection.
Key Features & Specifications
Key Features & Specifications
- Type: Fast-acting RK1 fuse (single-element)
- Voltage Rating: 600V AC / 300V DC
- Current Rating: 100A
- Dimensions: 1.311" diameter x 7.874" length (33.30mm x 200.00mm)
- Weight: 0.8 lb
- Mounting: Knife blade terminals
- Standards: UL Listed (File E81895), CSA Certified (File LR29862), CE Marked
- AIC Rating: 200kA @ 600V AC, 20kA @ 300V DC
- Applications: Industrial power distribution, motor control centers, switchgear
