Cooper Bussmann KBC-100 - Low Voltage Fuse 100A (200kA AIC @600V)

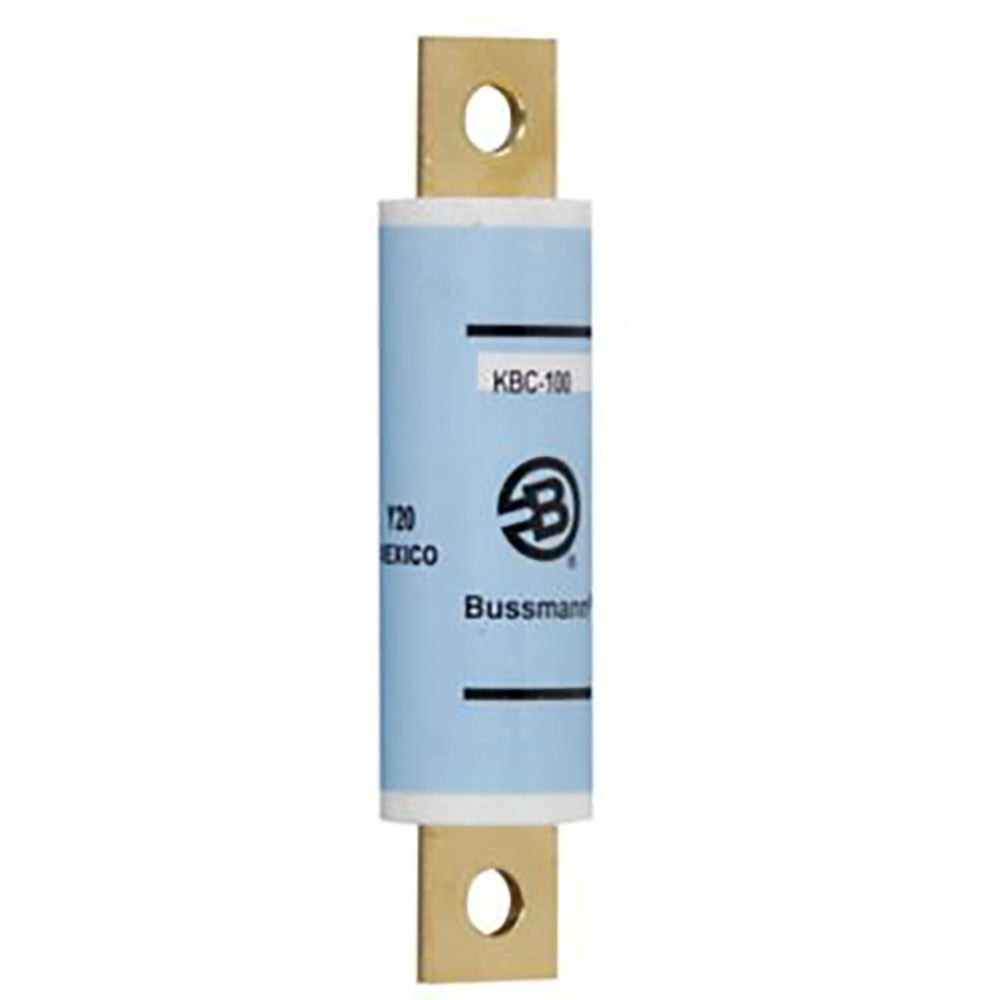

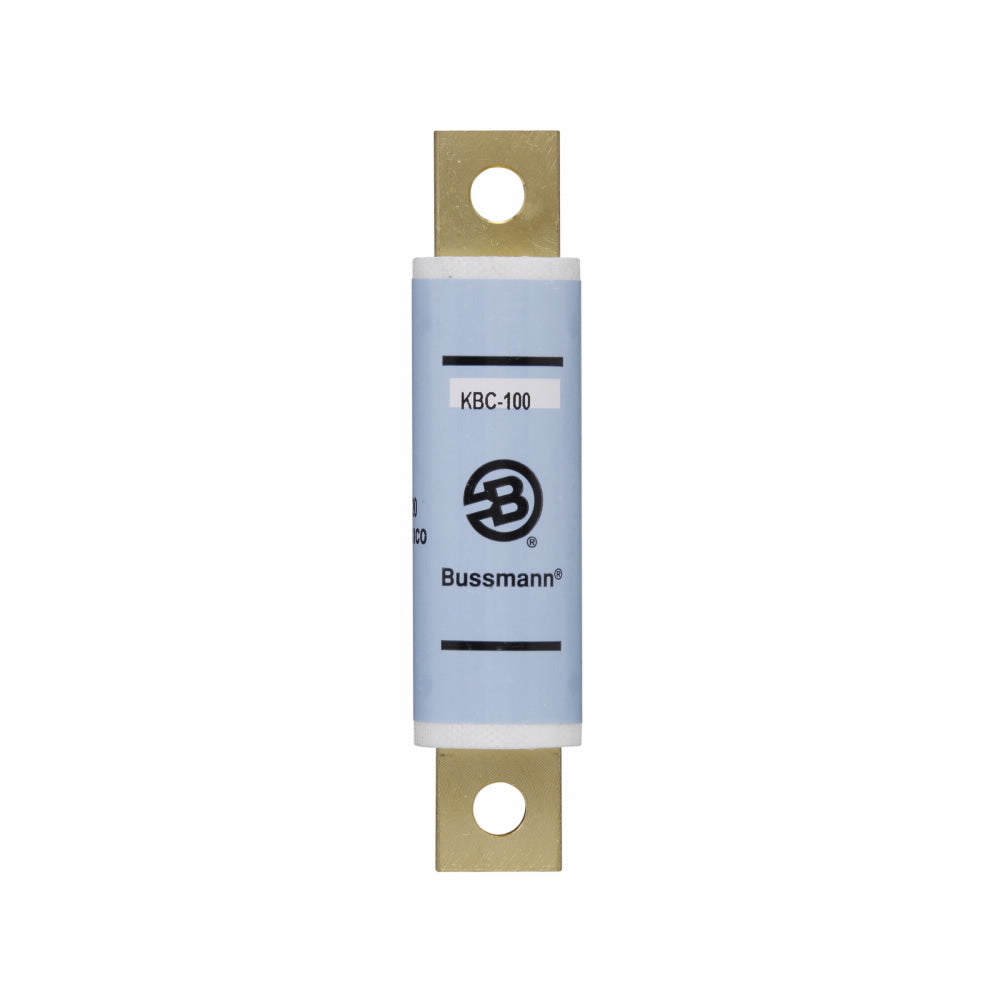

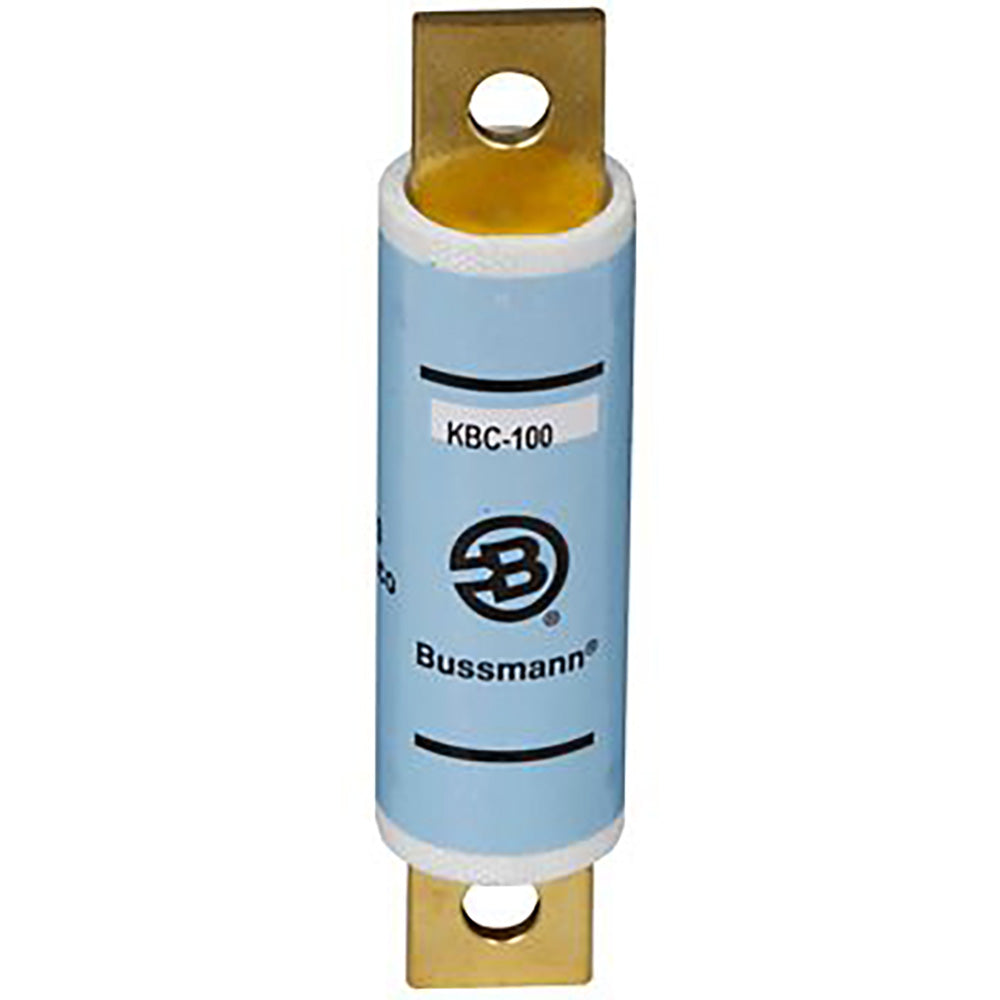

Cooper Bussmann KBC-100 is a low-voltage current-limiting fuse designed for industrial circuit protection with a 200kA interrupting capacity at 600V AC. The fuse features a 100A current rating and stud-type connection in a compact 4-13/32" body with 1" diameter, constructed for reliable operation in demanding environments. It meets multiple certifications including UL Recognition (File 60314), CSA (LR12636), and CE compliance per Guide JFHR2 standards. Typical applications include motor control centers, switchgear, and power distribution systems requiring high fault current protection.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse with single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 4-13/32" length x 1" diameter
• Standards: UL Recognized (File 60314), CSA Certified (LR12636), CE, Guide JFHR2
• Applications: Motor controls, switchgear, industrial power distribution
• AIC rating: 200kA@600V
• Connection: Stud
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 05171249100
• GTIN: 00051712491006
