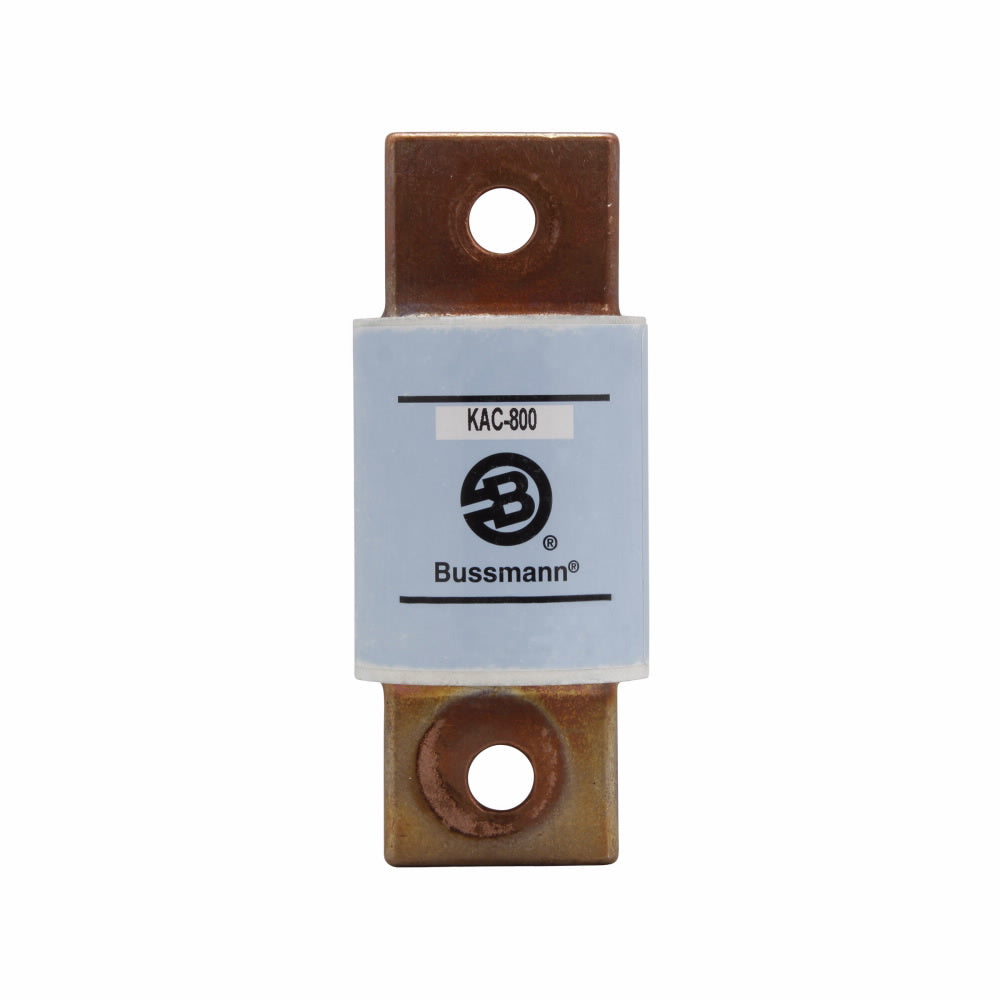

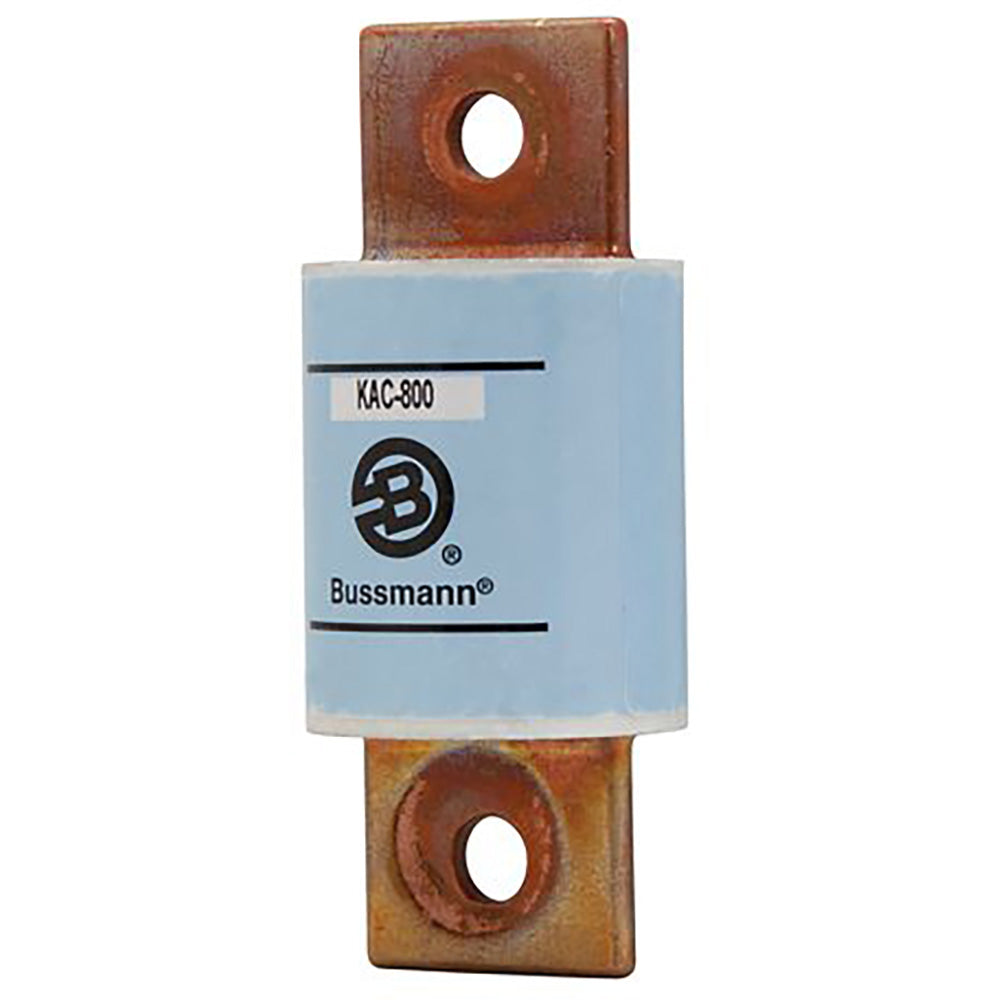

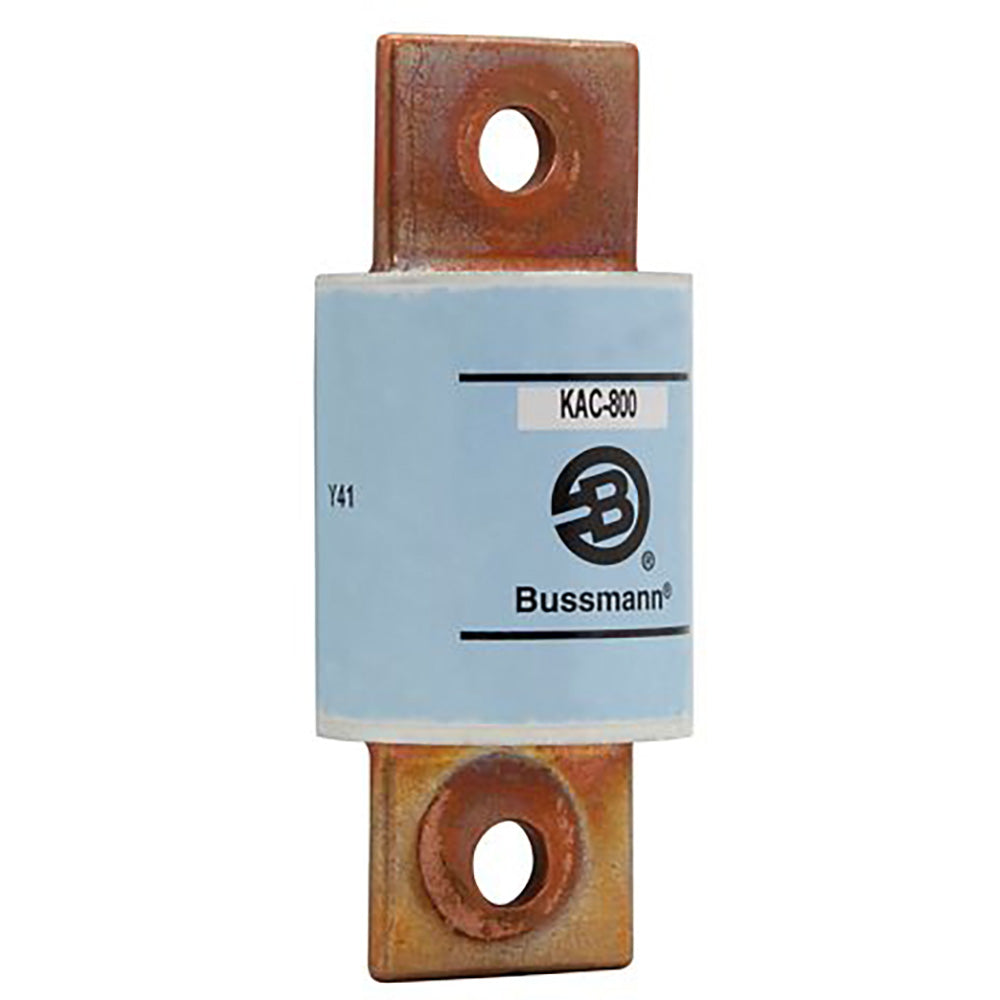

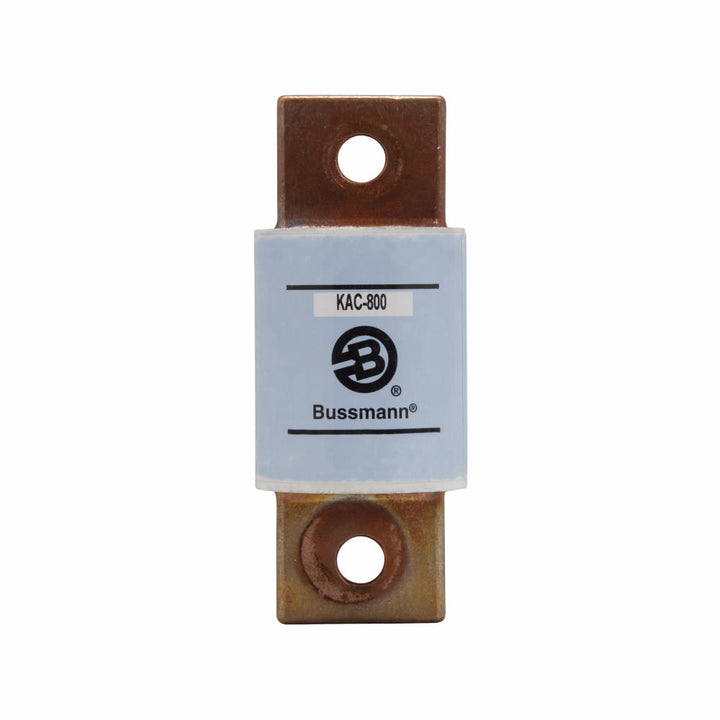

Cooper Bussmann KAC-800 - Low Voltage Fuse 800A (200kA AIC @ 600V)

Cooper Bussmann KAC-800 is a low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial power distribution systems. Rated for 600V AC/DC applications with a 800A current capacity, this stud-mounted fuse features a rugged construction with a 6.25-inch length and 2.5-inch diameter barrel. UL Recognized and CE Marked, it delivers 200kA interrupting capacity at 600V for reliable short-circuit protection in motor control centers, switchgear, and heavy industrial equipment.

Key Features & Specifications

• Type: KAC series current-limiting fuse with silver-sand construction
• Voltage Rating: 600V AC/DC
• Current Rating: 800A
• Dimensions: 6.25" L x 2.5" diameter
• Weight: 2 lb
• Connection: Stud terminal
• Barrels: 1
• AIC Rating: 200kA @ 600V
• Certification: UL Recognized, CE Marked
• Applications: Industrial power distribution, motor protection, switchgear

Product Identification

• UPC: 051712478007
• GTIN: 00051712478007
