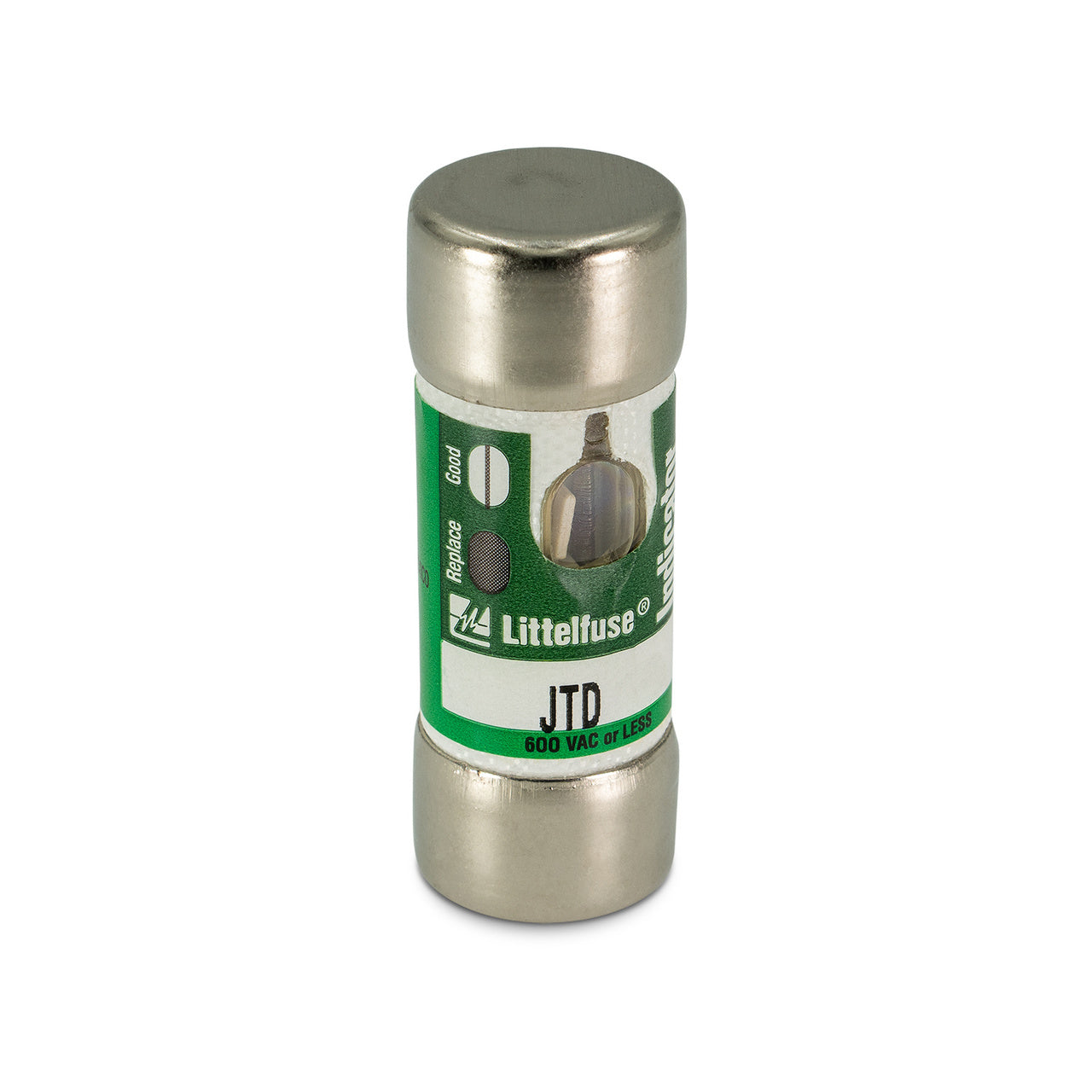

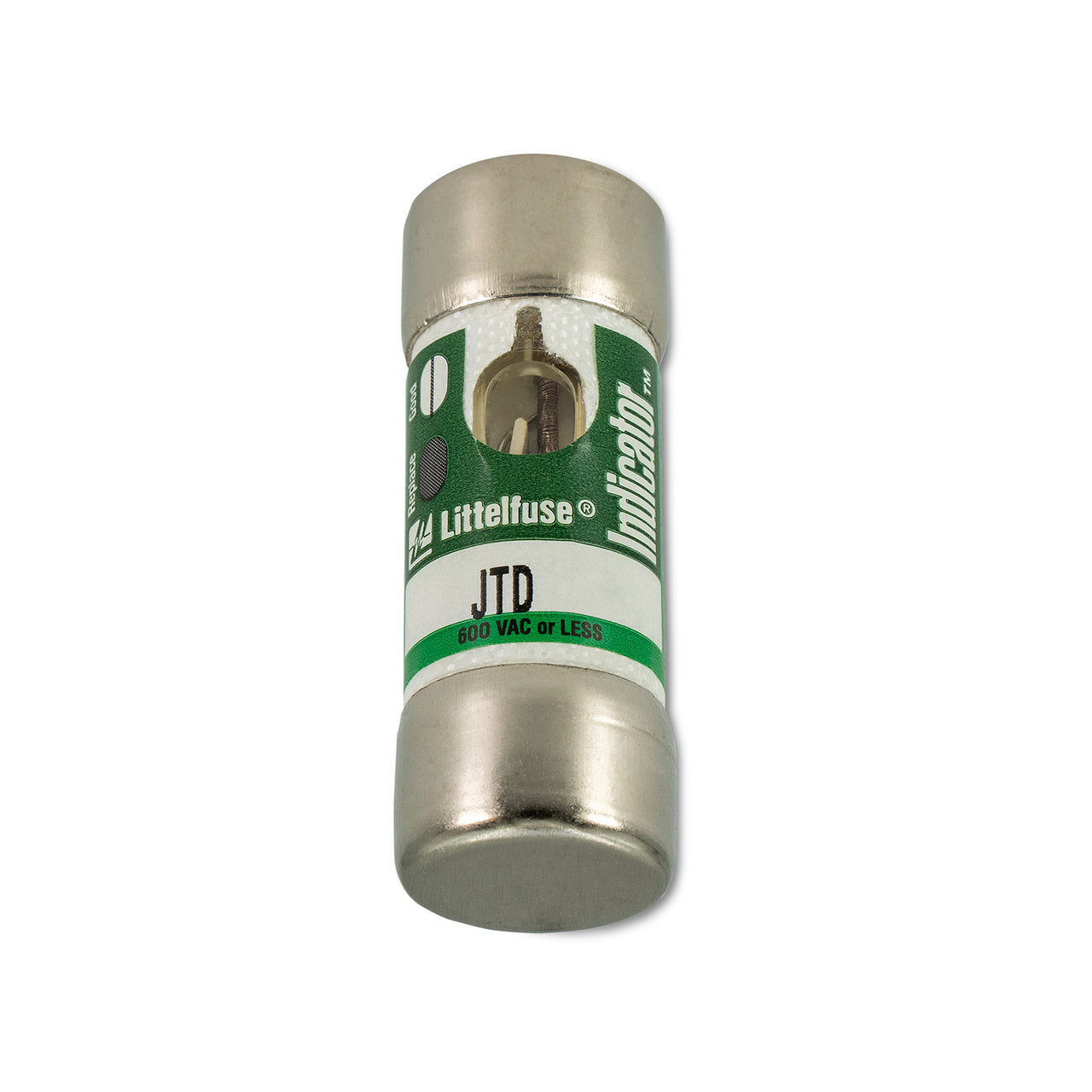

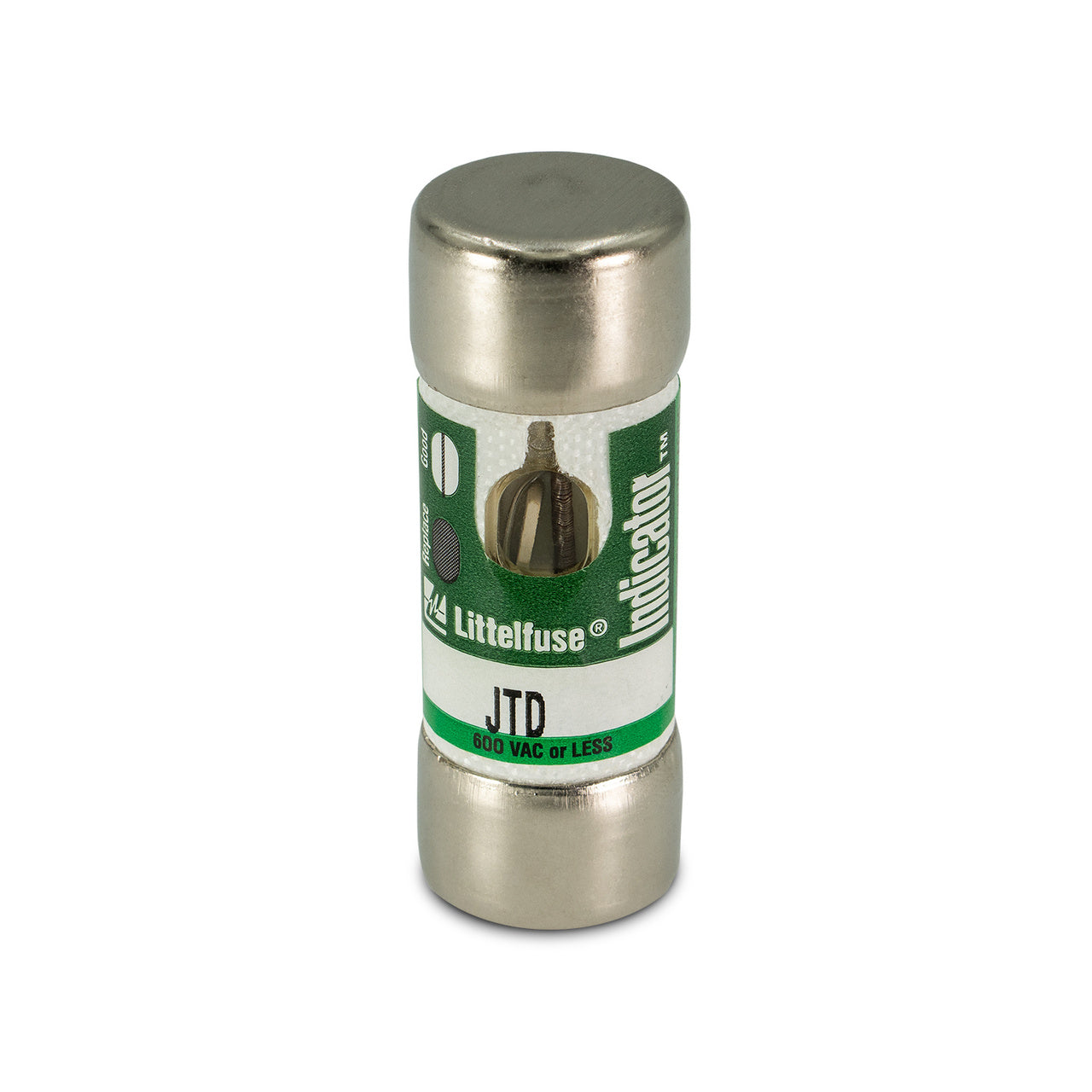

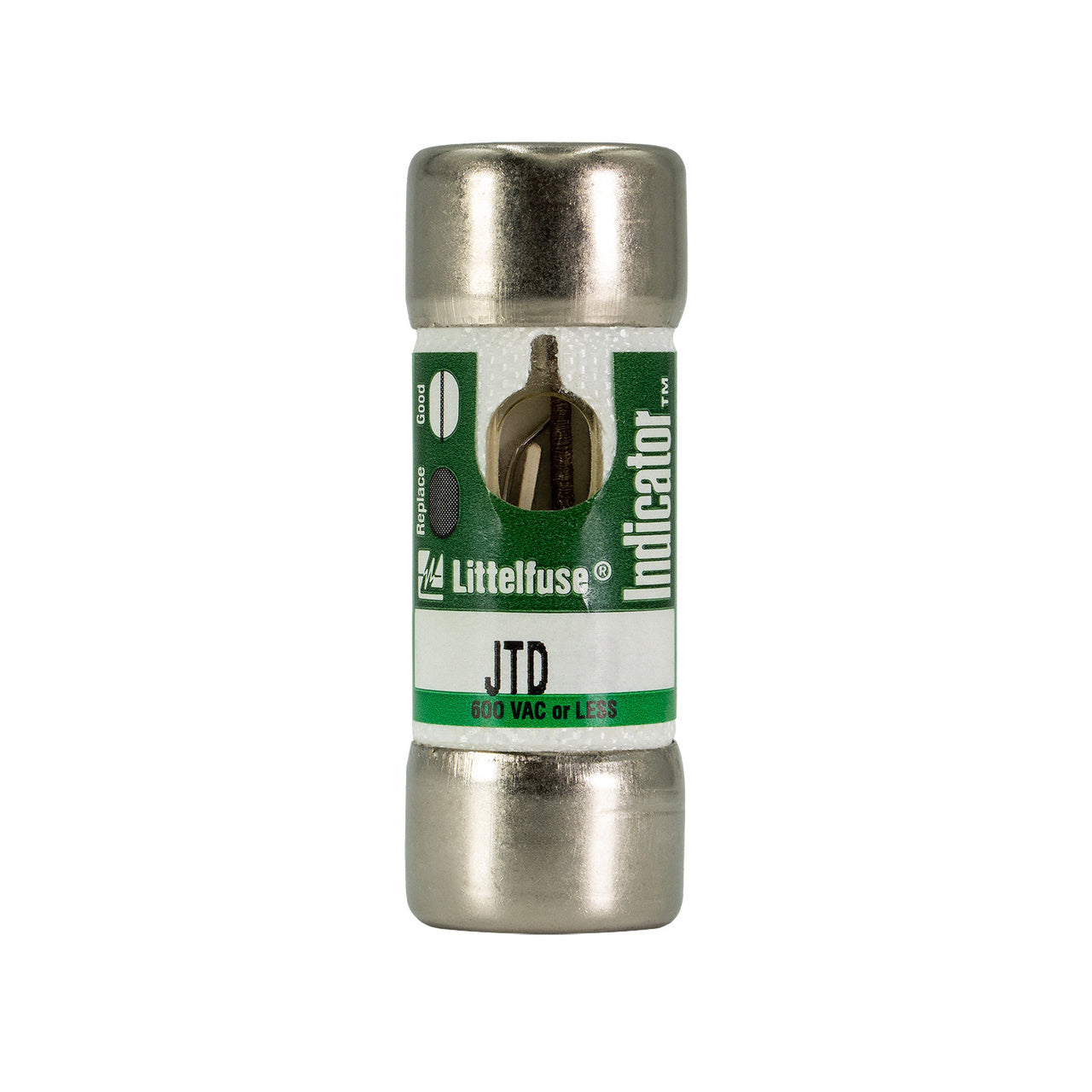

Littelfuse JTD-005ID - Time-Delay Fuse 5A 600V (UL/CSA Certified)

Littelfuse JTD-005ID is a low-voltage time-delay fuse designed for overcurrent protection in industrial control circuits. It features a 600V AC/DC voltage rating and a 5A current rating, with a compact 10.3mm diameter ceramic body construction for durability in harsh environments. The fuse meets UL/CSA standards for circuit protection and is commonly used in motor control centers, transformers, and power distribution systems. Its time-delay characteristics allow temporary inrush currents while providing reliable protection against sustained overloads.

Key Features & Specifications

• Type: Time-delay ceramic tube fuse with sand-filled construction
• Voltage Rating: 600V AC/DC
• Current Rating: 5A
• Dimensions: 10.3mm diameter x 38.1mm length
• Standards: UL 248-14, CSA C22.2 No. 248.14
• Applications: Motor controls, transformers, industrial power distribution
• Fuse Class: JTD (Time-delay)
• Interrupt Rating: 200kA at 600V AC
• Operating Temperature: -55°C to +125°C
• Mounting: Clip-mounted

Product Identification

• UPC: 07945802579
