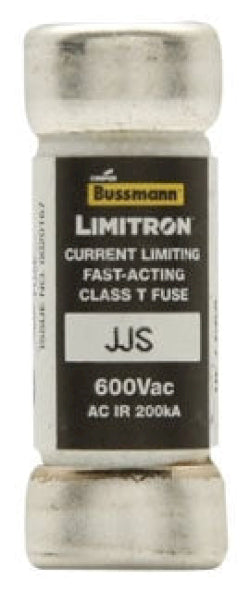

Bussmann JJS-2 - Class T Fuse 2A 600V (200kA AIC Rating)

The Bussmann JJS-2 is a Class T low-voltage fuse designed for high-interrupting capacity circuit protection in industrial applications. It features a 600V AC voltage rating with a 2A current rating, providing reliable overcurrent protection with a 200kA interrupting rating at 600V. The fuse construction includes a single-barrel design measuring 1-1/2 inches in length with a 0.56-inch diameter and weighs 1 lb, built for durable performance in demanding environments. It complies with CE, UL-248-15 Guide JDDZ, and CSA Class 1422-02 standards, ensuring adherence to industry safety requirements. Typical applications include protection of motors, transformers, and feeders in industrial power distribution systems where high fault current interruption is critical.

Key Features & Specifications

• Type: Class T low-voltage fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 2A
• Dimensions: 1-1/2 inch length, 0.56 inch diameter
• Weight: 1 lb
• Standards: CE, UL-248-15 Guide JDDZ, CSA Class 1422-02
• Applications: Industrial motor protection, transformer circuits, feeder protection
• AIC rating: 200kA@600V
• Class Rating: T
• Barrels: 1
• Family: T-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712628143
• GTIN: 00051712628143
