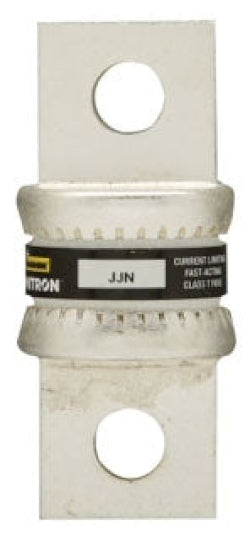

Bussmann JJN-175 - Class T Time-Delay Fuse 175A 300V (200kA AIC)

Bussmann JJN-175 is a T-Tron time-delay fuse designed for industrial circuit protection in low voltage applications. It provides reliable overcurrent protection with a 175A current rating and 300V voltage rating, featuring a 200kA interrupting capacity at rated voltage for high fault current conditions. The fuse construction includes a single-barrel design with 0.88-inch diameter and 2-7/16-inch length, manufactured to meet UL 248-15 and CSA Class 1422-02 standards. This Class T fuse is certified for industrial power distribution systems, motor branch circuits, and equipment protection where time-delay characteristics prevent nuisance tripping during temporary overloads.

Key Features & Specifications

• Type: Time-delay fuse, single barrel, industrial protection
• Voltage Rating: 300V AC
• Current Rating: 175A
• Dimensions: 2-7/16 in length, 0.88 in diameter
• Standards: UL 248-15, CSA Class 1422-02, CE certified
• Applications: Industrial power distribution, motor protection, equipment circuits
• AIC rating: 200kA@300V
• Class Rating: T
• Barrels: 1
• Weight: 1 lb
• Family: T-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712627177
• GTIN: 00051712627177
