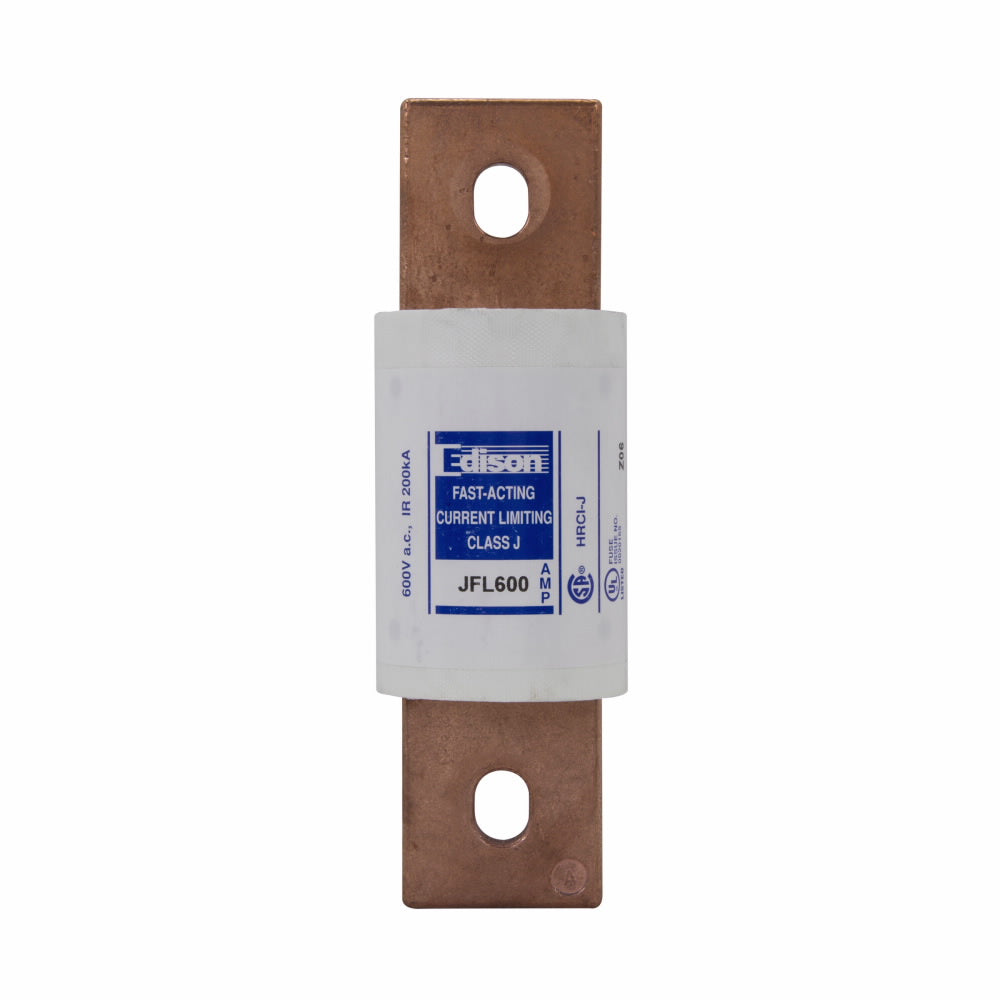

Edison Fuses JFL600 - Class J Fuse 600A (200kA AIC @600V)

Edison Fuses JFL600 is a low-voltage bolt-in fuse designed for high-current circuit protection in industrial applications. Rated for 600V AC/DC systems with a 600A current capacity, it features a Class J construction with a 200kA interrupting rating at 600V for reliable fault protection. The fuse measures 8" x 2.5" x 2.5" (LxWxH) with a 6" clip center spacing and 2.5" diameter barrel, constructed for bolt-in panel mounting. It complies with industry standards for Class J fuses and is typically used in motor control centers, switchgear, and industrial power distribution systems.

Key Features & Specifications

• Type: JFL Class low-voltage current-limiting fuse
• Voltage Rating: 600V AC/DC
• Current Rating: 600A
• Dimensions: 8" L x 2.5" W x 2.5" H
• Weight: 3 lb
• Diameter: 2.5"
• Connection: Bolt-In
• Barrels: 1
• AIC rating: 200kA@600V
• Clip Center: 6"
• Class Rating: J
• Standards: UL/CSA Class J
• Applications: Industrial power distribution, motor protection, switchgear

Product Identification

• UPC: 78263480908
• GTIN: 00782634809081
