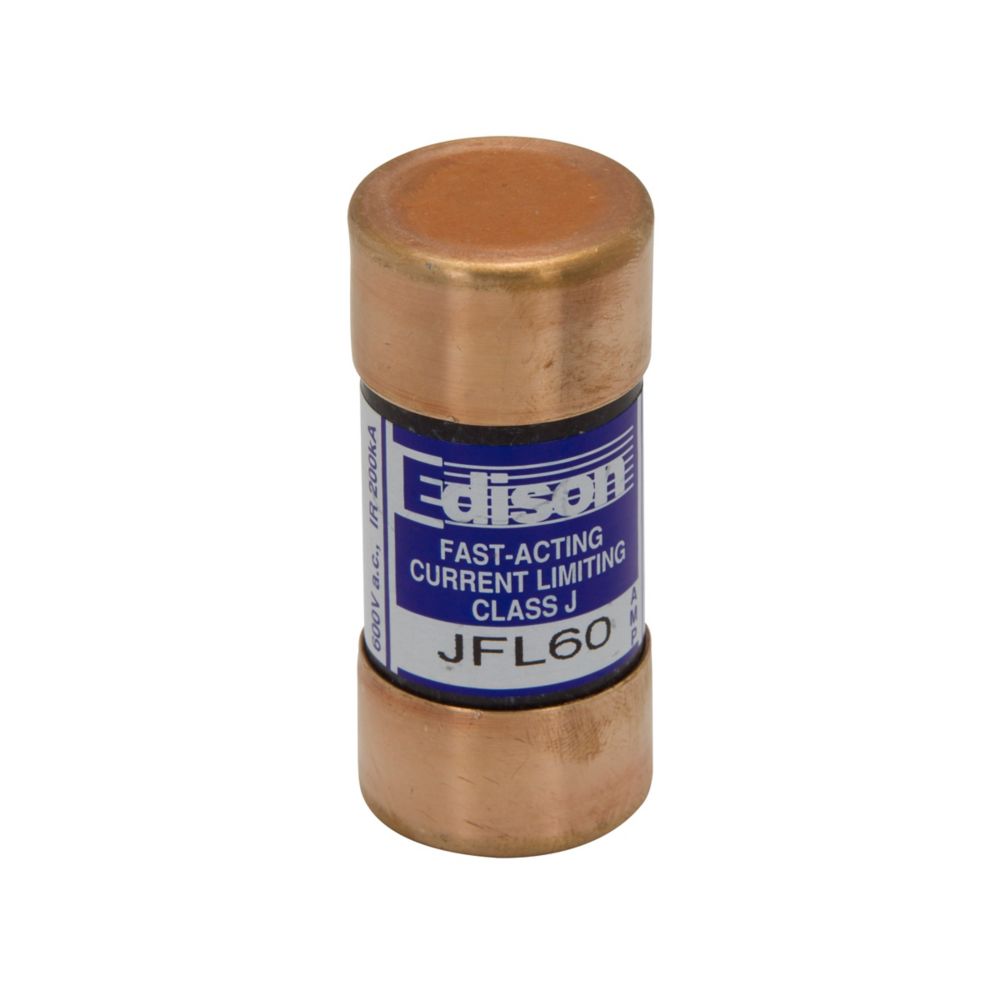

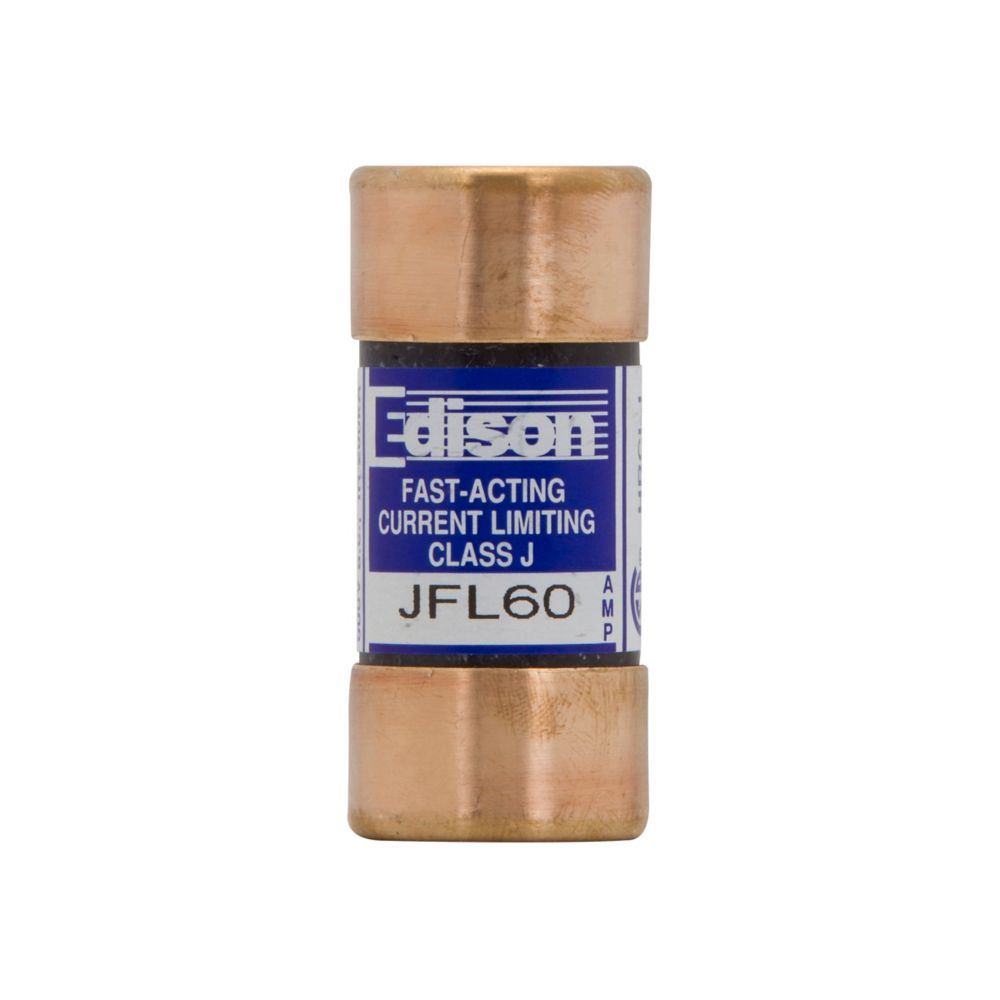

Eaton JFL60 - Current-Limiting Fuse 600V AC (200kA AIC Rating)

Eaton JFL60 is a low-voltage current-limiting fuse designed for short-circuit protection in industrial power distribution systems. It features a 600V AC voltage rating with current ratings from 60A to 600A, housed in a durable cylindrical body constructed with precision-engineered silver-sand elements for reliable arc quenching. The fuse meets UL 248-12 and CSA standards for branch circuit protection, with a 200kA interrupting rating for high-fault environments. Typical applications include motor control centers, switchgear, and transformer protection where rapid fault clearing is critical.

Key Features & Specifications

• Type: Current-limiting fuse with silver-sand element construction
• Voltage Rating: 600V AC
• Current Rating: 60A-600A (multiple ratings available)
• Dimensions: 3.5" length x 1.5" diameter (88.9mm x 38.1mm)
• Standards: UL 248-12, CSA certified
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: 200kA
• Class Rating: J
• Mounting: Blade terminal
• Operating Temperature: -40°C to 75°C
• Interrupting Rating: 200,000A RMS symmetrical
• Item Subcategory: Low Voltage
