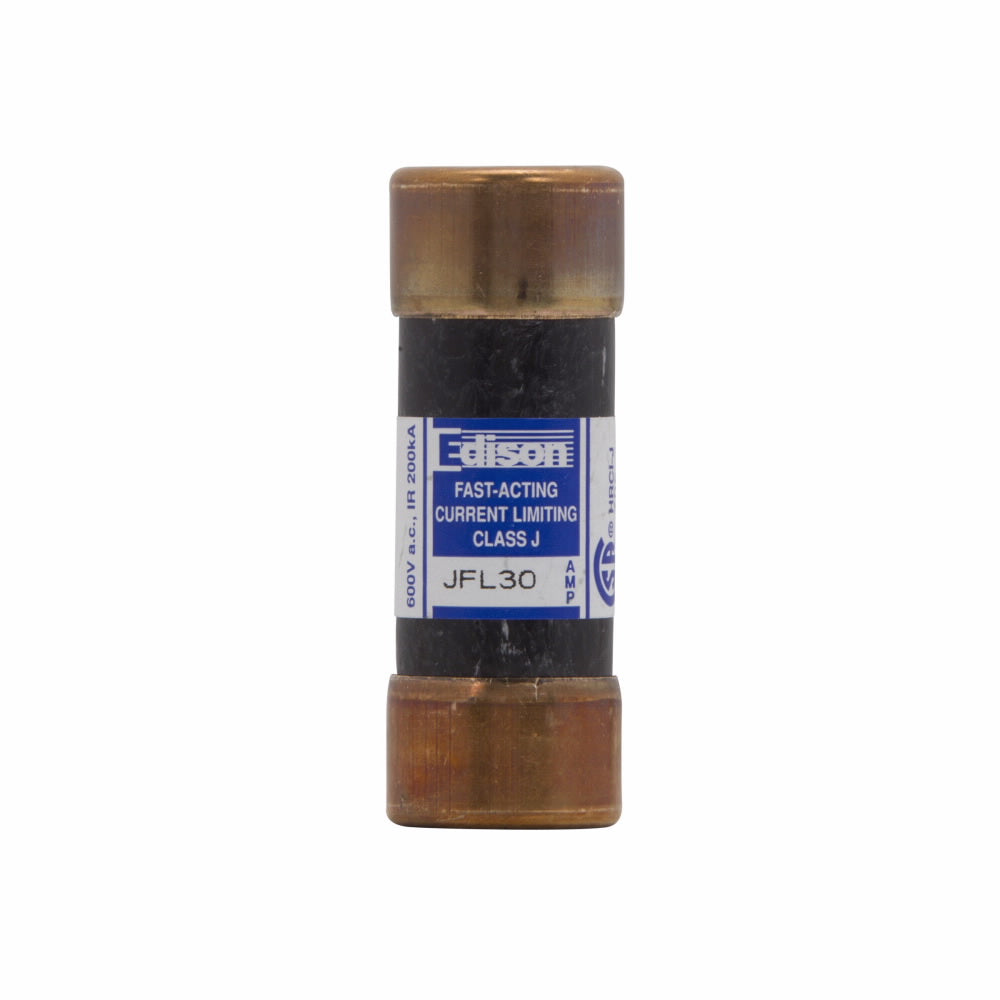

Edison Fuses JFL30 - Class J Fuse 30A 600V (200kA AIC)

Edison Fuses JFL30 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 30A current capacity and 200kA interrupting capacity at 600V for reliable short-circuit protection. The compact ferrule-style fuse measures 2.25" × 0.81" × 0.81" (57.15mm × 20.57mm × 20.57mm) with a single-barrel construction weighing 1.11 lb, meeting UL/CSA standards for Class J fuses. Its time-delay characteristics make it suitable for motor circuits, transformers, and feeder protection in commercial and industrial power distribution systems.

Key Features & Specifications

• Type: Class J time-delay fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 2.25" L × 0.81" W × 0.81" H (57.15mm × 20.57mm × 20.57mm)
• Standards: UL/CSA Class J compliant
• Applications: Motor circuits, transformers, feeder protection
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Diameter: 0.81" (20.57mm)
• Weight: 1.11 lb
• Class Rating: J

Product Identification

• UPC: 078263480888
• GTIN: 00782634808886
