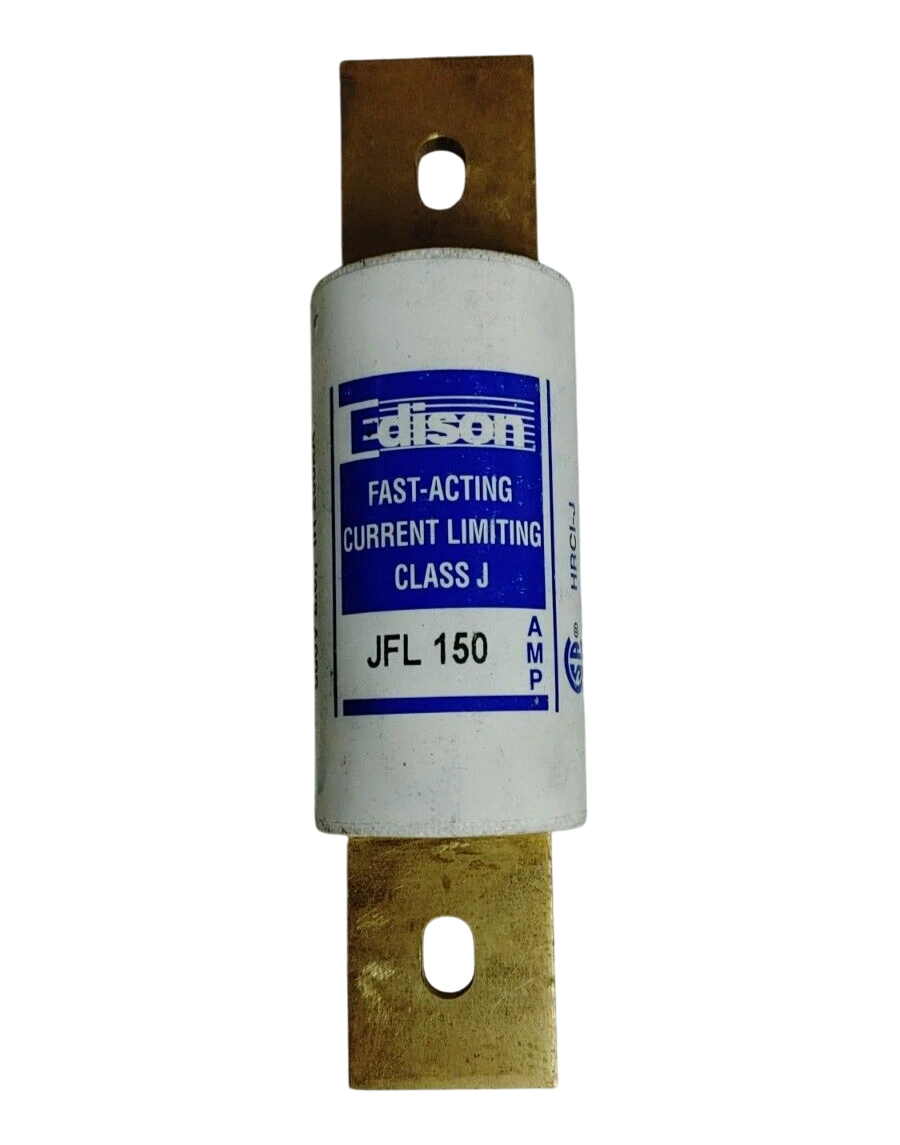

Edison Fuses JFL150 - Class J Fuse 150A 600V (200kA AIC)

Edison Fuses JFL150 is a Class J low-voltage fuse designed for high-interrupting circuit protection in industrial electrical systems. It features a 600V AC rating with a 150A current capacity and 200kA interrupting rating at 600V for reliable fault current protection. The bolt-in fuse measures 5.75" × 1.5" × 1.5" (L×W×H) with a 1.5" diameter barrel and 4.38" clip center spacing, constructed to UL/CSA standards. Compliant with Class J fuse requirements, it provides time-delay characteristics for motor circuit protection. Typical applications include industrial control panels, motor starter circuits, and power distribution equipment requiring 600V protection.

Key Features & Specifications

• Type: Class J time-delay fuse, bolt-in configuration
• Voltage Rating: 600V AC
• Current Rating: 150A
• Dimensions: 5.75" L × 1.5" W × 1.5" H
• Weight: 1.001 lb
• Diameter: 1.5"
• Connection: Bolt-in terminal
• AIC Rating: 200kA @ 600V
• Clip Center: 4.38" spacing
• Standards: UL/CSA listed
• Applications: Motor circuits, industrial control panels, power distribution

Product Identification

• UPC: 782634809005
