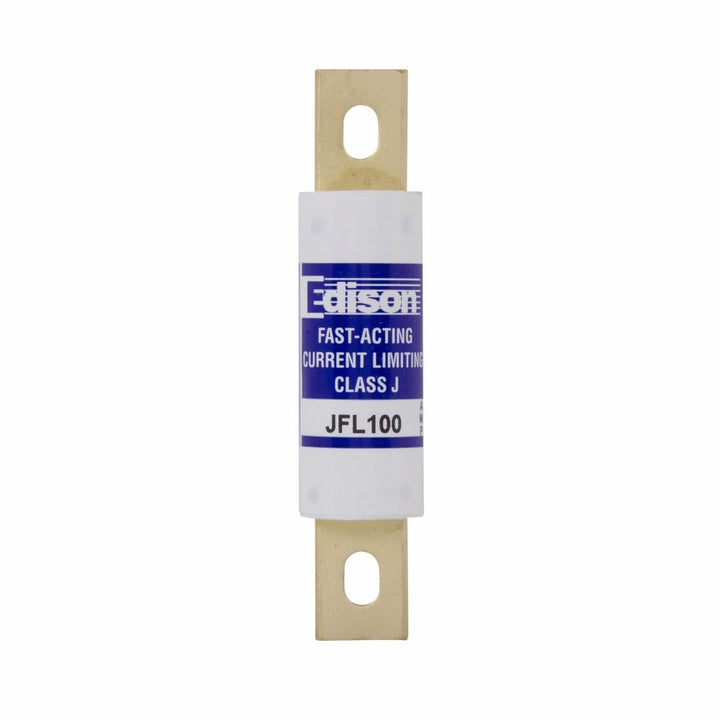

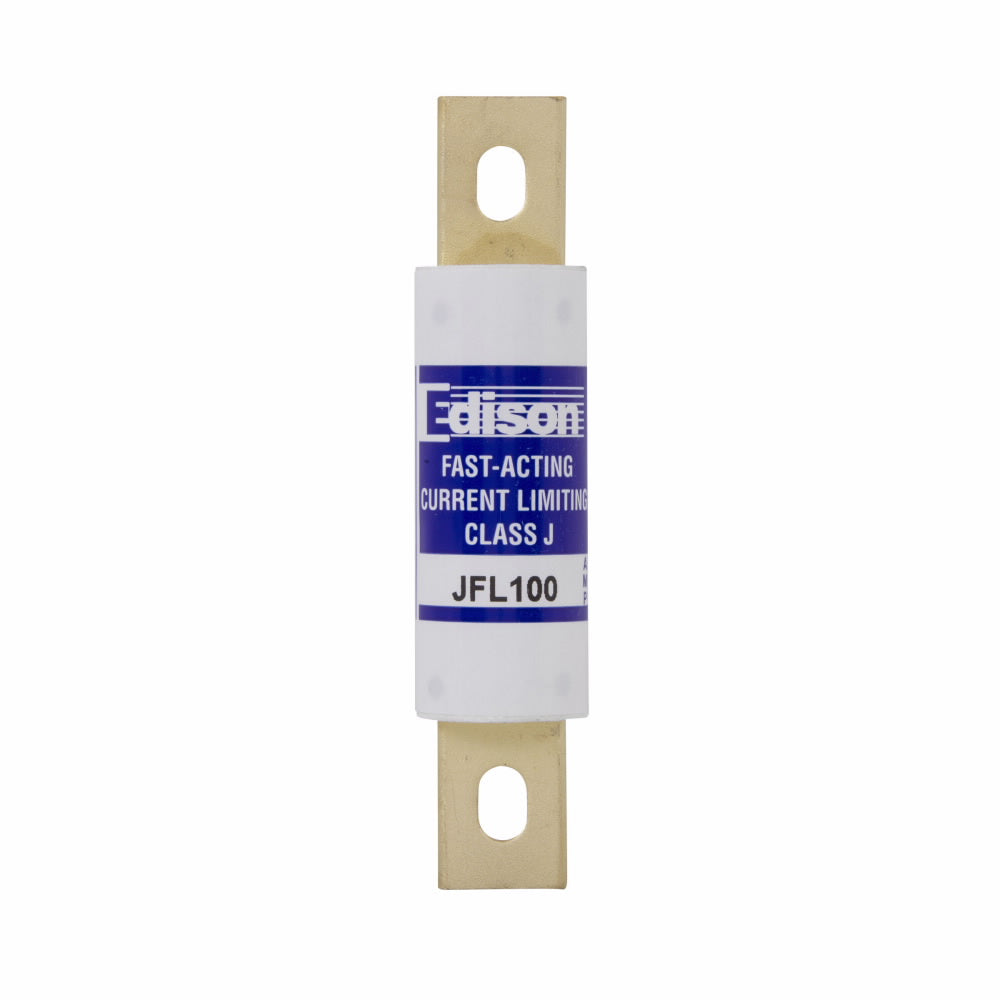

Edison Fuses JFL100 - Class J Fuse 100A 600V (200kA AIC)

Edison Fuses JFL100 is a Class J low-voltage fuse designed for high-interrupting circuit protection in industrial electrical systems. Rated for 600V AC/DC operation with a 100A current capacity, it features a compact bolt-in design measuring 4.63" in length and 1.13" in diameter with a 200kA interrupting rating at 600V. The single-barrel construction meets stringent industry standards for short-circuit protection in demanding environments. Typical applications include motor control centers, switchgear, and power distribution panels requiring reliable overcurrent protection.

Key Features & Specifications

• Type: Class J time-delay fuse with bolt-in connection
• Voltage Rating: 600V AC/DC
• Current Rating: 100A
• Dimensions: 4.63"L x 1.13"W x 1.13"H (117.6mm x 28.7mm x 28.7mm)
• Standards: UL/CSA listed
• Applications: Industrial motor protection, power distribution
• AIC rating: 200kA@600V
• Connection: Bolt-In
• Barrels: 1
• Clip Center: 3.63" (92.2mm)
• Weight: 1.27 lb (0.58 kg)
• Class Rating: J

Product Identification

• UPC: 78263480897
• GTIN: 00782634808978
