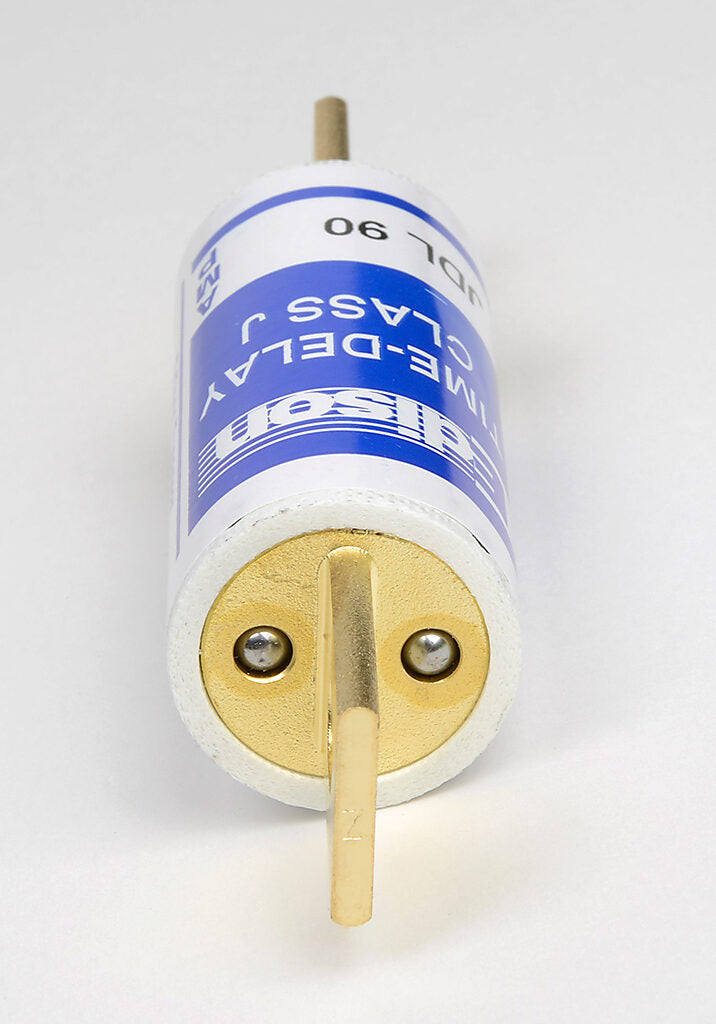

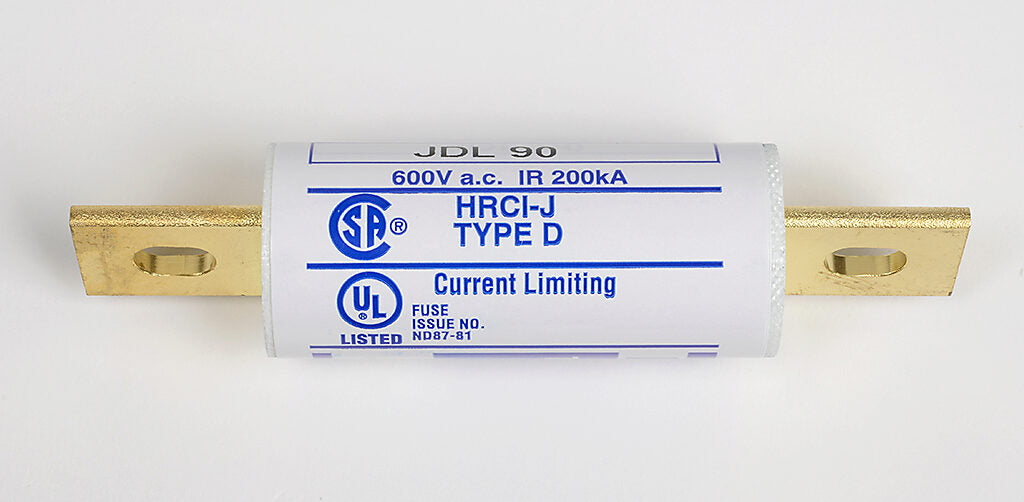

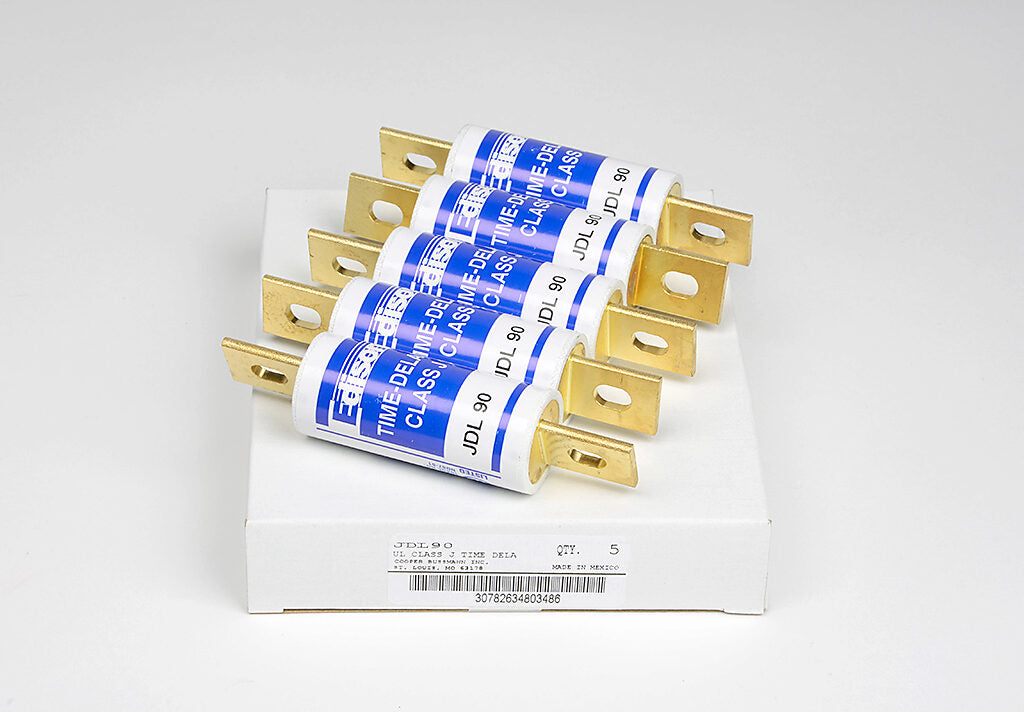

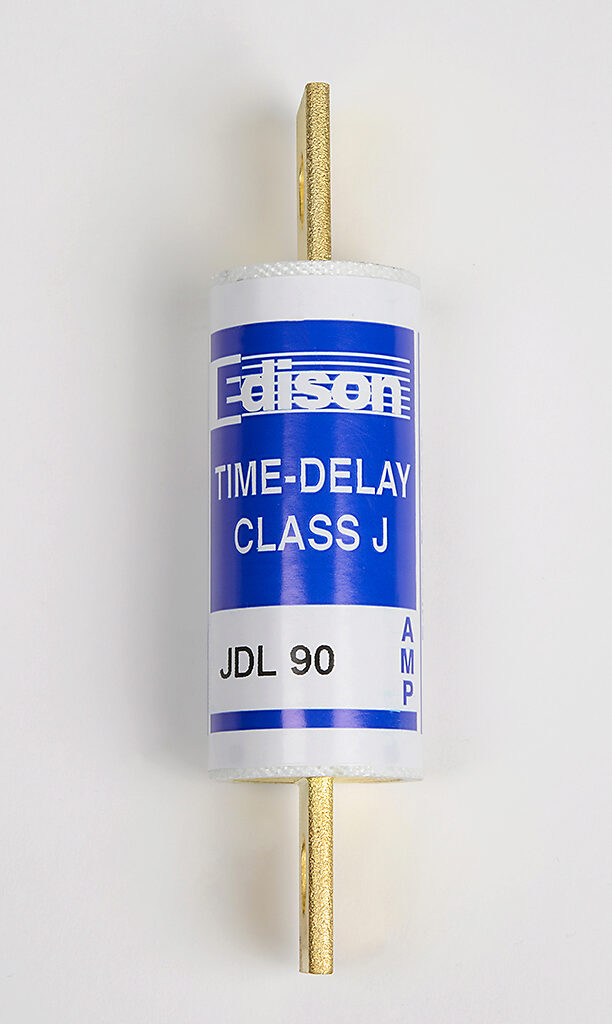

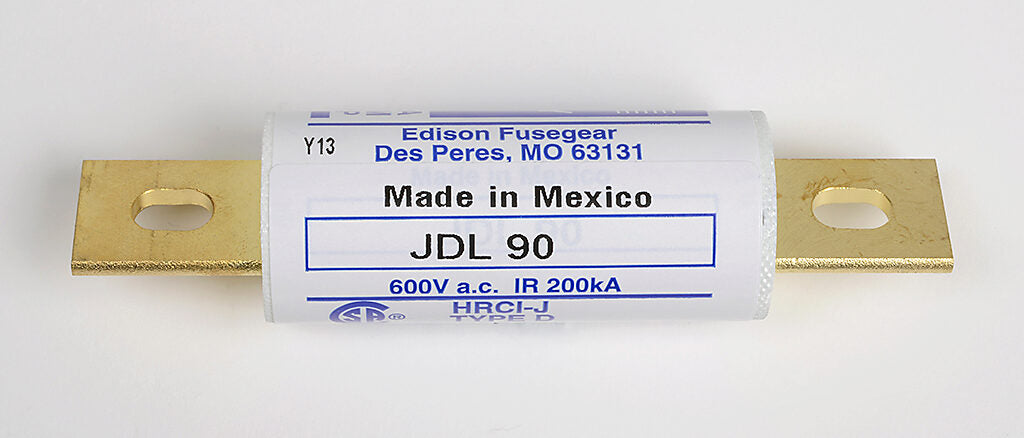

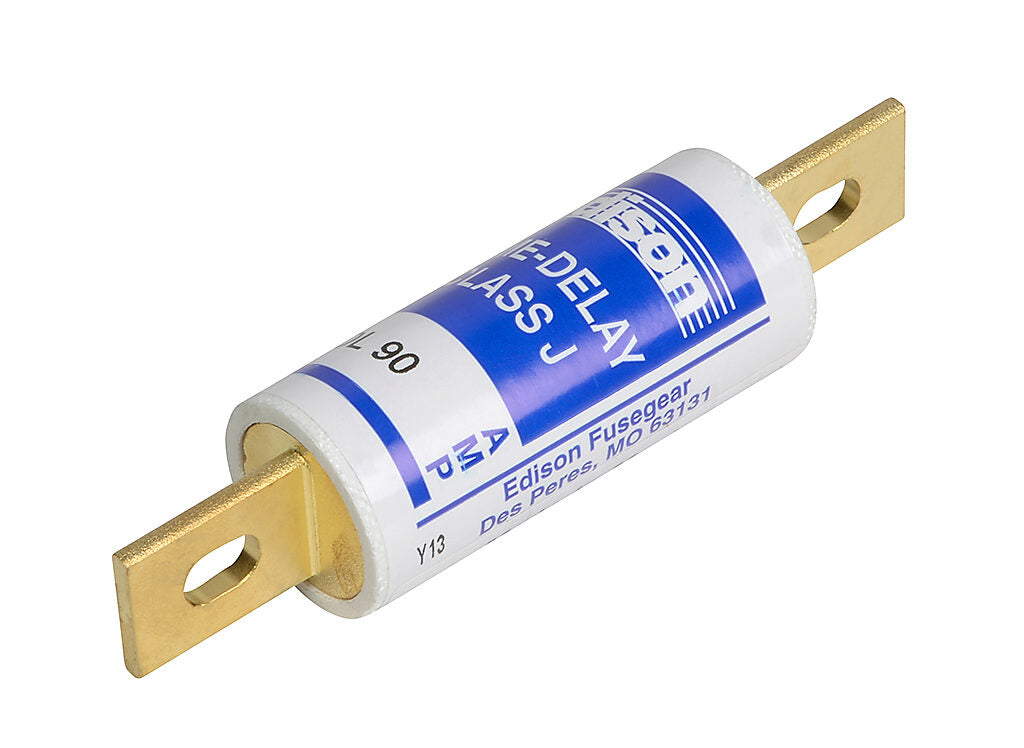

Edison Fuses JDL90 - Class J Fuse 90A 600V (300kA AIC)

Edison Fuses JDL90 is a Class J low-voltage fuse designed for high-interrupting circuit protection in industrial electrical systems. Rated for 600V AC with a 90A current capacity, it features a bolt-in blade connection and delivers 300kA interrupting capacity at rated voltage. The compact cylindrical design measures 4.63" in length with a 1.13" diameter, constructed for durable performance in demanding environments. Compliant with industry standards for Class J fuses, it provides reliable overcurrent protection for motor circuits, transformers, and heavy industrial equipment.

Key Features & Specifications

• Type: JDL Class time-delay fuse with single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 90A
• Dimensions: 4.63"L x 1.13"W x 1.13"H
• Weight: 2 lb
• Diameter: 1.13"
• Class Rating: J
• Connection: Bolt-In Blade
• Barrels: 1
• Velocity: D
• AIC rating: 300kA@600Vac
• Standards: UL/CSA listed Class J fuse
• Applications: Industrial motor protection, transformer circuits, power distribution

Product Identification

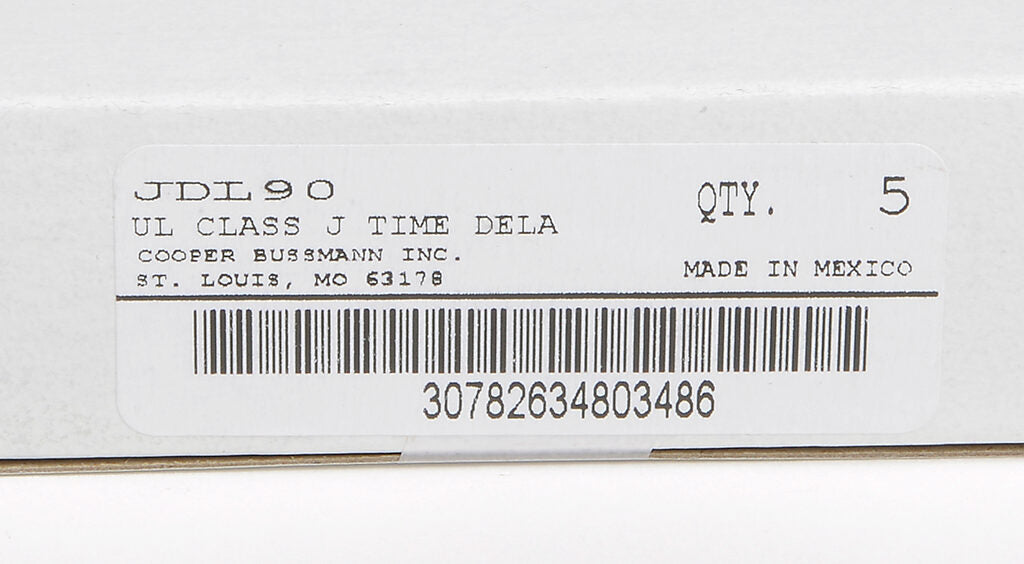

• UPC: 782634803485
• GTIN: 00782634803485
