Edison Fuses JDL80 - JDL Class Fuse 80A 600V (300kA AIC)

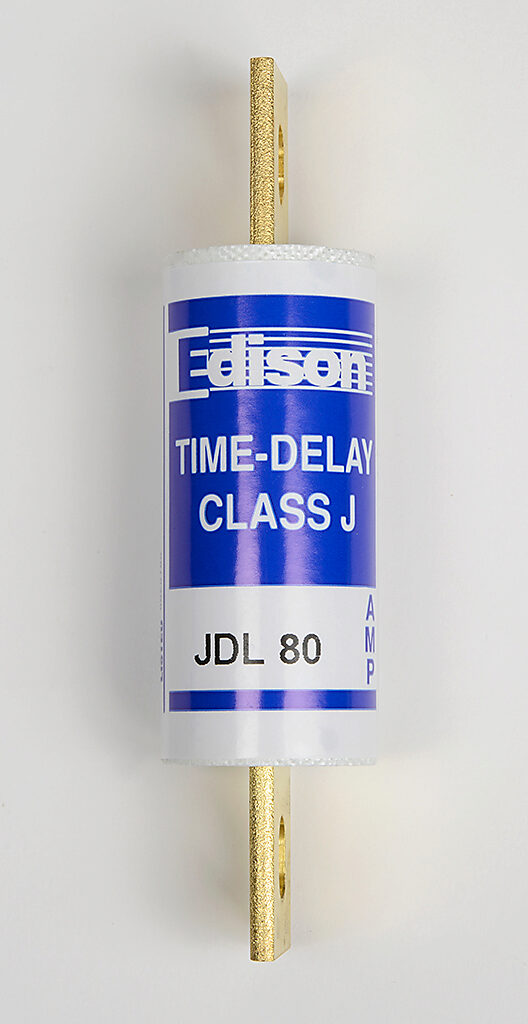

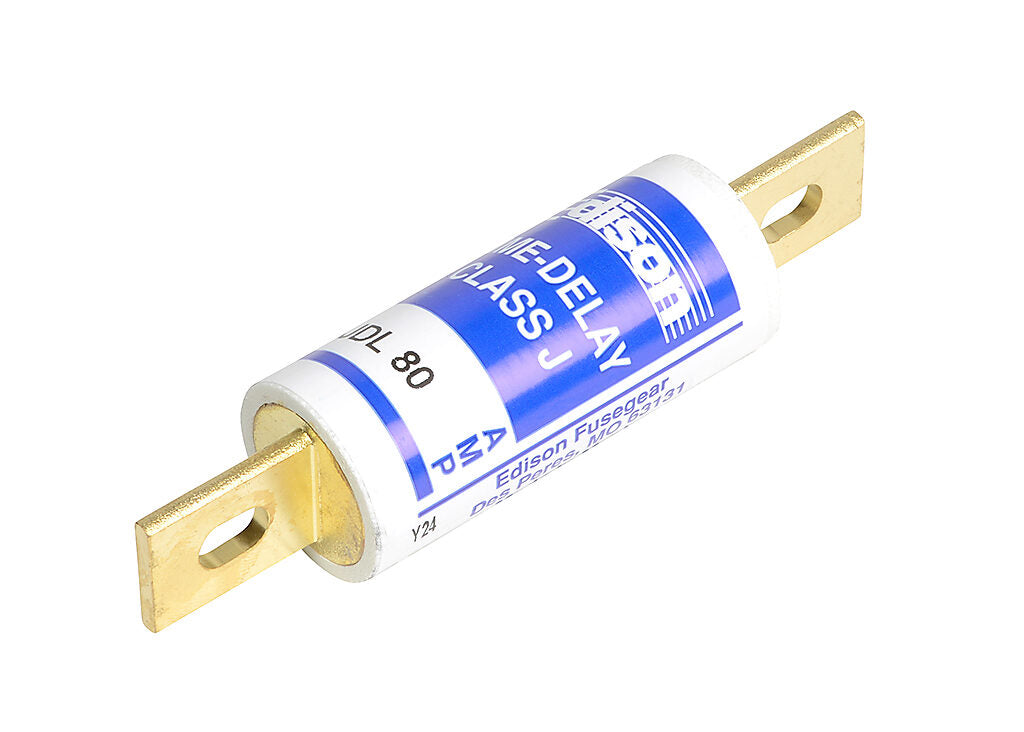

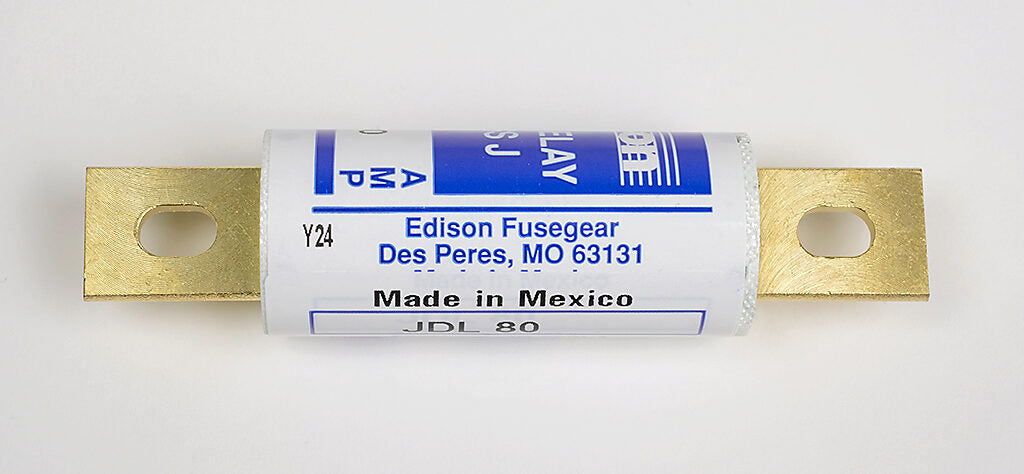

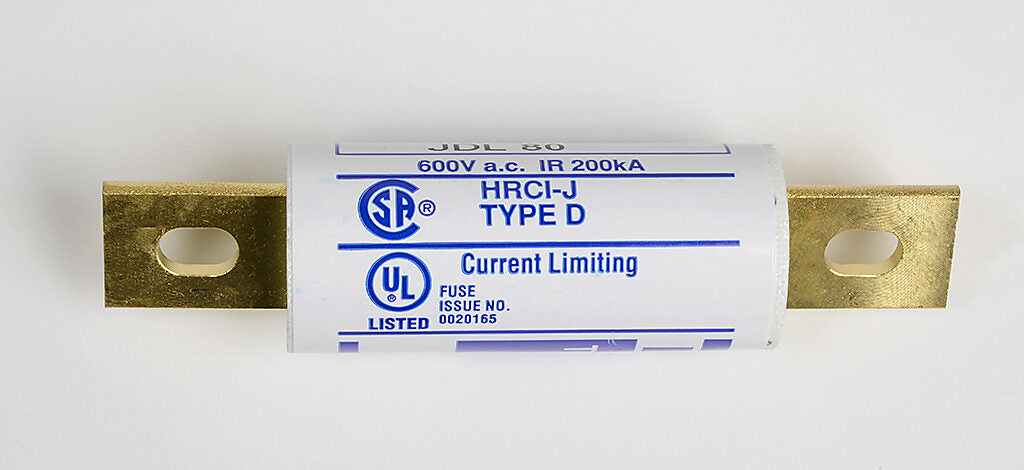

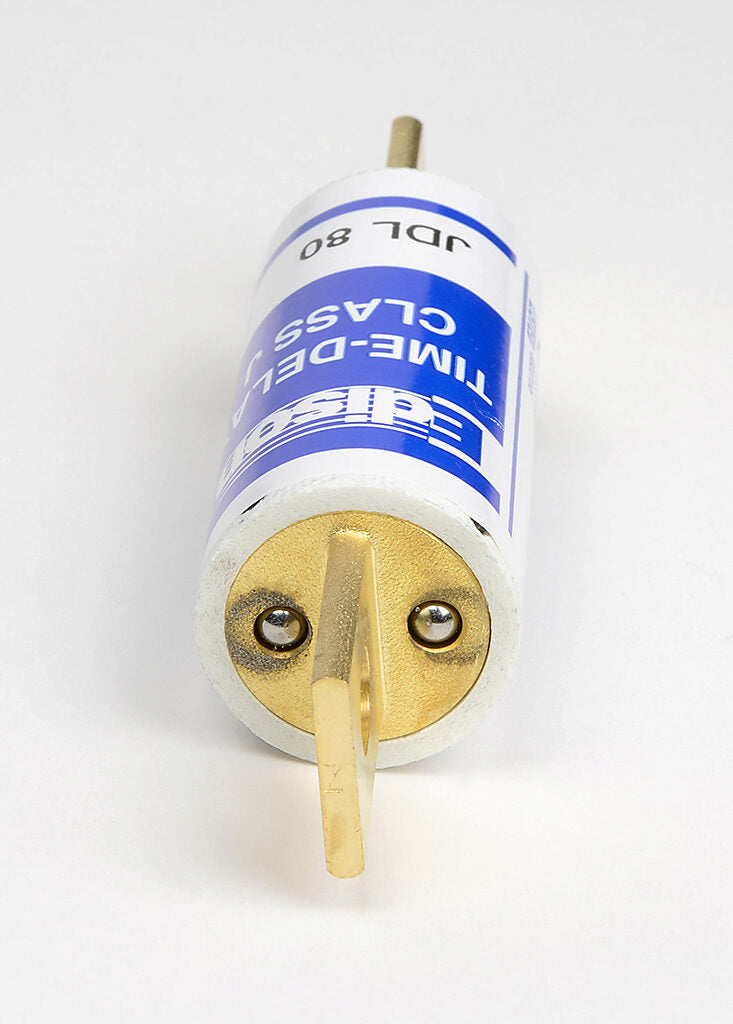

Edison Fuses JDL80 is a low-voltage fuse designed for circuit protection in industrial electrical systems. This Class J bolt-in blade fuse features a 600V AC rating and 80A current capacity with a high 300kA interrupting rating at 600V AC for reliable fault protection. The compact cylindrical design measures 4.63" in length and 1.13" in diameter with a bolt-in connection for secure installation. Compliant with industry standards for Class J fuses, it provides robust protection for motor circuits, transformers, and power distribution equipment in commercial and industrial applications.

Key Features & Specifications

• Type: JDL Class J time-delay fuse with bolt-in blade connection
• Voltage Rating: 600V AC
• Current Rating: 80A
• Dimensions: 4.63"L x 1.13"W x 1.13"H (117.6mm x 28.7mm x 28.7mm)
• Weight: 2 lb (0.91 kg)
• Diameter: 1.13" (28.7mm)
• Standards: Class J fuse compliance
• Applications: Motor protection, transformers, power distribution
• Connection: Bolt-In Blade
• Barrels: 1
• AIC rating: 300kA@600V AC
• Velocity: D

Product Identification

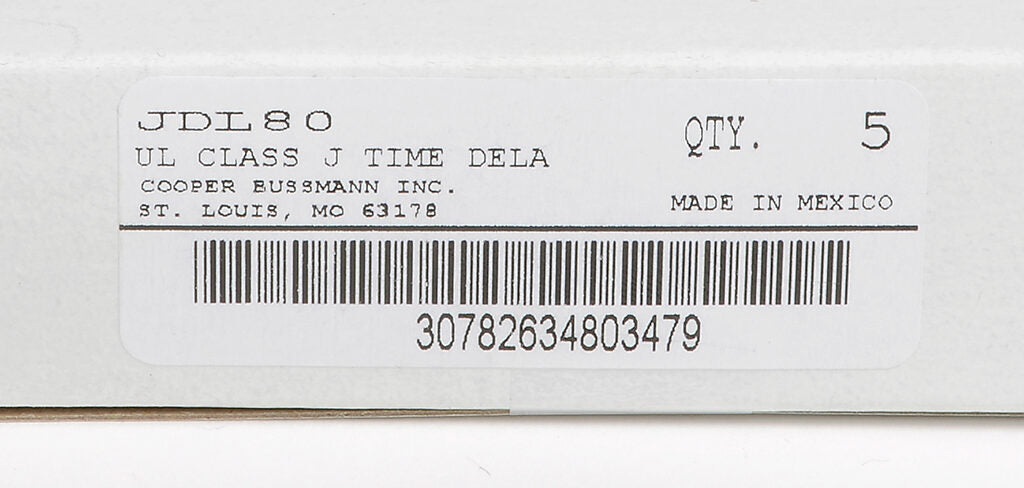

• UPC: 782634803478
• GTIN: 00782634803478
