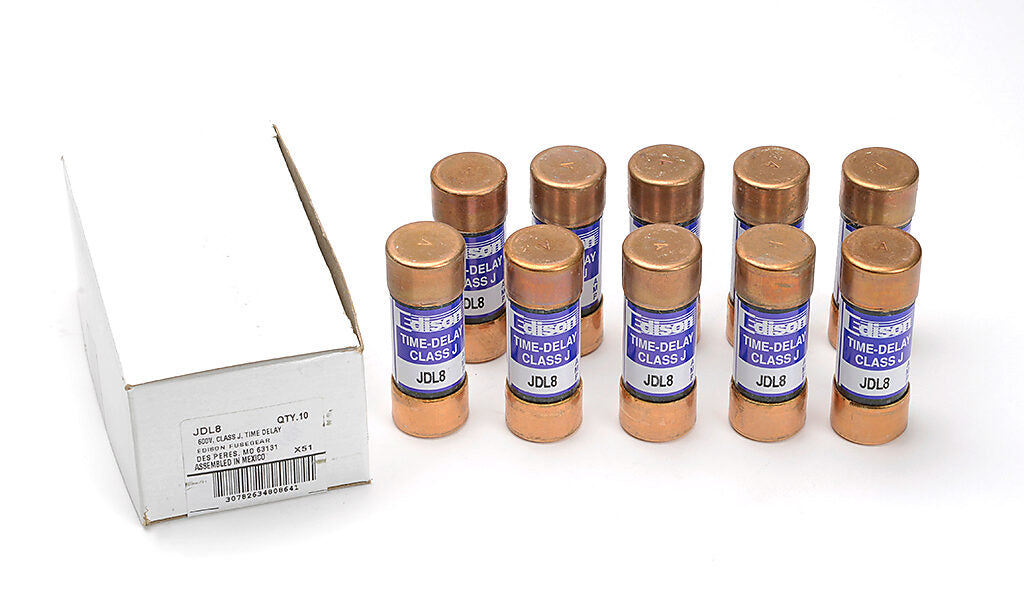

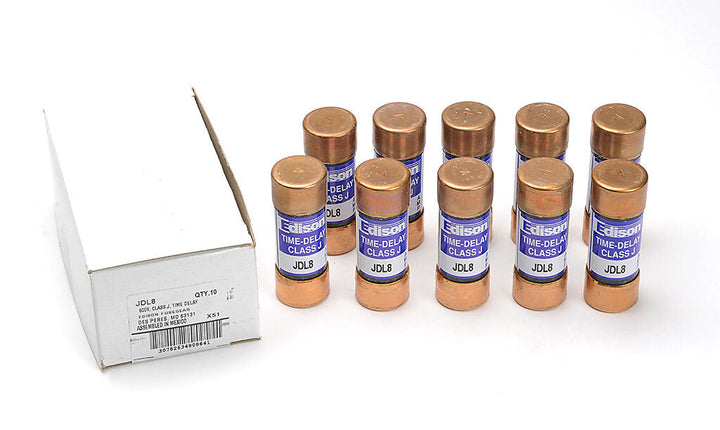

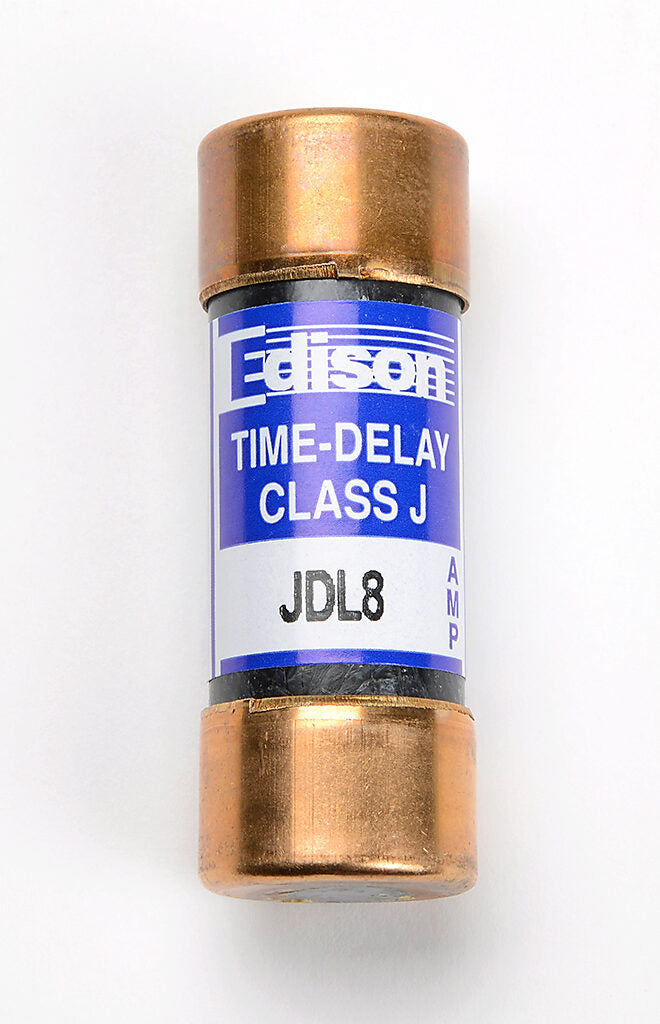

Edison Fuses JDL8 - JDL Class Fuse 8A 600V (300kA AIC)

Edison Fuses JDL8 is a low-voltage fuse designed for circuit protection in industrial electrical systems. This Class J fuse features a 600V AC rating with an 8A current capacity and a high interrupting rating of 300kA at 600V AC for reliable overcurrent protection. The compact ferrule-connected design measures 2.25" in length with a 0.81" diameter barrel, constructed to UL/CSA standards for safety compliance. Its fast-acting "D" velocity operation makes it suitable for protecting motors, transformers, and power distribution equipment where rapid fault clearing is critical.

Key Features & Specifications

• Type: JDL Class low-voltage current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 8A
• Dimensions: 2.25"L × 0.81"W × 0.81"H
• Weight: 2 lb
• Diameter: 0.81"
• Connection: Ferrule
• Barrels: 1

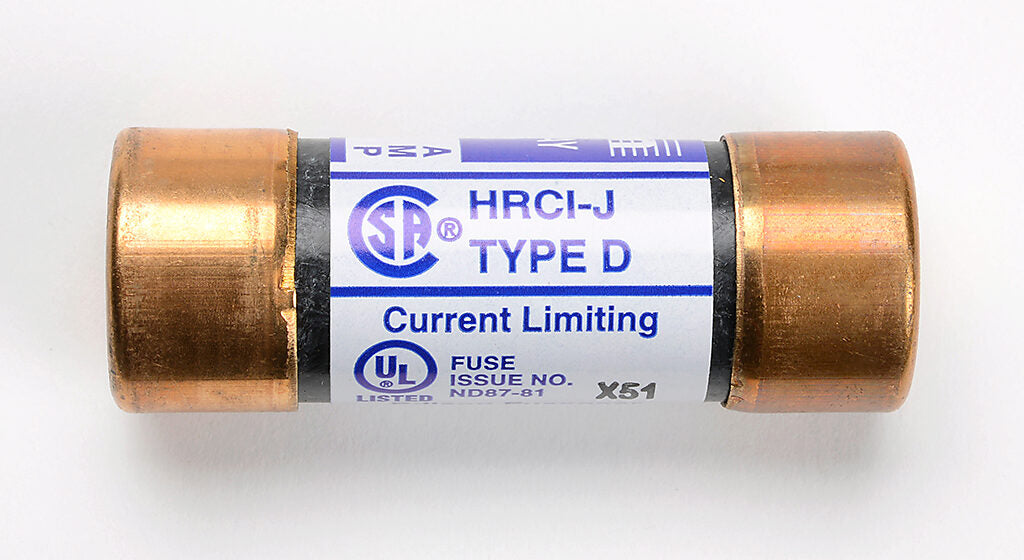

• Velocity: D (fast-acting)
• AIC Rating: 300kA@600V AC

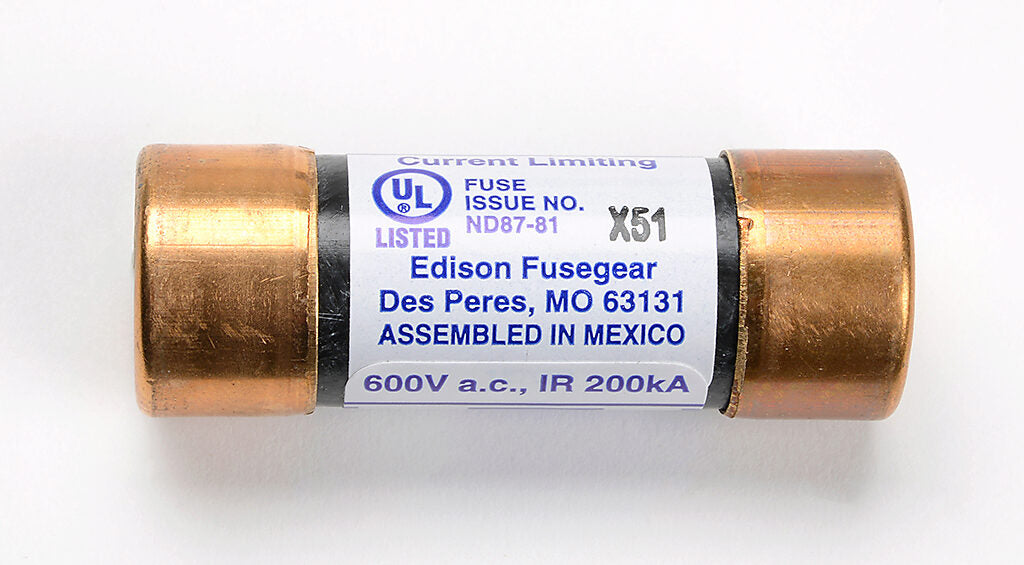

• Standards: UL/CSA compliant
• Applications: Motor circuits, transformers, power distribution panels

Product Identification

• UPC: 782634808640
• GTIN: 00782634808640
