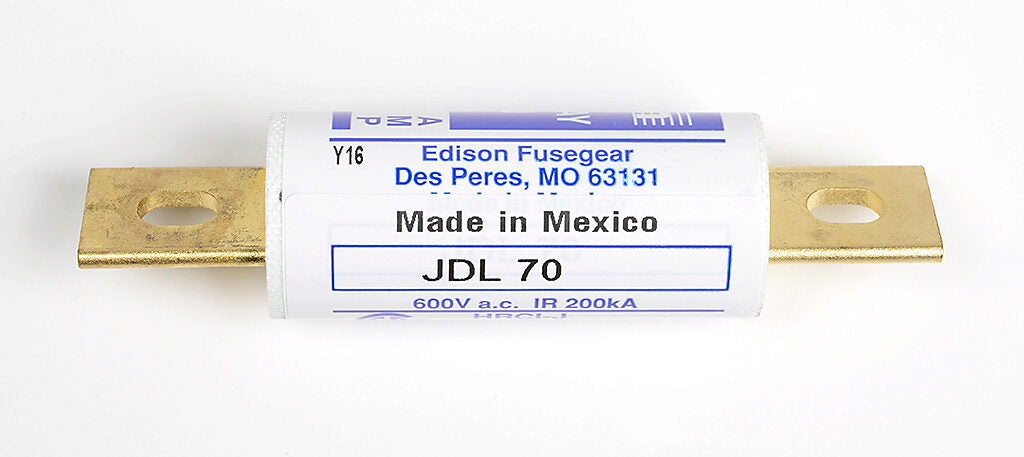

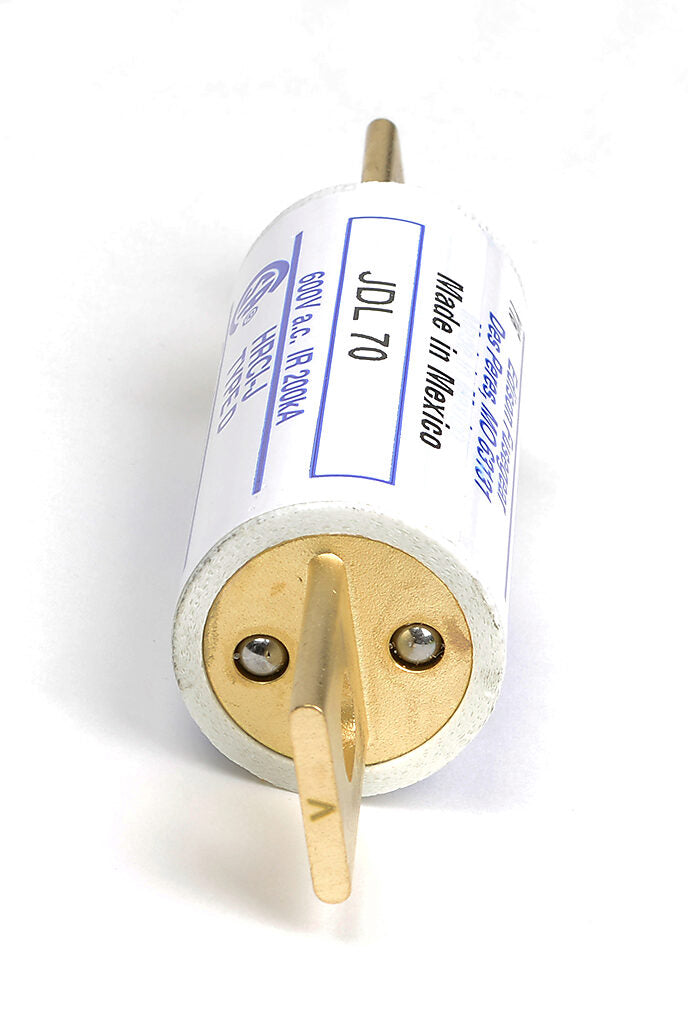

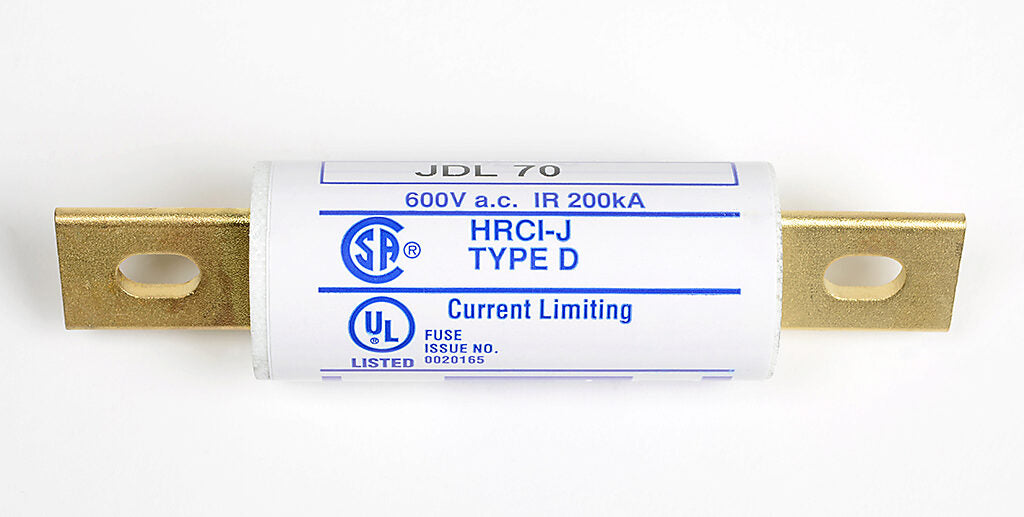

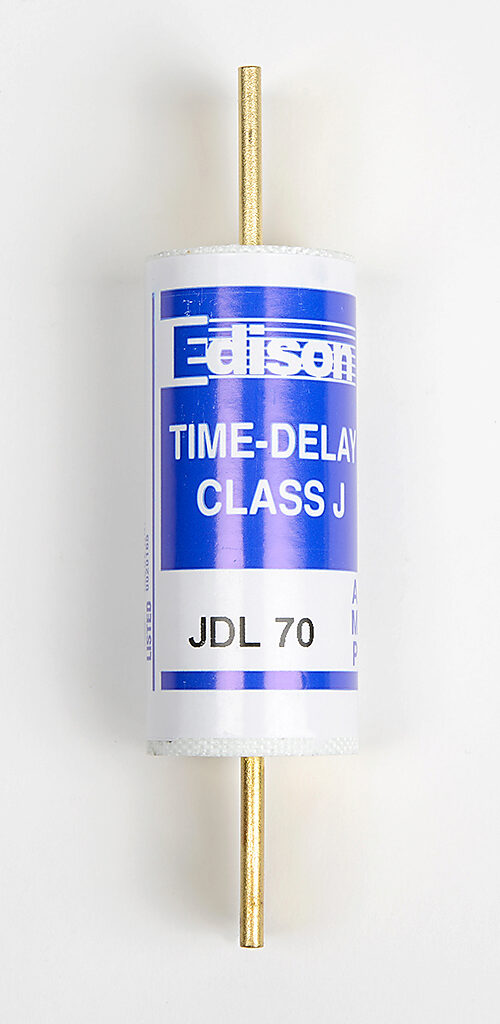

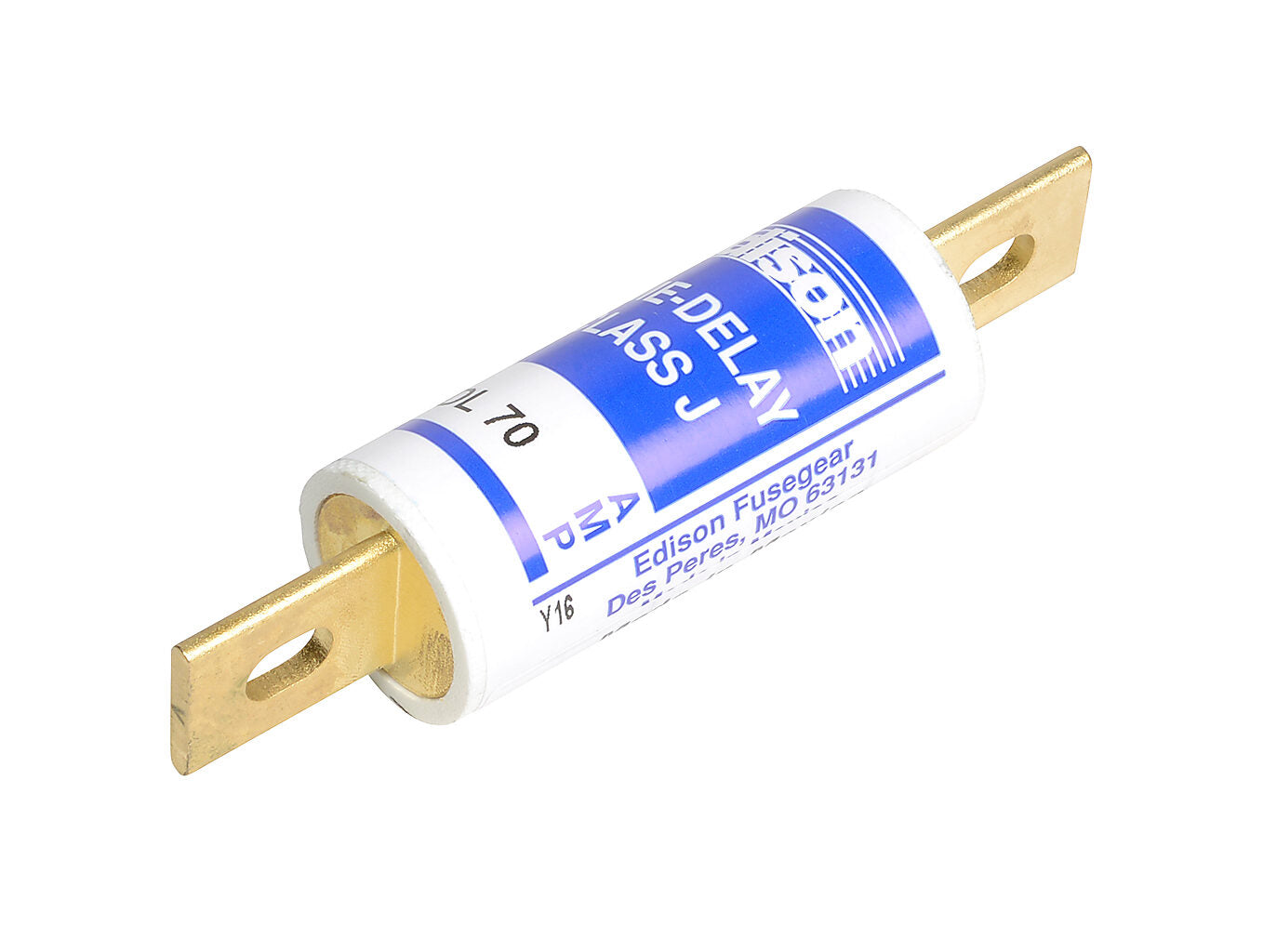

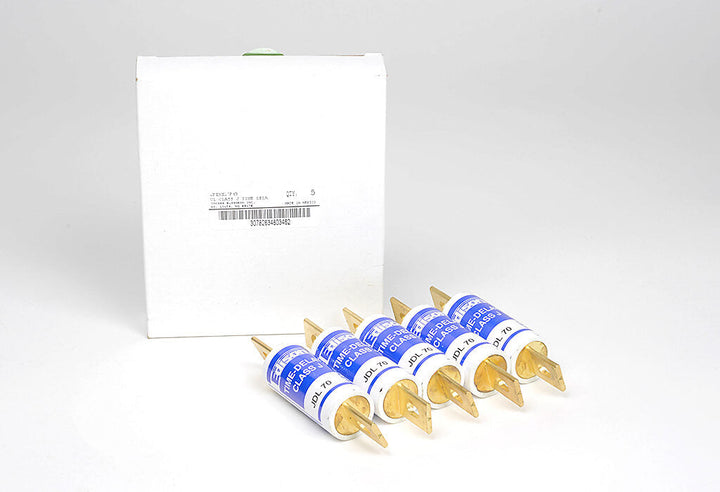

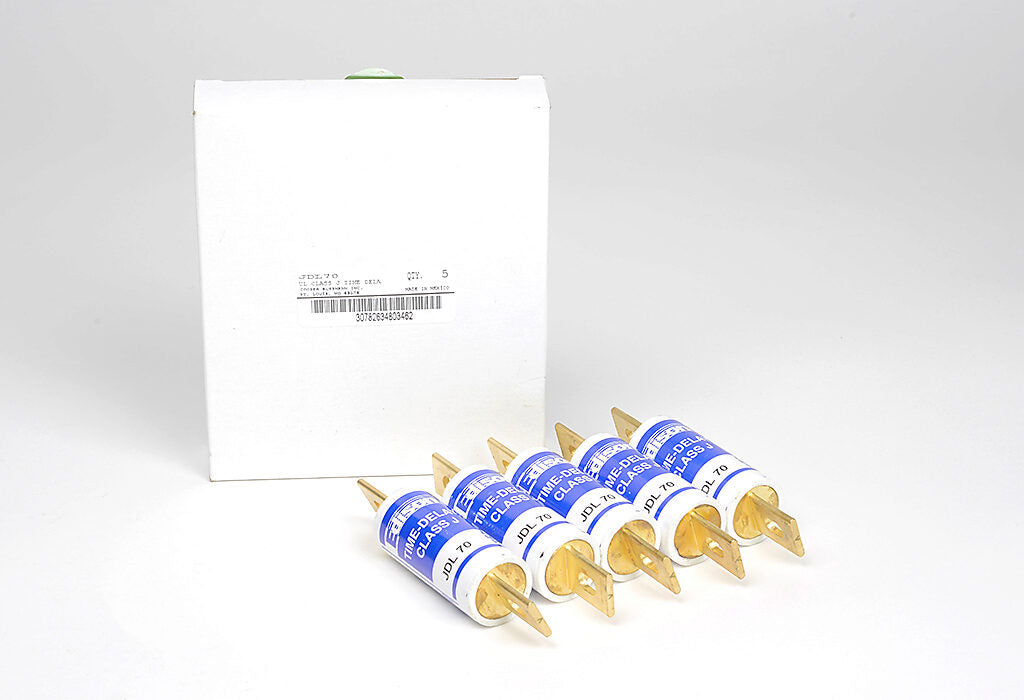

Edison Fuses JDL70 - Class J Fuse 70A 600V (300kA AIC)

Edison Fuses JDL70 is a low-voltage fuse designed for high-interrupting circuit protection in industrial electrical systems. This Class J bolt-in blade fuse features a 600V AC rating and 70A current capacity with a 300kA interrupting rating at 600V AC for reliable short-circuit protection. The unit measures 8" x 2.5" x 2.5" (LxHxW) with a 1.13" diameter barrel, constructed with durable materials meeting industry standards for electrical safety. Compliant with UL/CSA requirements, this D-speed fuse is engineered for motor branch circuits, industrial control panels, and heavy equipment applications where high fault current interruption is critical.

Key Features & Specifications

• Type: Class J time-delay low-voltage fuse with bolt-in blade connection
• Voltage Rating: 600V AC
• Current Rating: 70A
• Dimensions: 8" L x 2.5" H x 2.5" W (203mm x 64mm x 64mm)
• Weight: 2 lb (0.91 kg)
• Diameter: 1.13" (28.7mm)
• AIC Rating: 300kA @ 600V AC
• Barrels: 1
• Velocity: D-speed
• Standards: UL/CSA listed
• Applications: Motor circuits, industrial controls, power distribution

Product Identification

• UPC: 782634803461
• GTIN: 00782634803461
