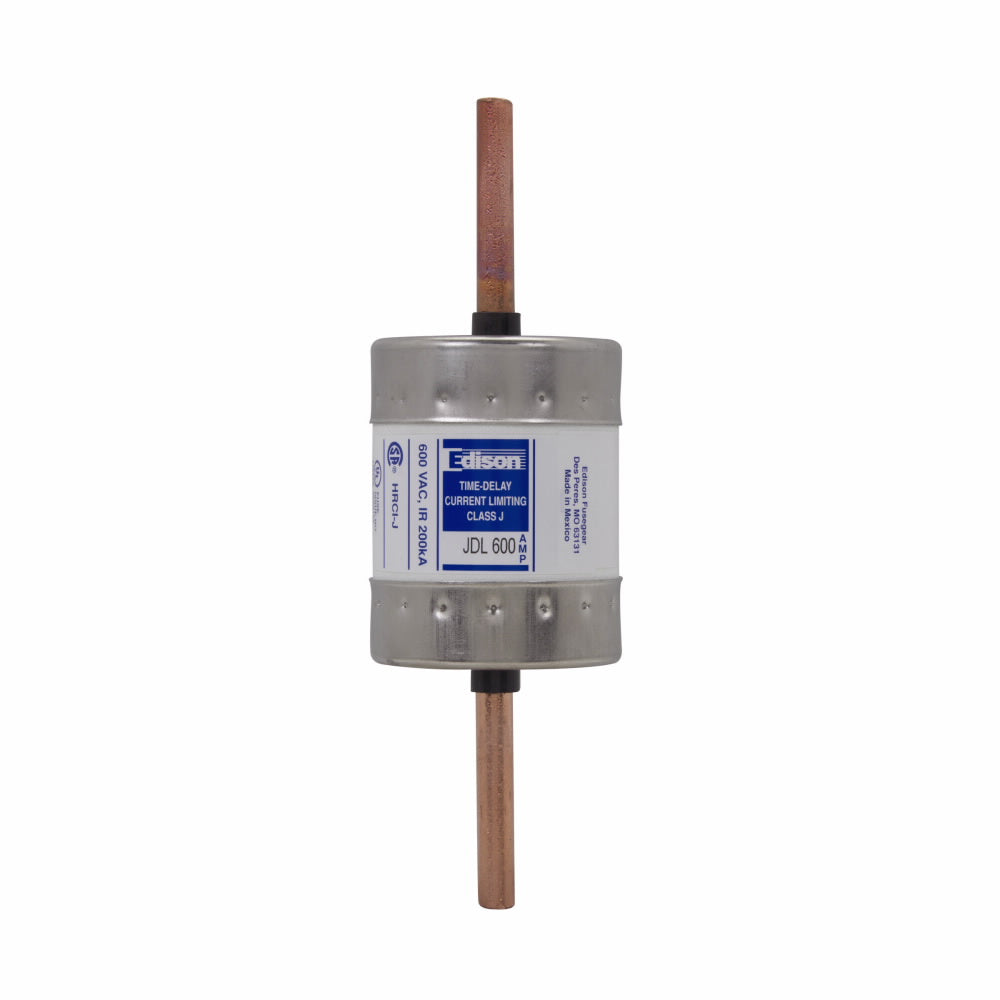

Edison Fuses JDL600 - Class J Fuse 600A (300kA AIC @600V)

Edison Fuses JDL600 is a Class J low-voltage fuse designed for high-current circuit protection in industrial electrical systems. This bolt-in blade fuse features a 600V AC rating and 600A current capacity, with a 300kA interrupting rating at 600V AC for reliable fault protection. The durable construction measures 8" x 2.5" x 2.5" (LxWxH) with a 2.5" diameter barrel, weighing 2 lb for robust mechanical stability. UL-listed and compliant with industry standards, this JDL-type fuse is engineered for switchgear, motor control centers, and industrial power distribution applications requiring high interrupting capacity.

Key Features & Specifications

• Type: JDL Class low-voltage current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: 8" L x 2.5" W x 2.5" H
• Standards: UL Listed
• Applications: Industrial switchgear, motor protection, power distribution
• Connection: Bolt-In Blade
• Barrels: 1
• Velocity: D
• AIC rating: 300kA@600V AC
• Class Rating: J
• Diameter: 2.5"
• Weight: 2 lb

Product Identification

• UPC: 078263480362
• GTIN: 00782634803621
