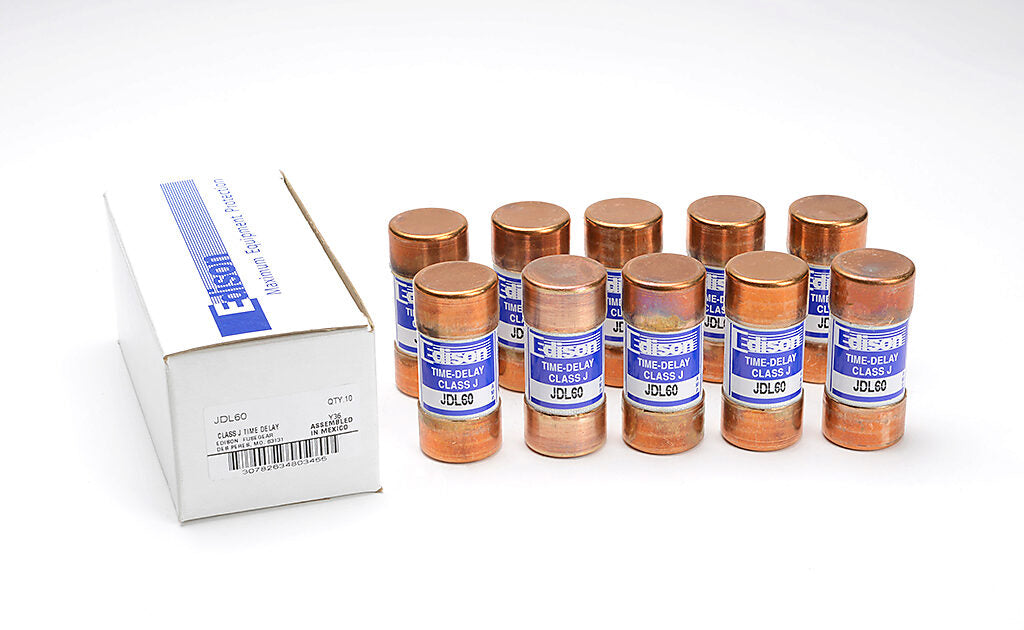

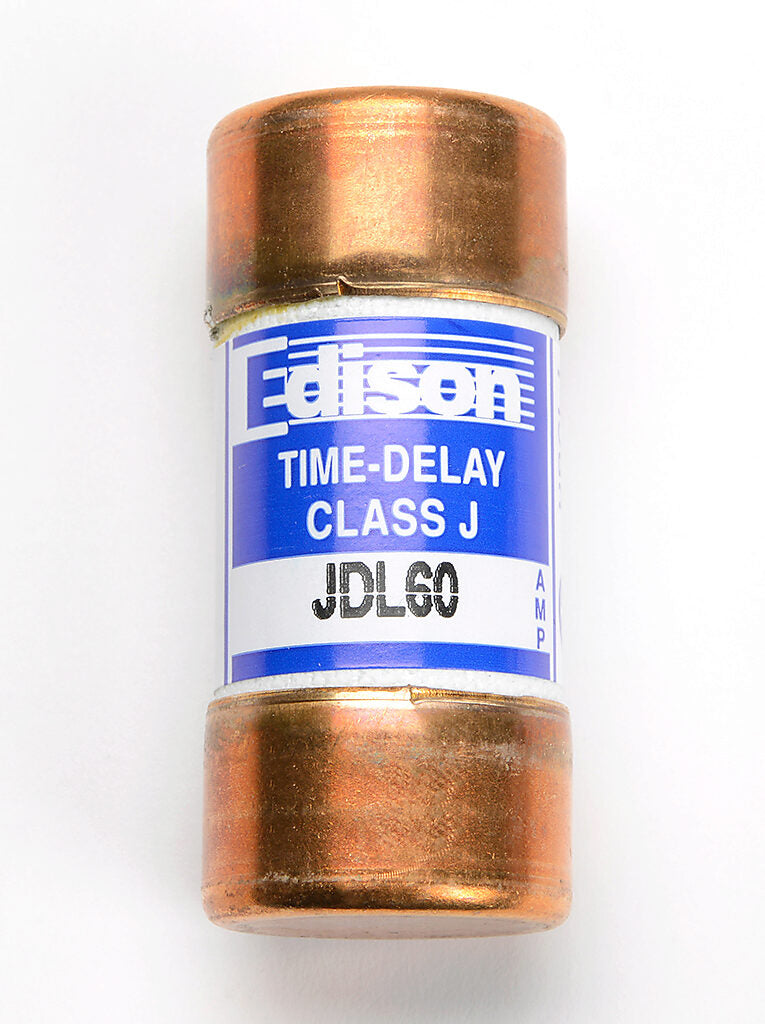

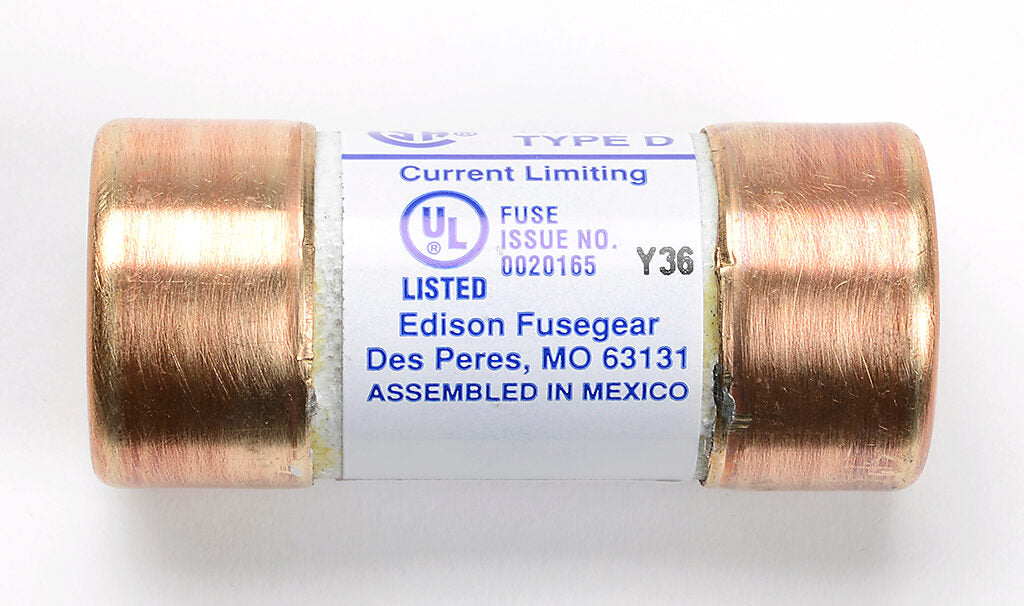

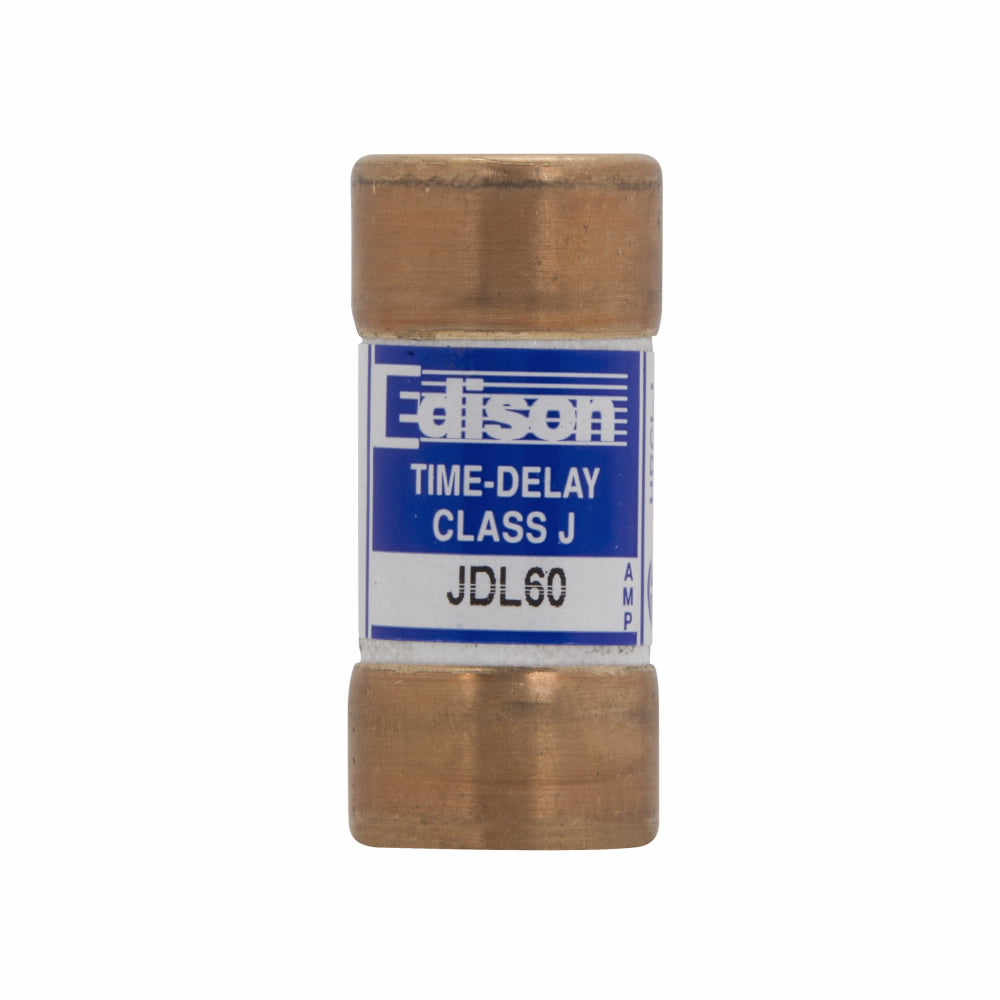

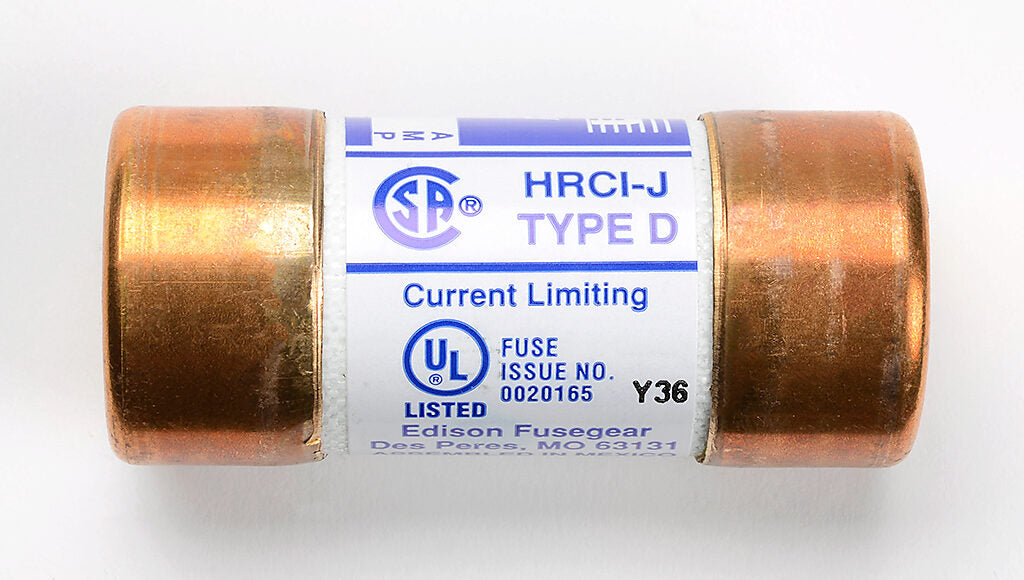

Edison Fuses JDL60 - Class J Time-Delay Fuse 60A@600V (300kA AIC)

Edison Fuses JDL60 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 60A current capacity and 300kA interrupting capacity at rated voltage, housed in a compact ferrule-style construction measuring 2.38" x 1.06" x 1.06" (LxWxH) with 0.81" diameter. The fuse meets industry standards for Class J protection with single-barrel design, providing reliable overcurrent protection for motor circuits, transformers, and power distribution equipment.

Key Features & Specifications

• Type: Class J time-delay low-voltage fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 2.38" L x 1.06" W x 1.06" H (60.5mm x 27mm x 27mm)
• Diameter: 0.81" (20.6mm)
• Weight: 2 lb (0.91 kg)
• AIC Rating: 300kA @ 600V AC
• Connection: Ferrule
• Barrels: 1
• Standards: Class J fuse protection
• Applications: Motor protection, transformers, industrial power distribution

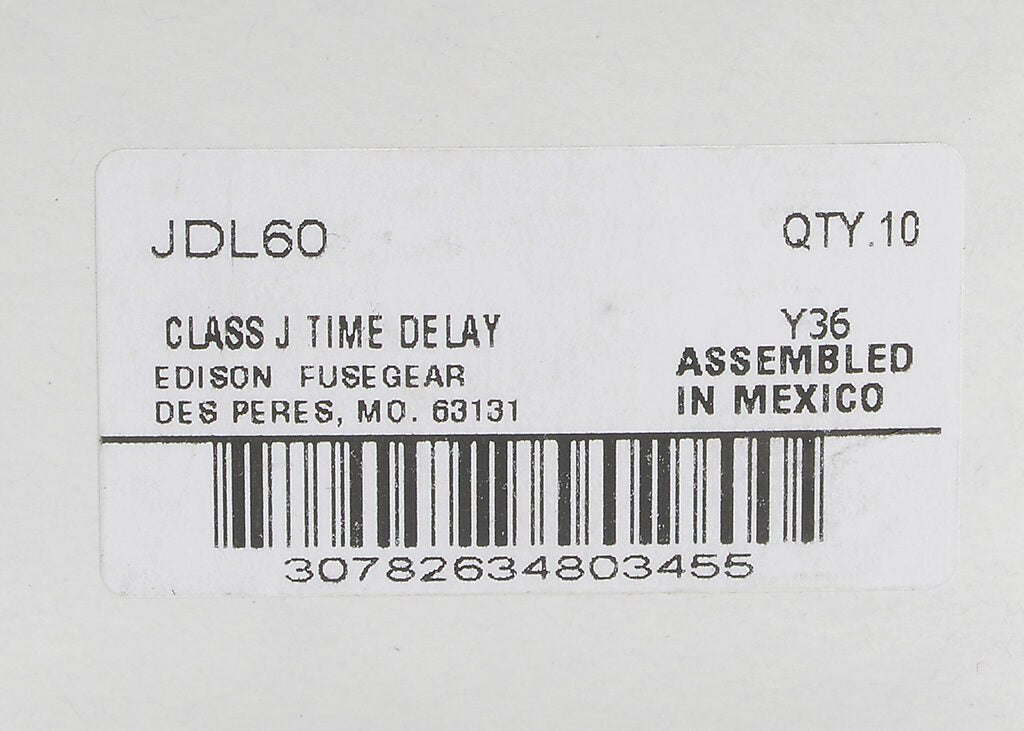

Product Identification

• UPC: 78263480345
• GTIN: 00782634803454
