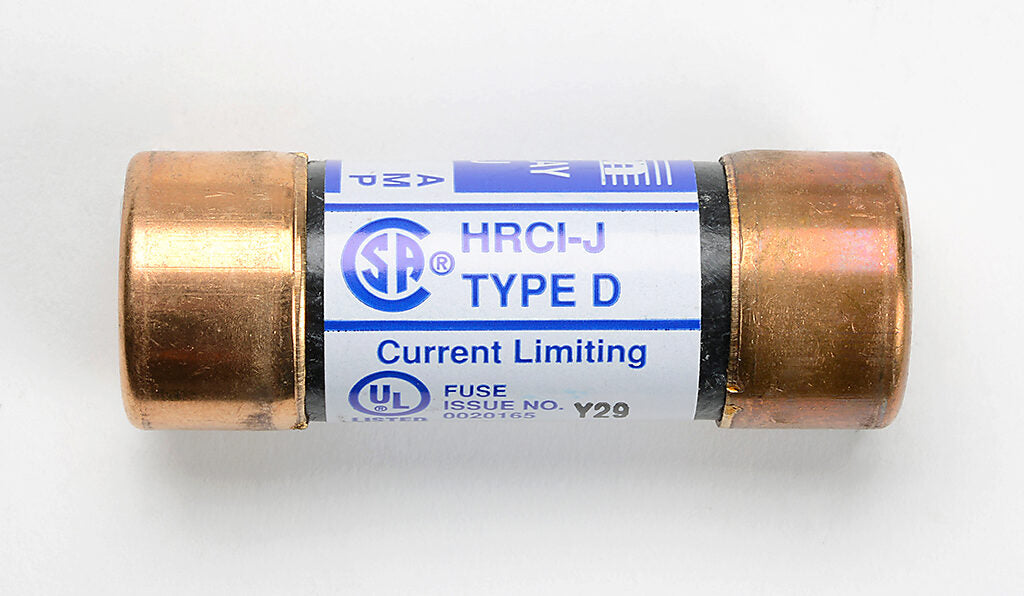

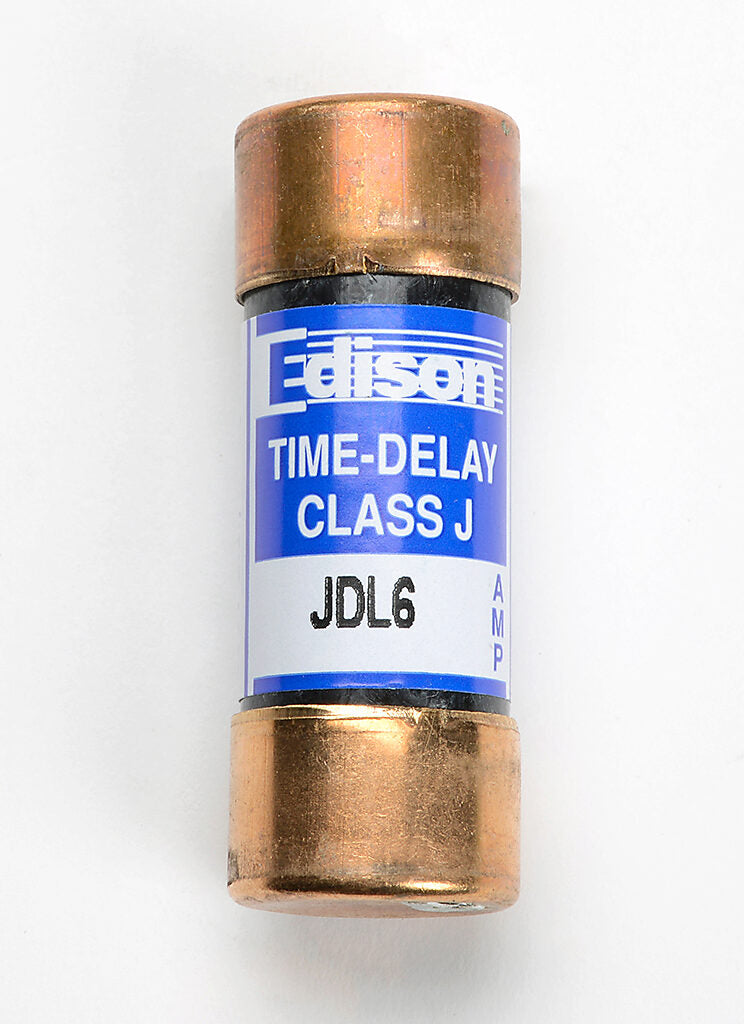

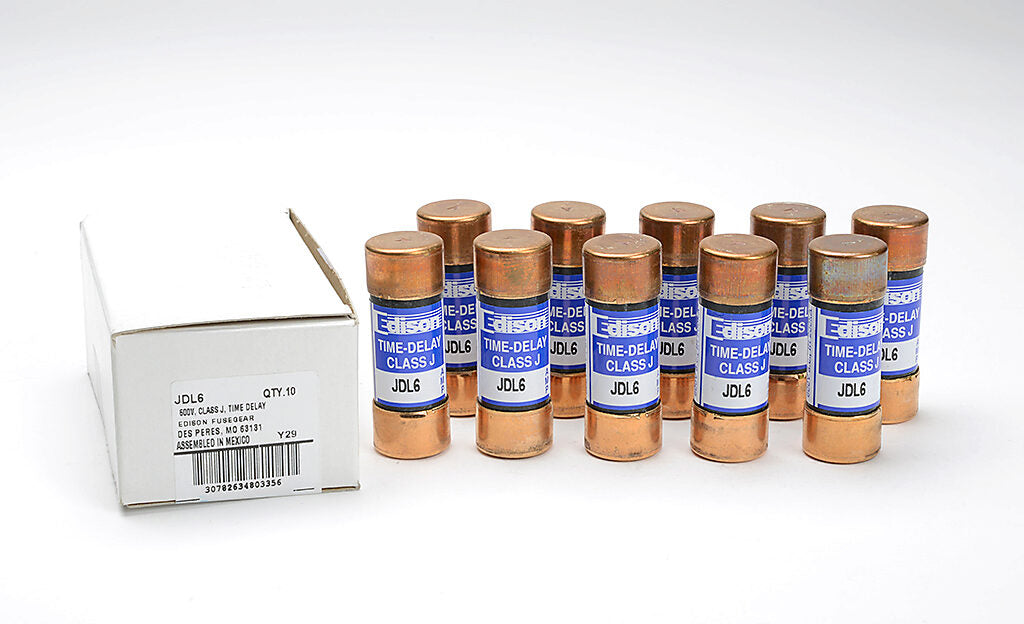

Edison Fuses JDL6 - Class J Time-Delay Fuse 6A 600V (300kA AIC)

Edison Fuses JDL6 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC voltage rating and 6A current rating with a 300kA interrupting capacity at 600V AC for reliable short-circuit protection. The compact ferrule-style fuse measures 2.25" in length with a 0.81" diameter cylindrical body weighing 2 lb, constructed to UL/CSA standards for safety compliance. Its Class J time-delay characteristics make it suitable for motor branch circuits, transformers, and other equipment requiring coordinated overload protection.

Key Features & Specifications

• Type: JDL time-delay fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 2.25"L x 0.81"D
• Weight: 2 lb
• Standards: UL/CSA listed
• Applications: Motor circuits, transformers, industrial controls
• AIC rating: 300kA@600V AC
• Class Rating: J
• Connection: Ferrule
• Barrels: 1
• Velocity: D

Product Identification

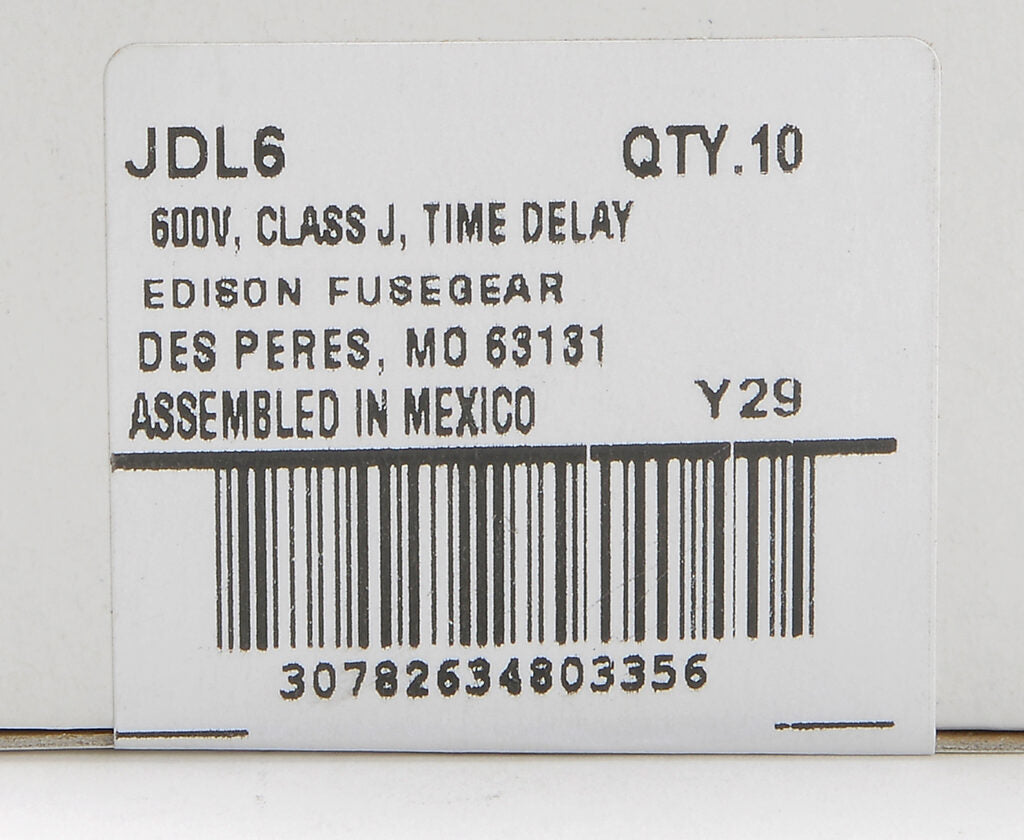

• UPC: 078263480335
• GTIN: 00782634803355
