Edison Fuses JDL50 - JDL Class Fuse 50A@600V (300kA AIC)

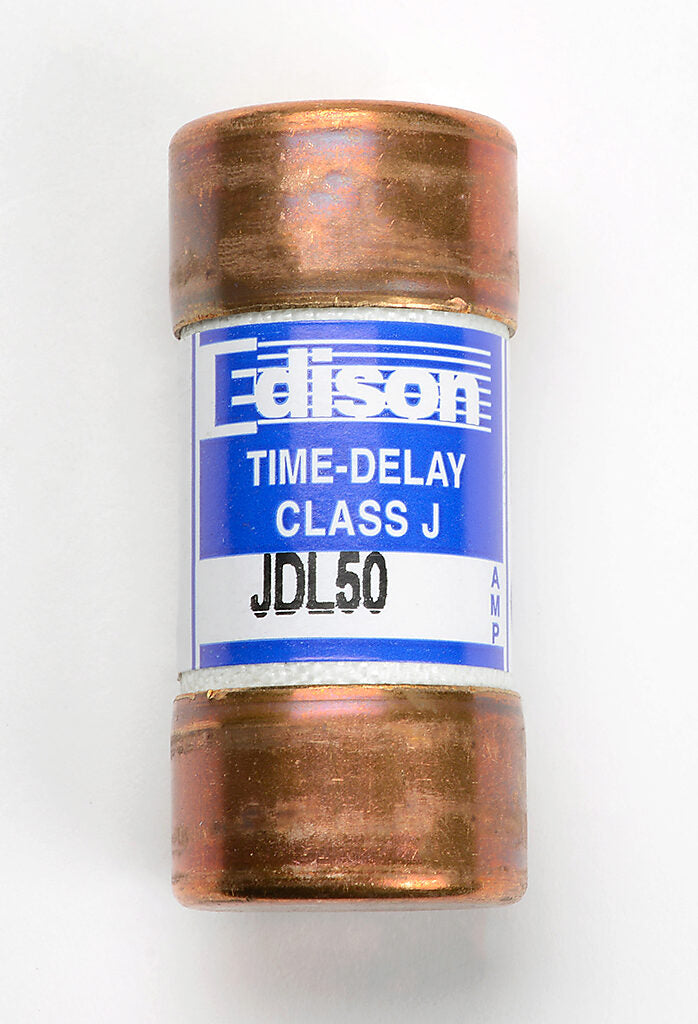

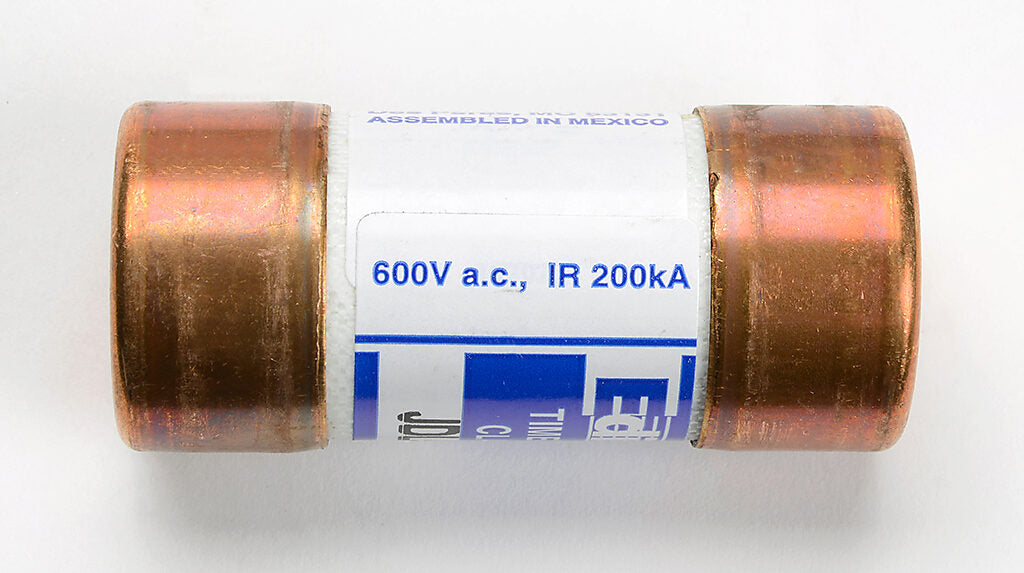

Edison Fuses JDL50 is a low-voltage fuse designed for circuit protection in industrial electrical systems. This JDL-class ferrule-connected fuse operates at 600V AC with a 50A current rating and 300kA interrupting capacity, providing reliable overcurrent protection. Its compact cylindrical design measures 2.38" in length and 1.06" in diameter, constructed with durable materials meeting industry standards for Class J fuses. The fuse complies with UL/CSA requirements for high-performance circuit protection. Typical applications include motor control centers, industrial control panels, and power distribution systems requiring fast-acting protection.

Key Features & Specifications

• Type: JDL-class time-delay fuse with ferrule connection
• Voltage: 600V AC
• Current: 50A
• Dimensions: 2.38"L x 1.06"D (60.5mm x 27mm)

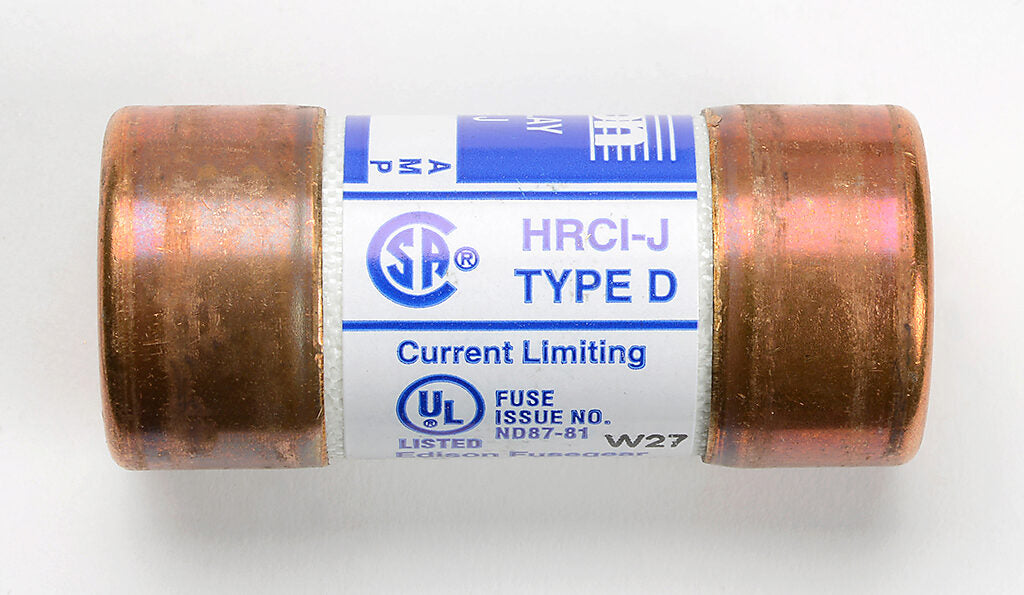

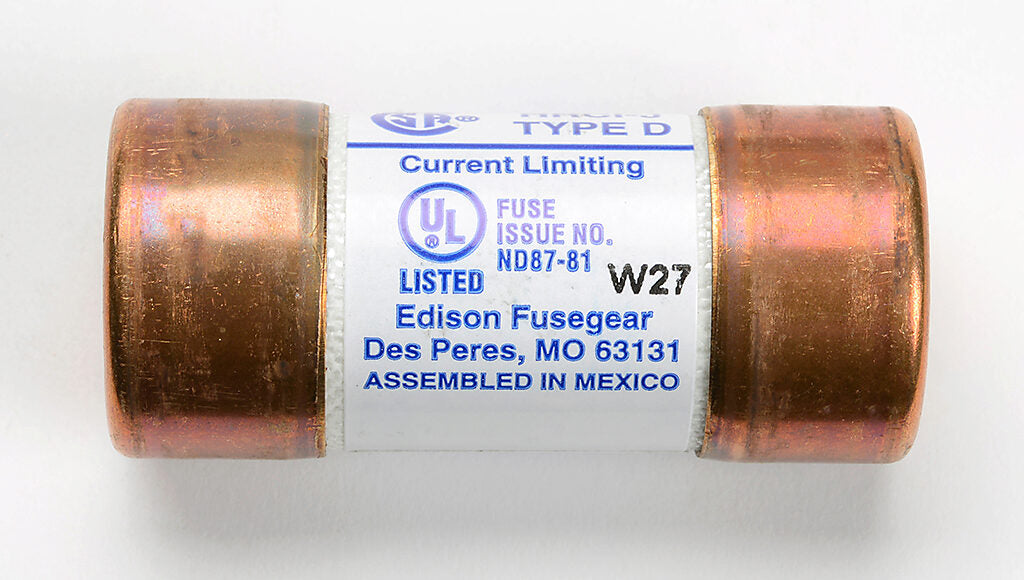

• Standards: UL/CSA listed, Class J
• Applications: Industrial control panels, MCCs, power distribution
• AIC rating: 300kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Velocity: D-speed
• Weight: 2 lb

Product Identification

• UPC: 782634803447
• GTIN: 00782634803447
