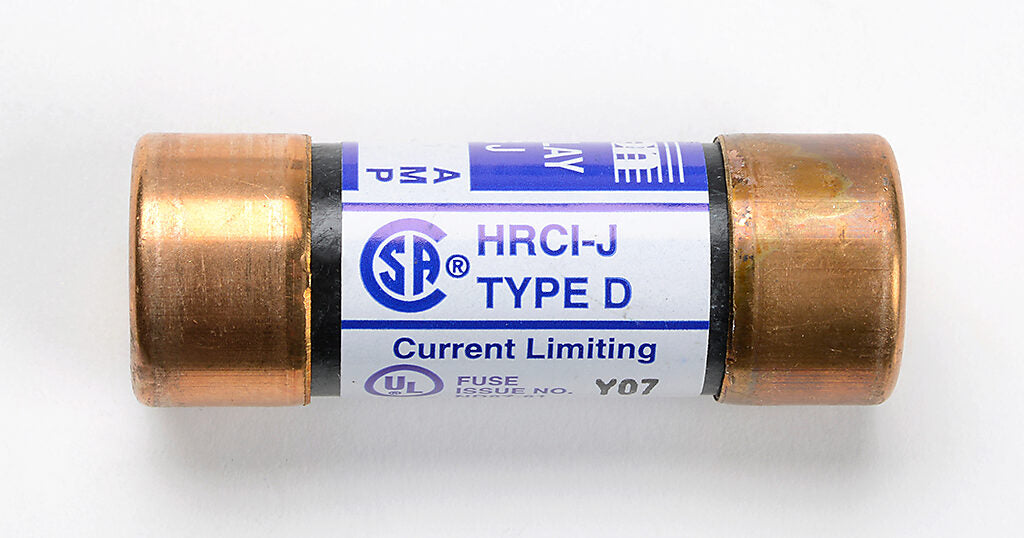

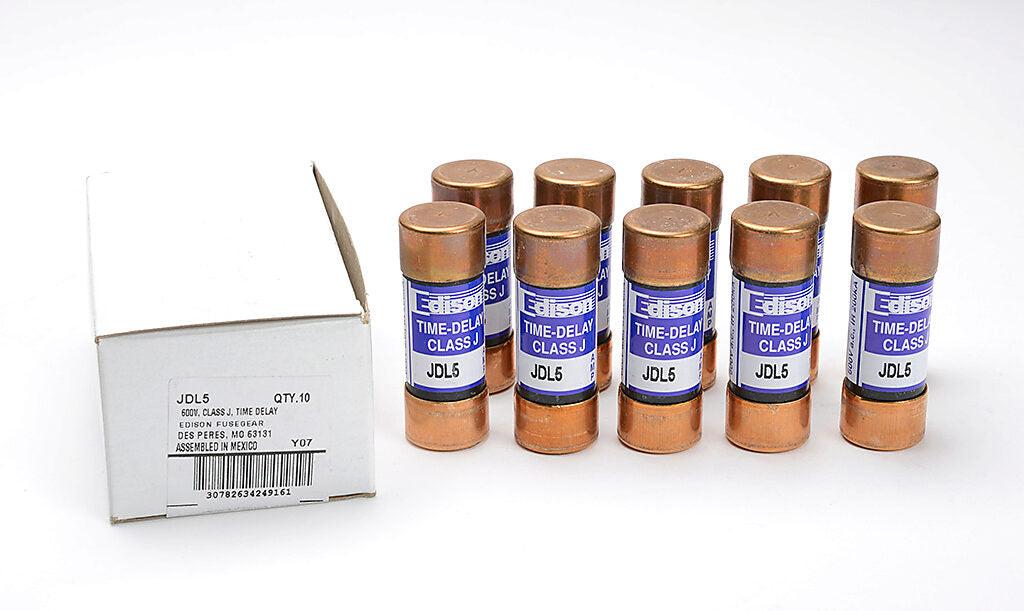

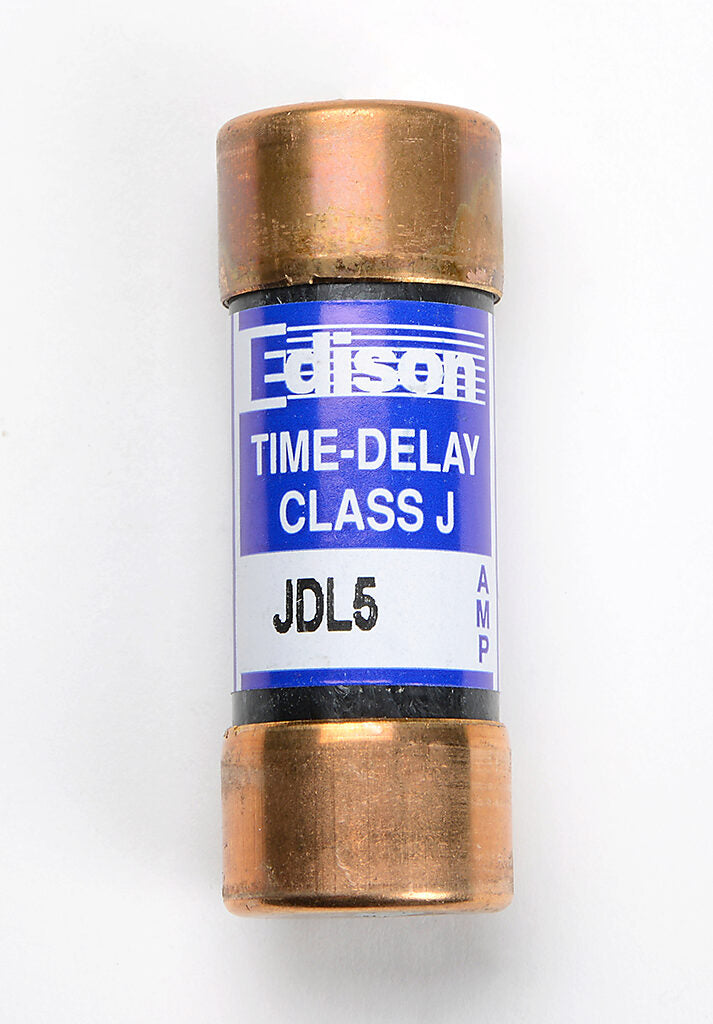

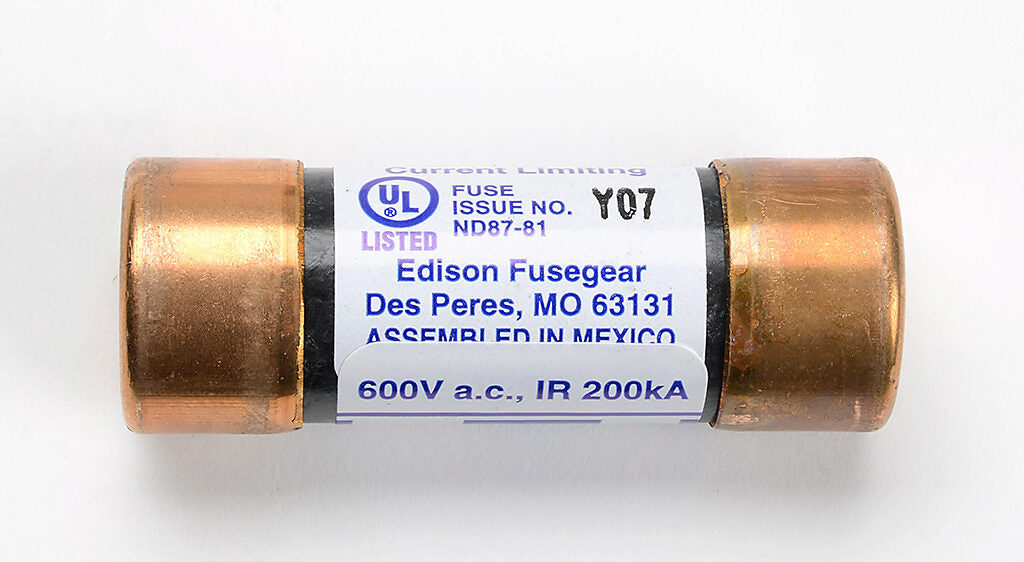

Edison Fuses JDL5 - Class J Time-Delay Fuse 5A@600V (300kA AIC)

Edison Fuses JDL5 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC voltage rating and 5A current rating with a 300kA interrupting capacity at 600V AC for reliable short-circuit protection. The compact ferrule-connected fuse measures 2.25" in length with a 0.81" diameter cylindrical body weighing 2 lb, constructed for durable single-barrel installation. Compliant with UL/CSA standards for Class J fuses, it provides time-delay protection for motor circuits, transformers, and power distribution equipment in commercial and industrial applications.

Key Features & Specifications

• Type: JDL time-delay fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 5A
• Dimensions: 2.25" L × 0.81" W × 0.81" H
• Standards: UL/CSA Class J
• Applications: Motor circuits, transformers, power distribution
• AIC rating: 300kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Diameter: 0.81"
• Weight: 2 lb

Product Identification

• UPC: 78263424916
• GTIN: 00782634249160
