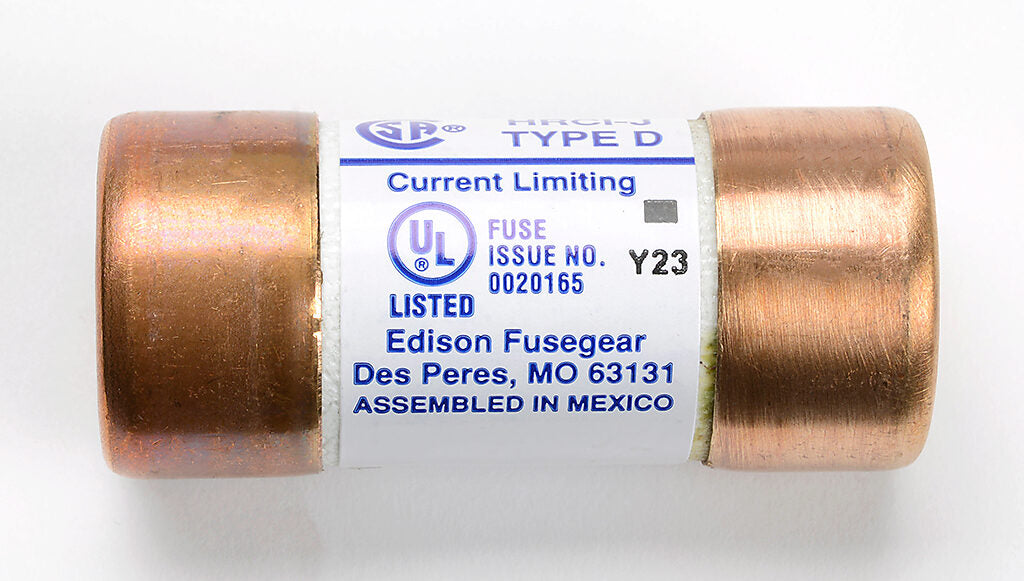

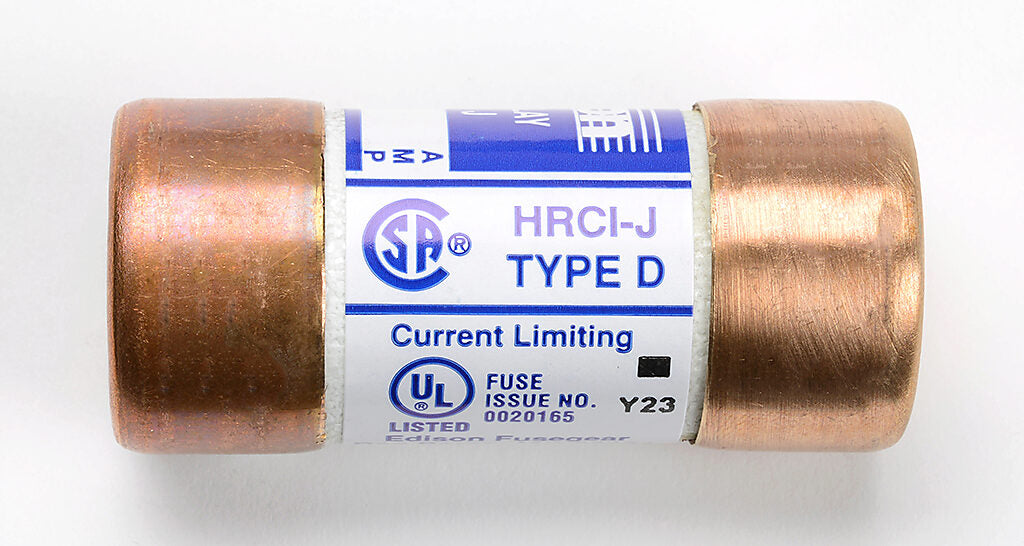

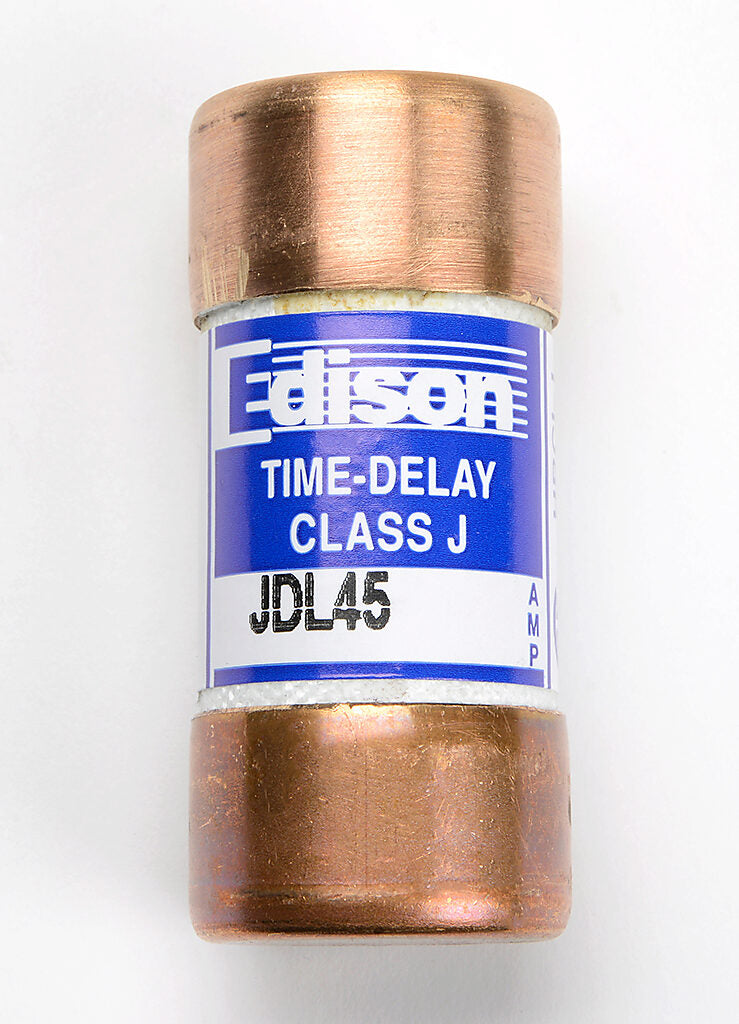

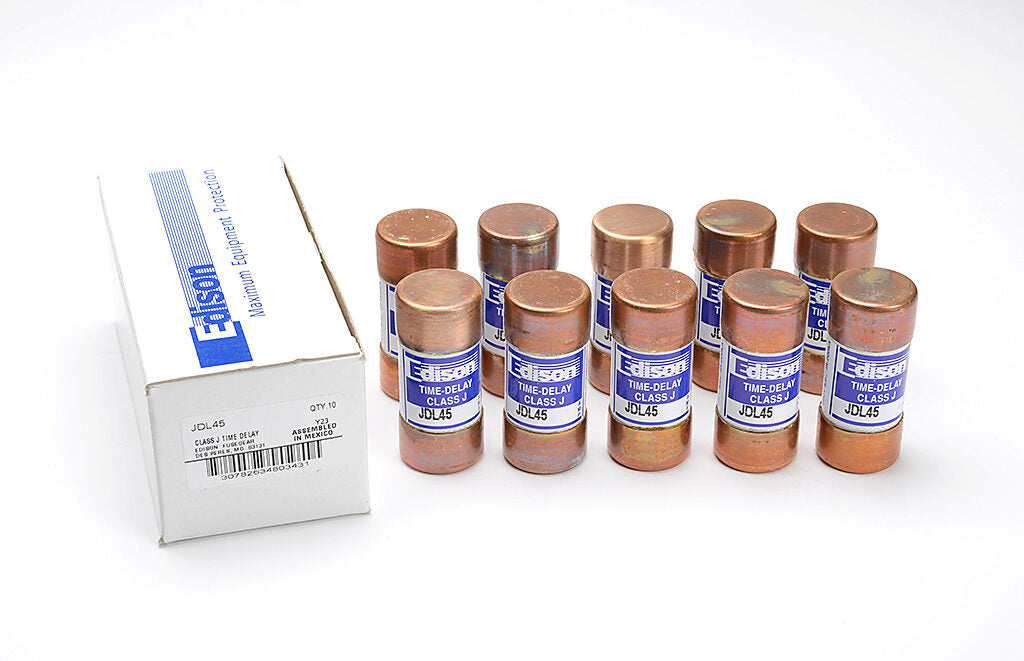

Edison Fuses JDL45 - Class J Fuse 45A 600V (300kA AIC)

Edison Fuses JDL45 is a low-voltage fuse designed for circuit protection in industrial electrical systems. This Class J fuse features a 600V AC rating and 45A current capacity with a 300kA interrupting rating at 600V AC for high-fault protection. The compact ferrule-connected design measures 2.38" in length with a 1.06" diameter barrel, constructed for durability in demanding environments. It meets industry standards for Class J fuses with "D" velocity characteristics for fast-acting protection. Typical applications include motor control centers, panelboards, and industrial power distribution systems requiring reliable overcurrent protection.

Key Features & Specifications

• Type: Class J time-delay fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 45A
• Dimensions: 2.38"L x 1.06"W x 1.06"H
• Weight: 2 lb
• Diameter: 1.06"
• Class Rating: J
• Connection: Ferrule
• Barrels: 1
• Velocity: D (fast-acting)
• AIC rating: 300kA@600V AC
• Standards: UL/CSA Class J compliance
• Applications: Industrial power distribution, motor protection, panelboards

Product Identification

• UPC: 78263480343
• GTIN: 00782634803430
