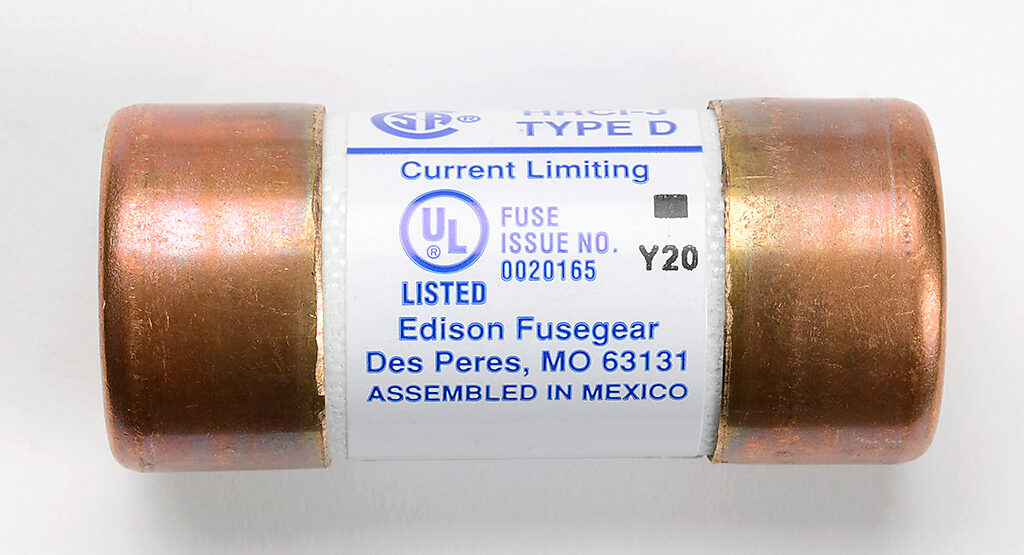

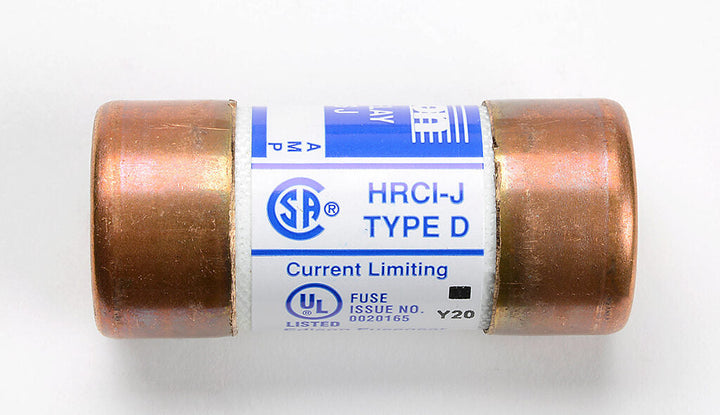

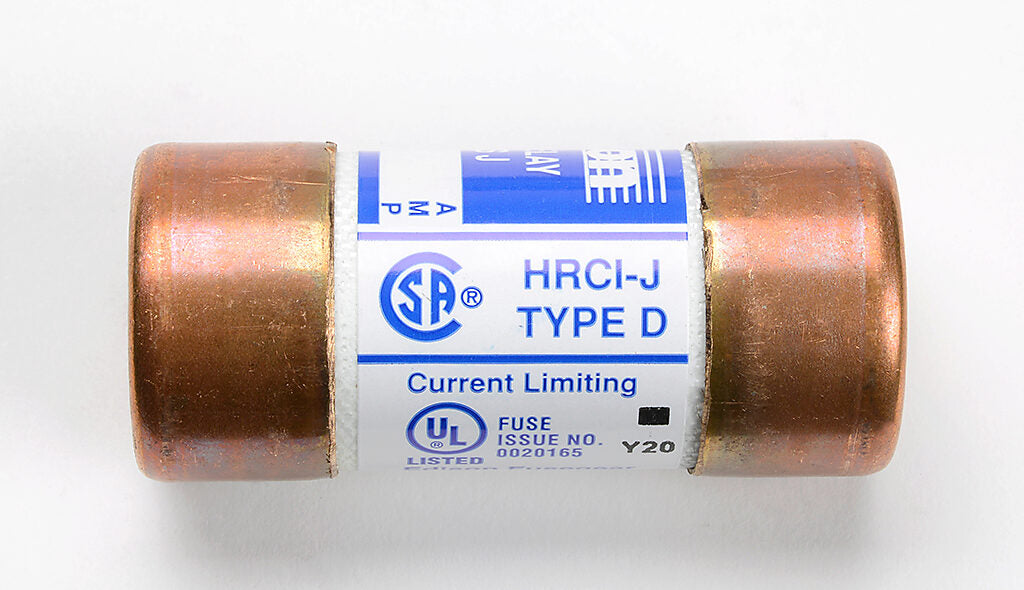

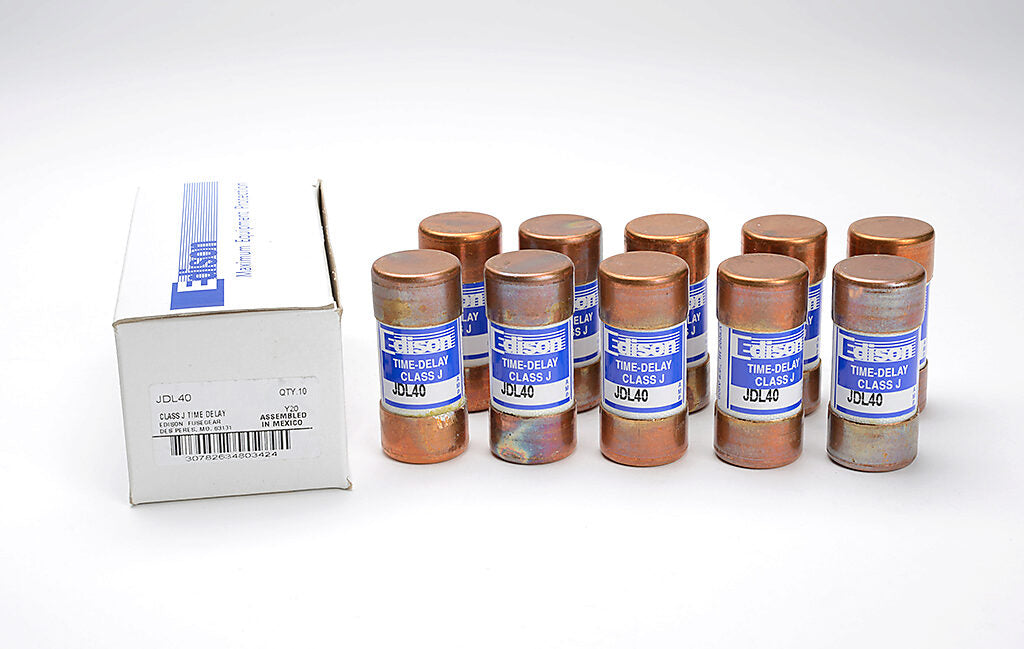

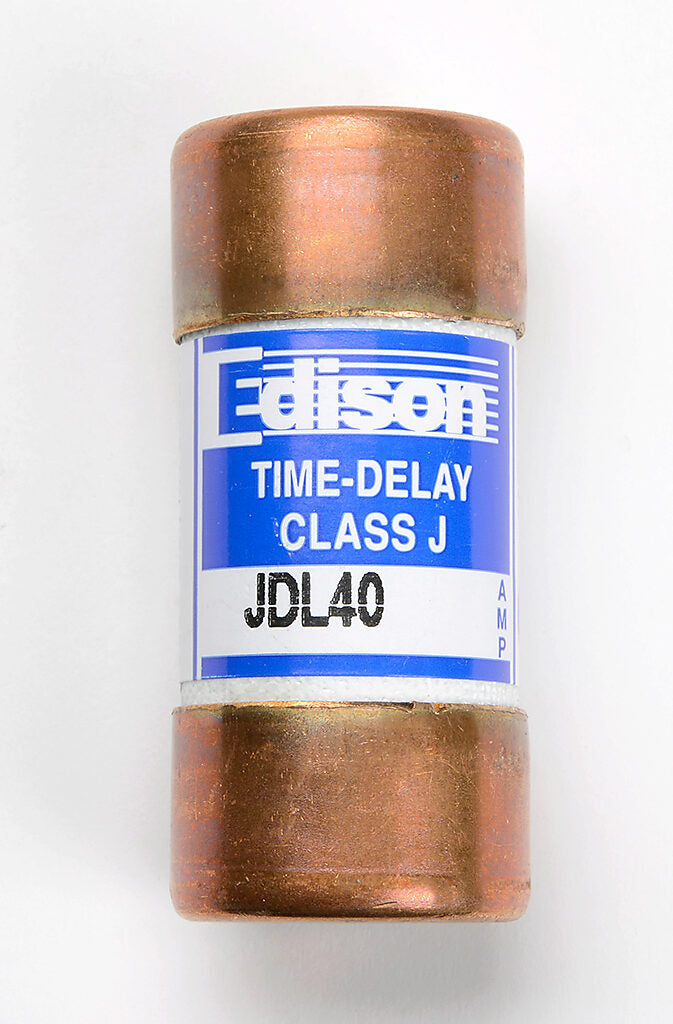

Edison Fuses JDL40 - Class J Time-Delay Fuse 40A@600V (300kA AIC)

Edison Fuses JDL40 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 40A current capacity and 300kA interrupting rating at 600V AC for reliable short-circuit protection. The compact ferrule-connected fuse measures 2.38" in length with a 1.06" diameter barrel construction, weighing 2 lb for easy installation. Compliant with industry standards for Class J fuses, it provides time-delay characteristics (Velocity D) for motor circuit applications. Typical uses include protecting feeders, branch circuits, and industrial control equipment requiring high interrupting capacity.

Key Features & Specifications

• Type: JDL time-delay fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 40A
• Dimensions: 2.38"L x 1.06"W x 1.06"H
• Standards: Class J (UL/CSA)
• Applications: Motor circuits, industrial controls
• AIC rating: 300kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Velocity: D (time-delay)
• Diameter: 1.06"
• Weight: 2 lb

Product Identification

• UPC: 782634803423
• GTIN: 00782635000000
