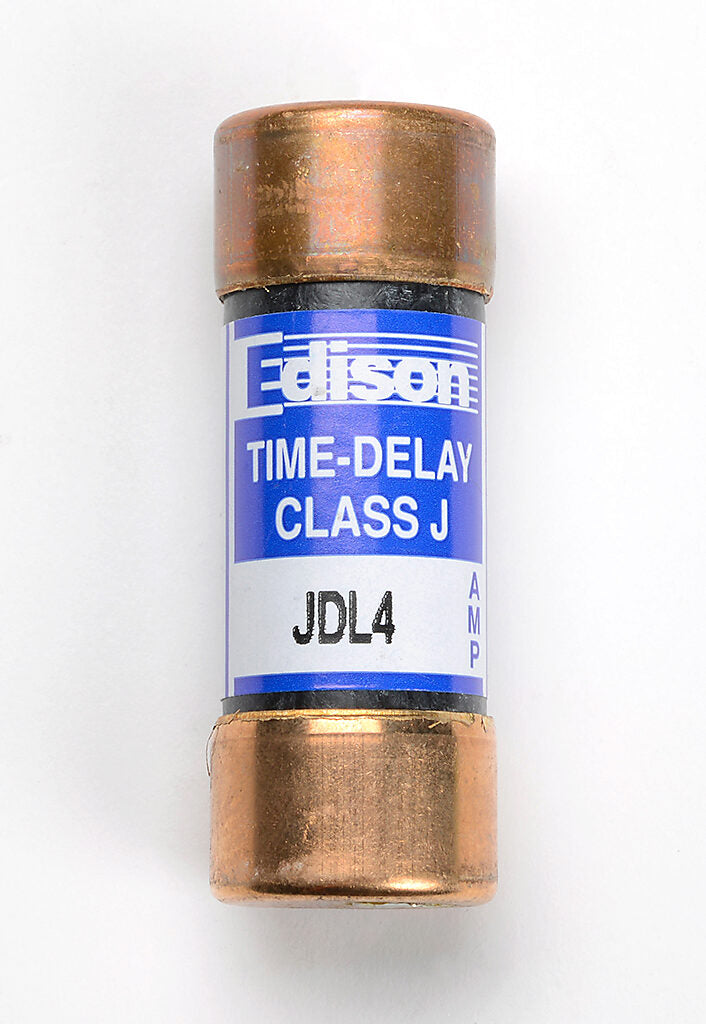

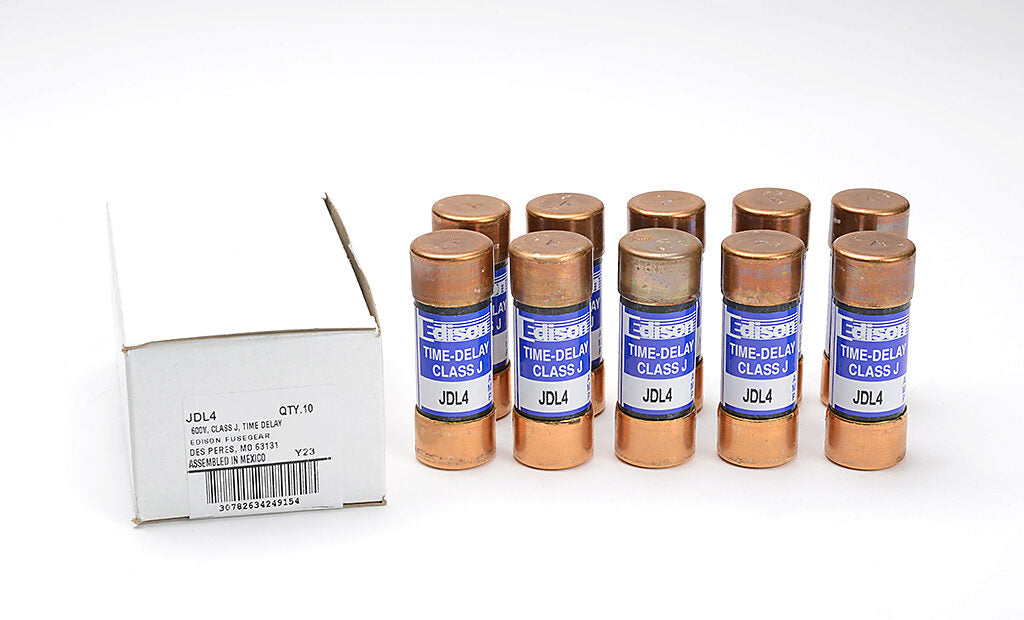

Edison Fuses JDL4 - Class J Fuse 4A 600V (300kA AIC)

Edison Fuses JDL4 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC voltage rating and 4A current rating with a 300kA interrupting capacity at 600V AC for reliable fault protection. The compact ferrule-connected fuse measures 2.25" × 0.81" × 0.81" (L×W×H) with a single-barrel D-speed design, constructed to UL/CSA standards. Its Class J rating ensures precise time-current characteristics for motor and transformer protection applications across manufacturing plants and power distribution systems.

Key Features & Specifications

• Type: Class J time-delay low-voltage fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 4A
• Dimensions: 2.25" L × 0.81" W × 0.81" H (57.15 × 20.57 × 20.57mm)

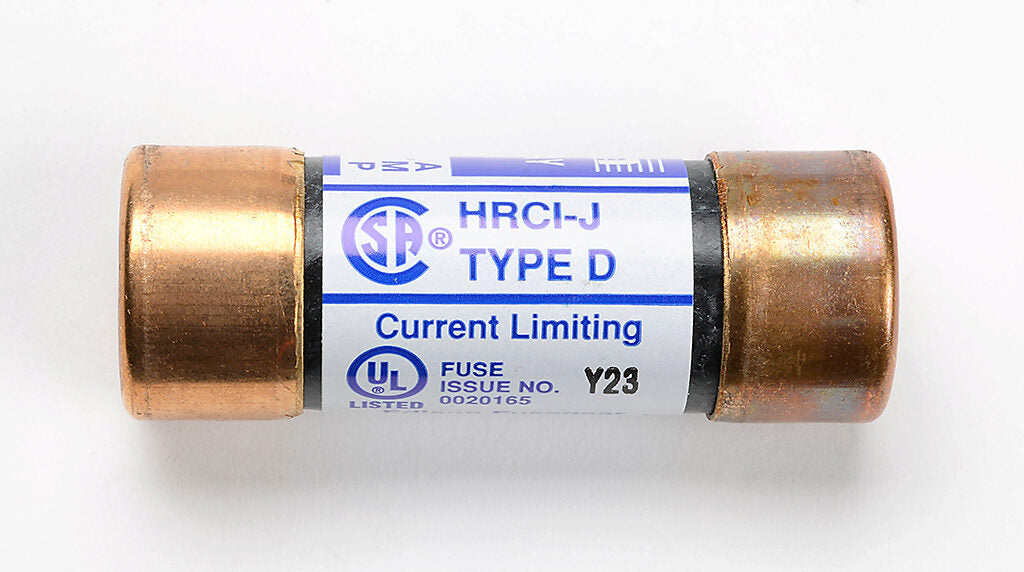

• Standards: UL/CSA listed
• Applications: Motor circuits, transformers, industrial power distribution
• AIC rating: 300kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Velocity: D-speed
• Class Rating: J
• Diameter: 0.81" (20.57mm)
• Weight: 2 lb

Product Identification

• UPC: 78263424915
• GTIN: 00782634249153
