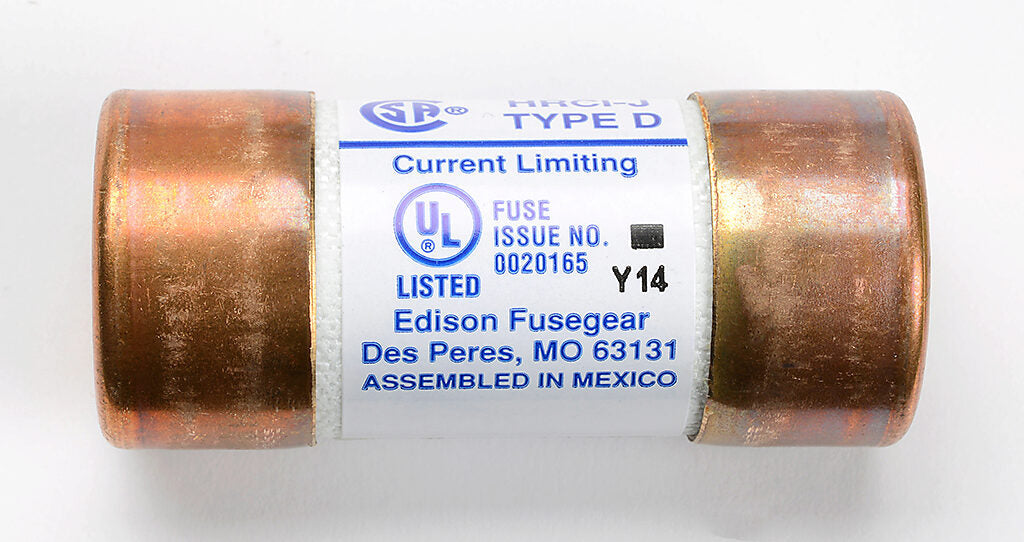

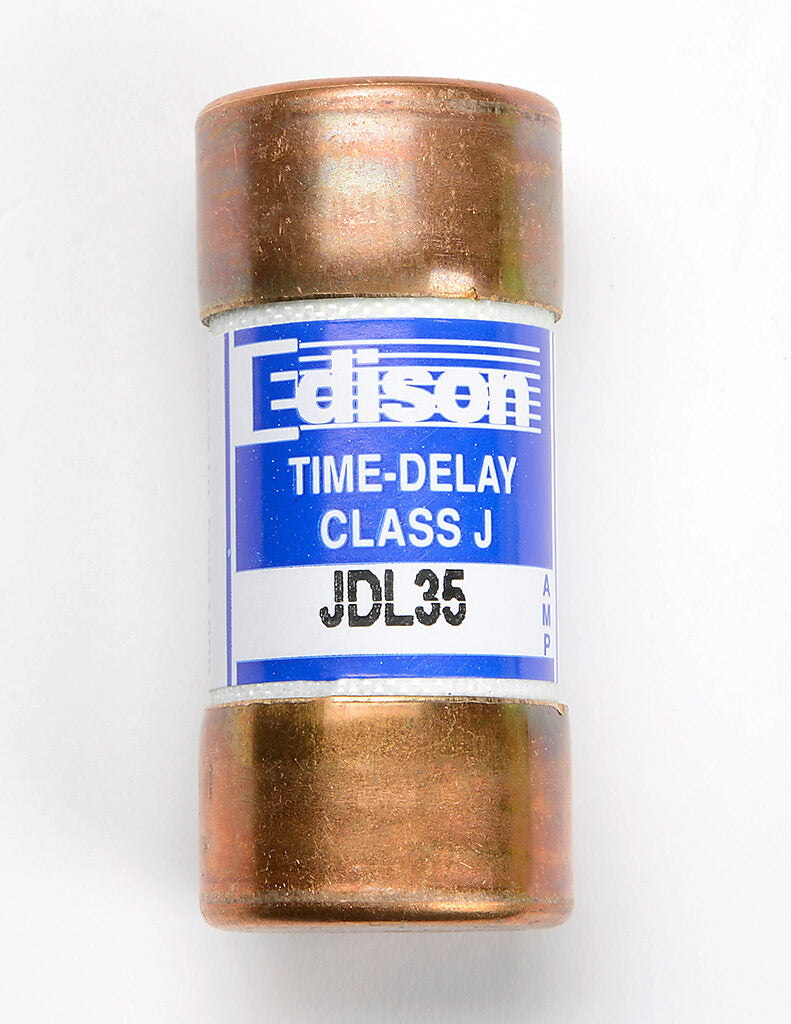

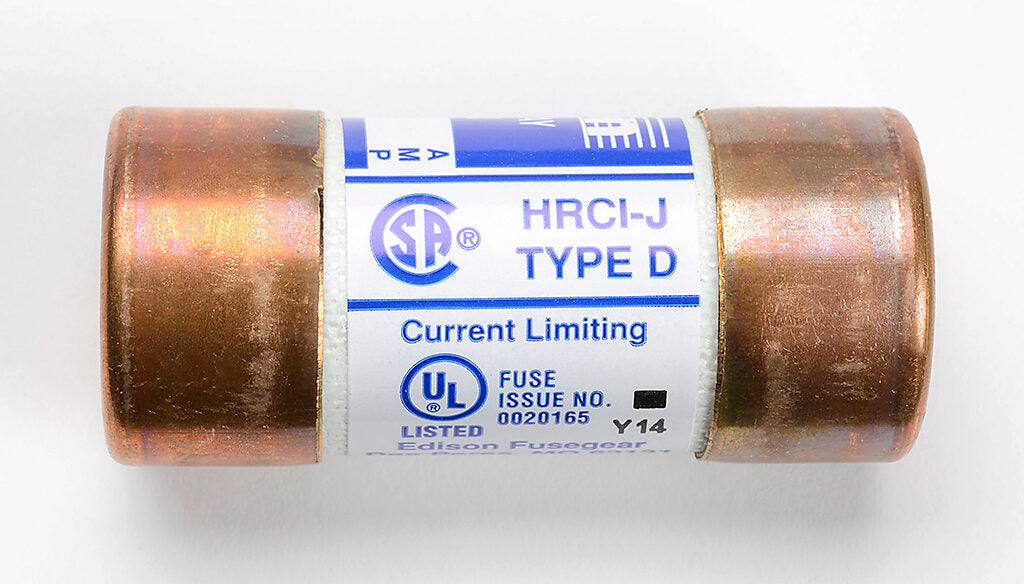

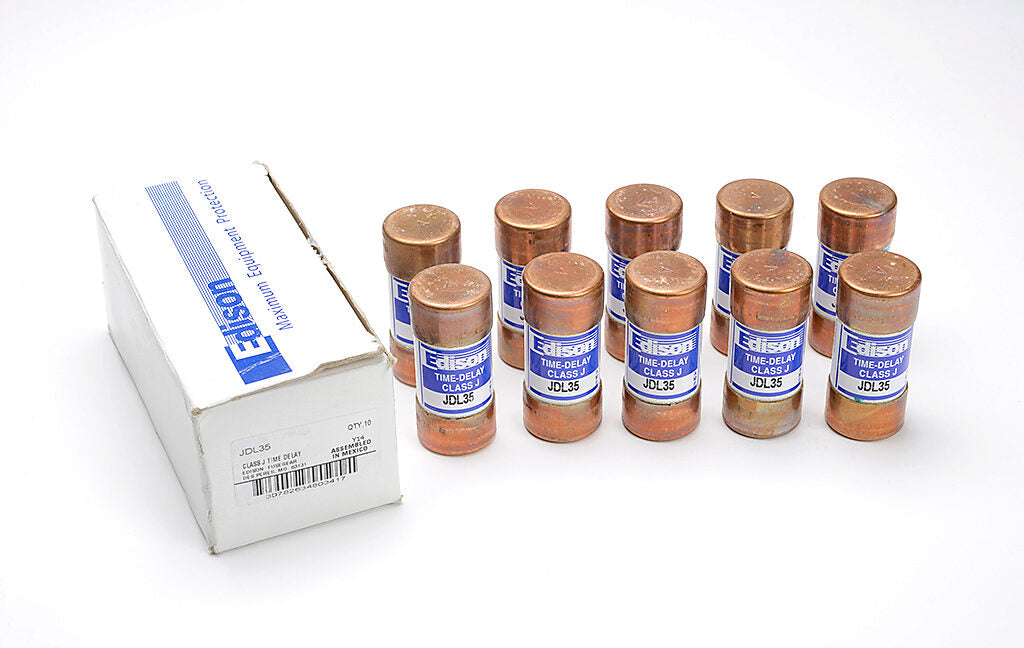

Edison Fuses JDL35 - JDL Fuse 35A (300kA@600V AC Interrupt Rating)

Edison Fuses JDL35 is a low-voltage fuse designed for circuit protection in industrial electrical systems. This J-class fuse features a 600V AC rating with a 35A current capacity and a high interrupting rating of 300kA at 600V AC for reliable fault protection. The compact ferrule-connected design measures 2.38" in length with a 1.06" diameter barrel, constructed for durability in demanding environments. It complies with industry standards for J-class fuses, suitable for motor branch circuits and transformer protection. Typical applications include industrial control panels, HVAC systems, and power distribution equipment where high-performance circuit interruption is required.

Key Features & Specifications

• Type: JDL-class time-delay fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 35A
• Dimensions: 2.38" L × 1.06" W × 1.06" H
• Standards: J-class fuse specifications
• Applications: Motor circuits, transformers, industrial controls
• AIC rating: 300kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Velocity: D
• Diameter: 1.06"
• Weight: 2 lb

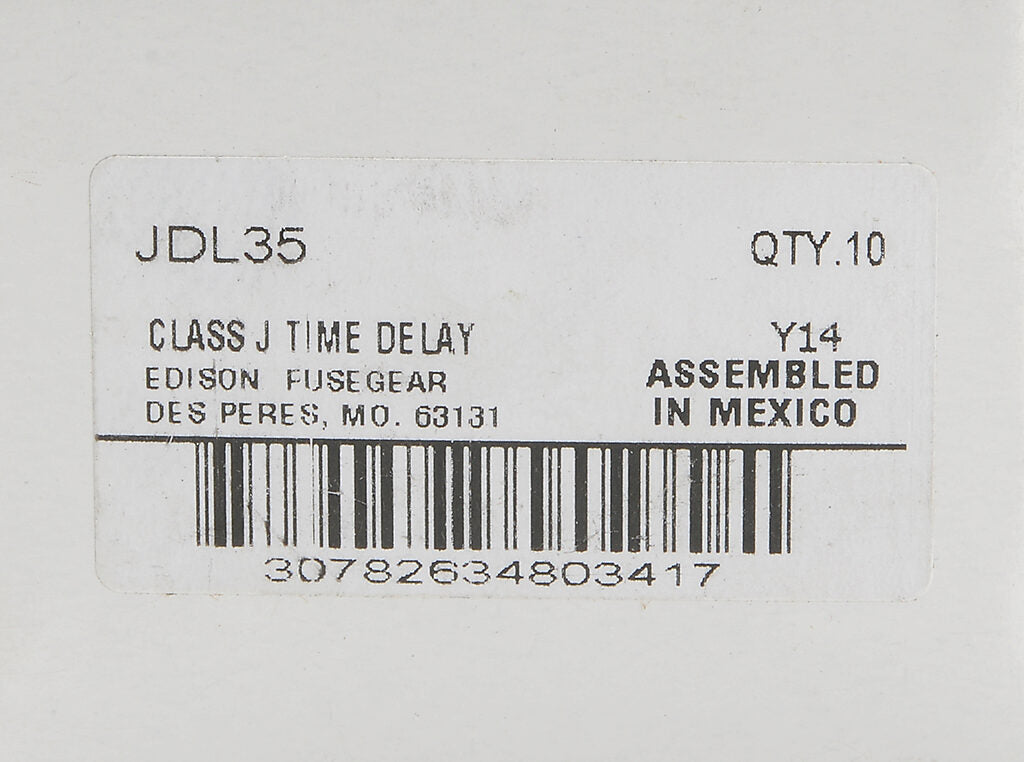

Product Identification

• UPC: 782634803416
• GTIN: 00782634803416
