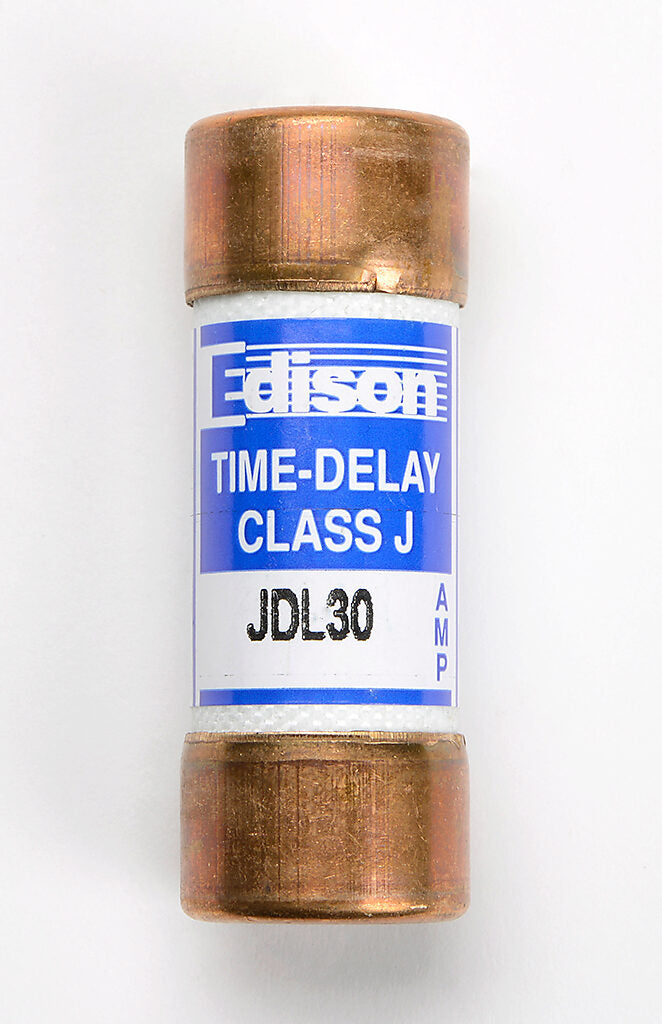

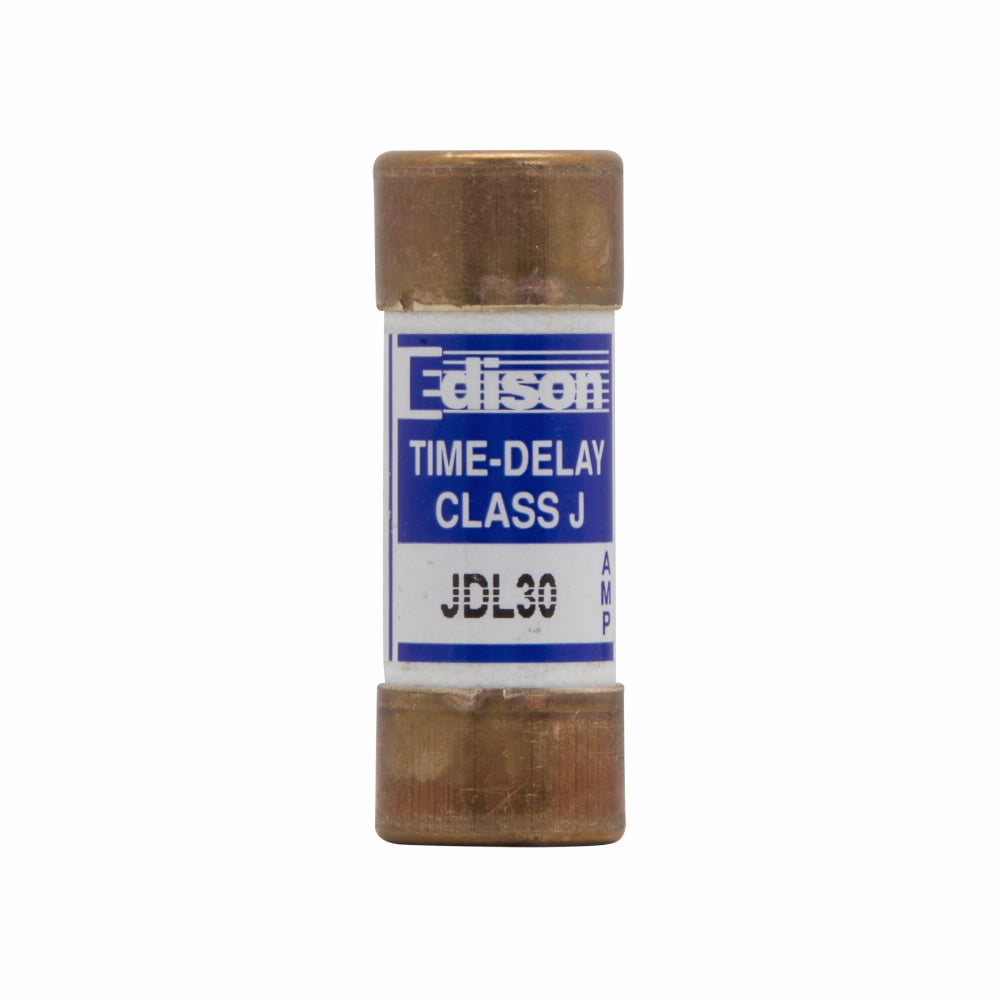

Edison Fuses JDL30 - Class J Fuse 30A 600V (300kA AIC)

Edison Fuses JDL30 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 30A current capacity and a 300kA interrupting rating at 600V AC for reliable short-circuit protection. The compact ferrule-connected fuse measures 2.25" in length with a 0.81" diameter cylindrical body weighing 2 lb, constructed to UL/CSA standards for safety compliance. Its fast-acting (Velocity D) characteristics make it ideal for protecting motors, transformers, and feeder circuits in commercial and industrial power distribution applications.

Key Features & Specifications

• Type: Class J time-delay low-voltage fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 2.25"L x 0.81"D (57.15mm x 20.57mm)
• Weight: 2 lb (0.91 kg)

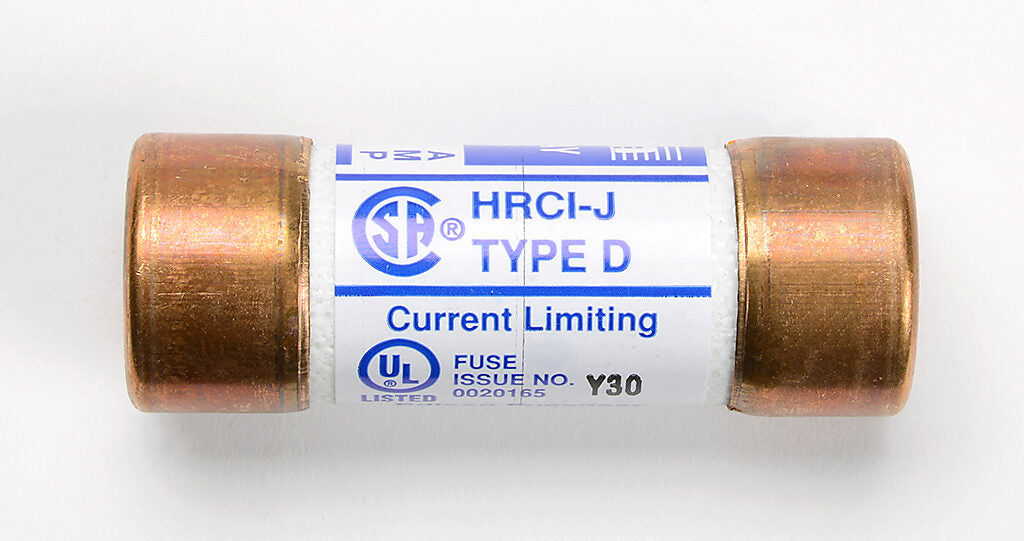

• Standards: UL/CSA listed
• Applications: Motor circuits, transformers, industrial power distribution
• AIC rating: 300kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Velocity: D (Fast-acting)
• Class Rating: J

Product Identification

• UPC: 078263480340
• GTIN: 00782634803409
