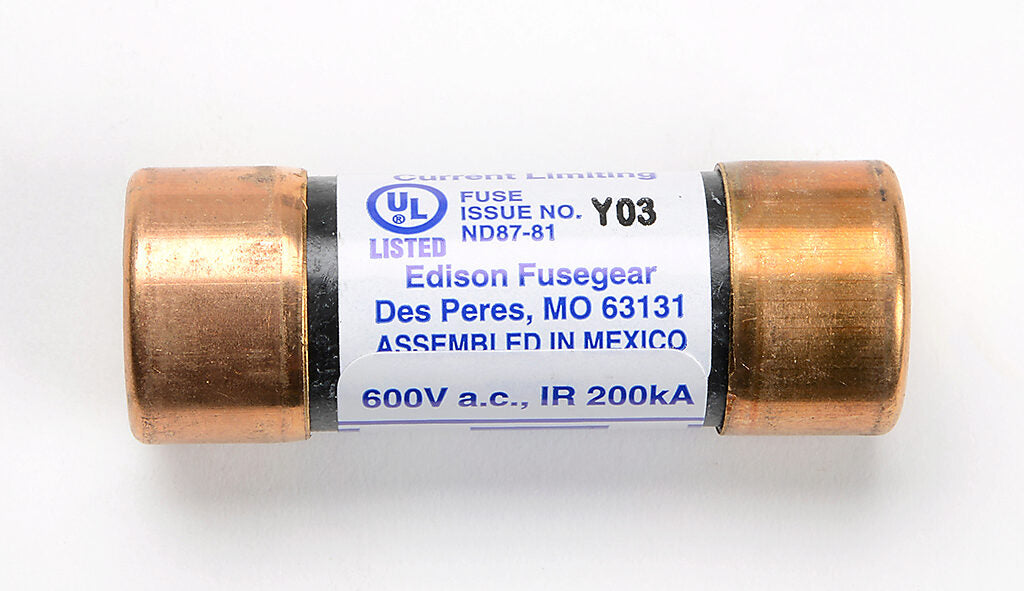

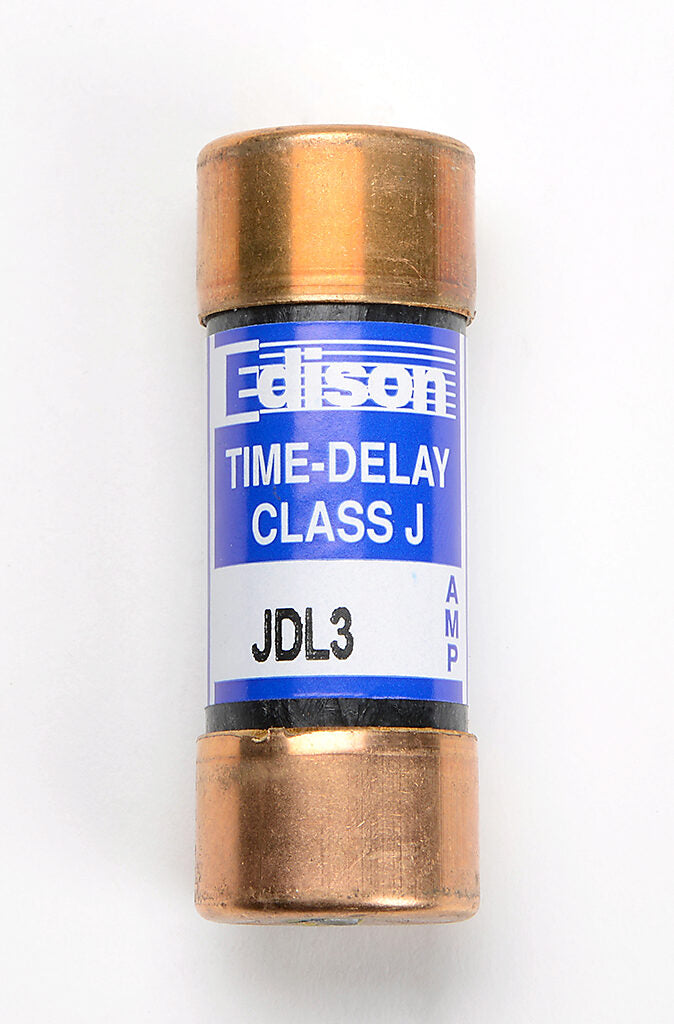

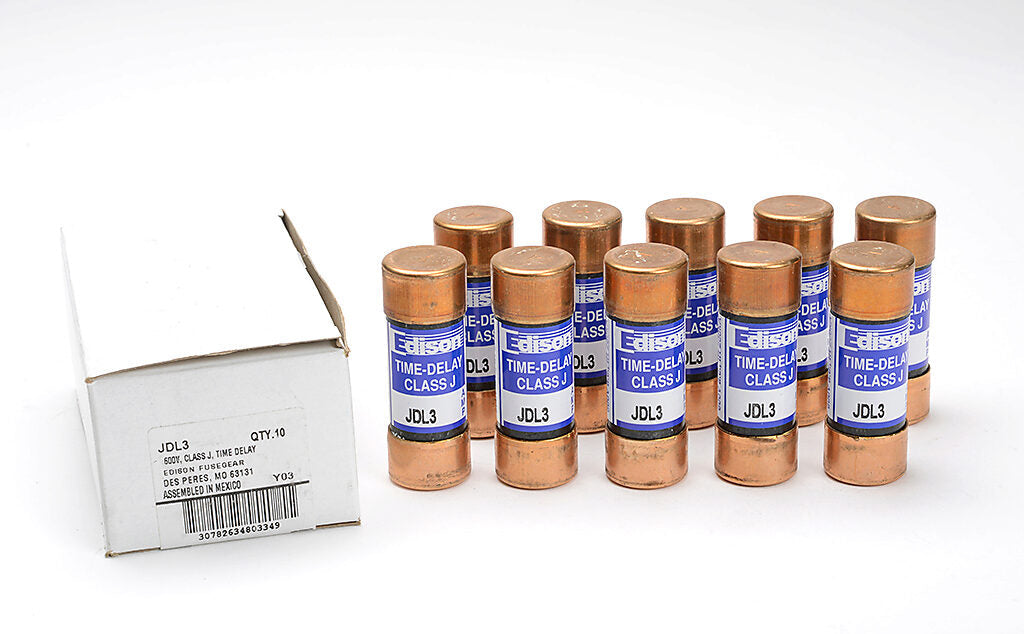

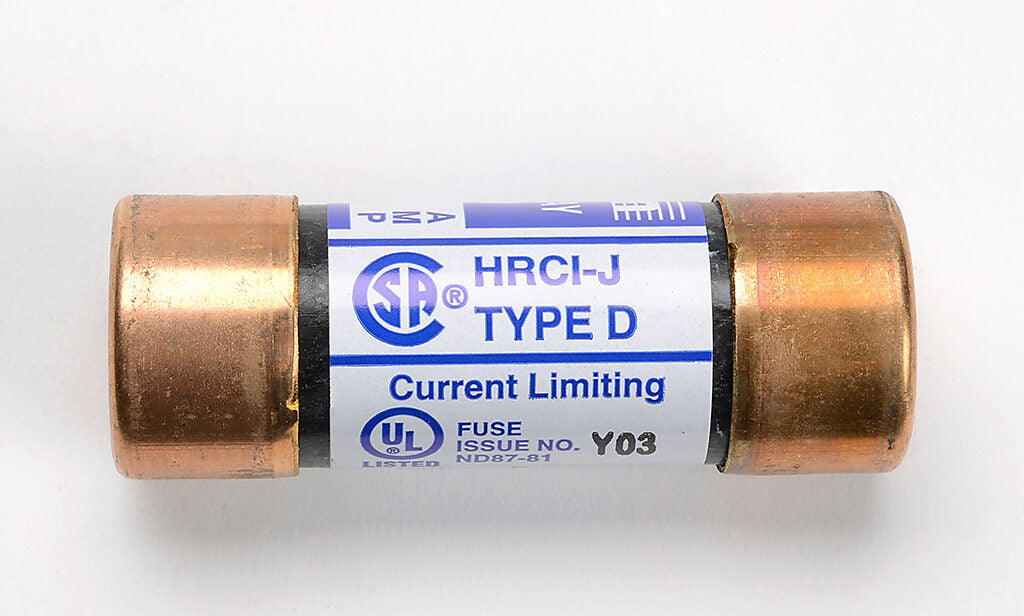

Edison Fuses JDL3 - Class J Time-Delay Fuse 3A 600V (300kA AIC)

Edison Fuses JDL3 is a low-voltage fuse designed for circuit protection in industrial electrical systems. This Class J ferrule-type fuse operates at 600V AC with a 3A current rating and a 300kA interrupting capacity at 600V AC, providing reliable short-circuit protection. The compact cylindrical design measures 2.25" in length with a 0.81" diameter and weighs 2 lb, featuring a single-barrel construction with D-speed operation. Compliant with industry standards for Class J fuses, it's commonly used in motor control centers, panelboards, and industrial power distribution systems where high fault current interruption is required.

Key Features & Specifications

• Type: Class J time-delay fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 3A
• Dimensions: 2.25"L x 0.81"W x 0.81"H
• Weight: 2 lb
• Diameter: 0.81"
• AIC Rating: 300kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Velocity: D (time-delay)
• Standards: Class J fuse specifications
• Applications: Industrial power distribution, motor protection, panelboards

Product Identification

• UPC: 78263480334
• GTIN: 00782634803348
