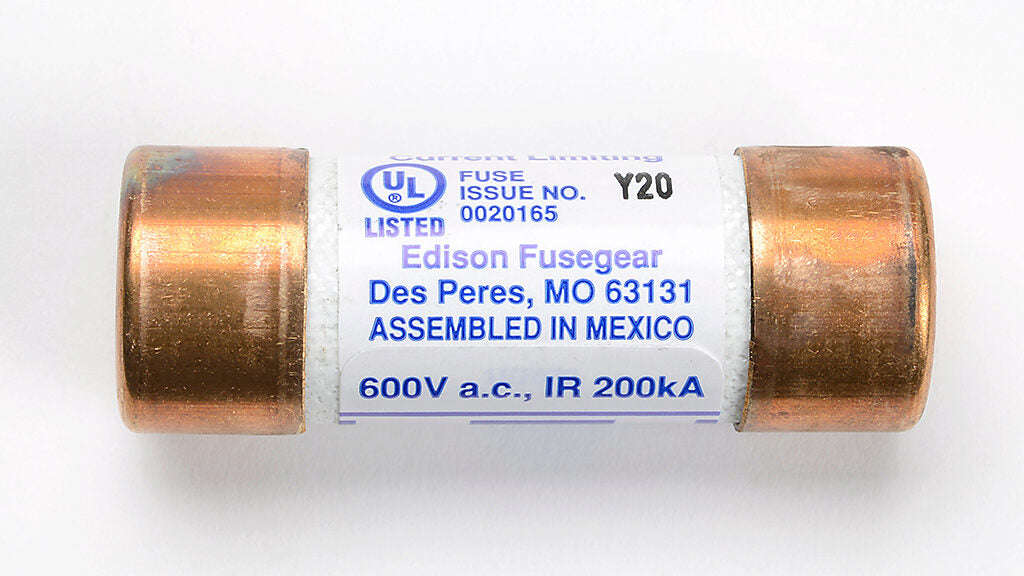

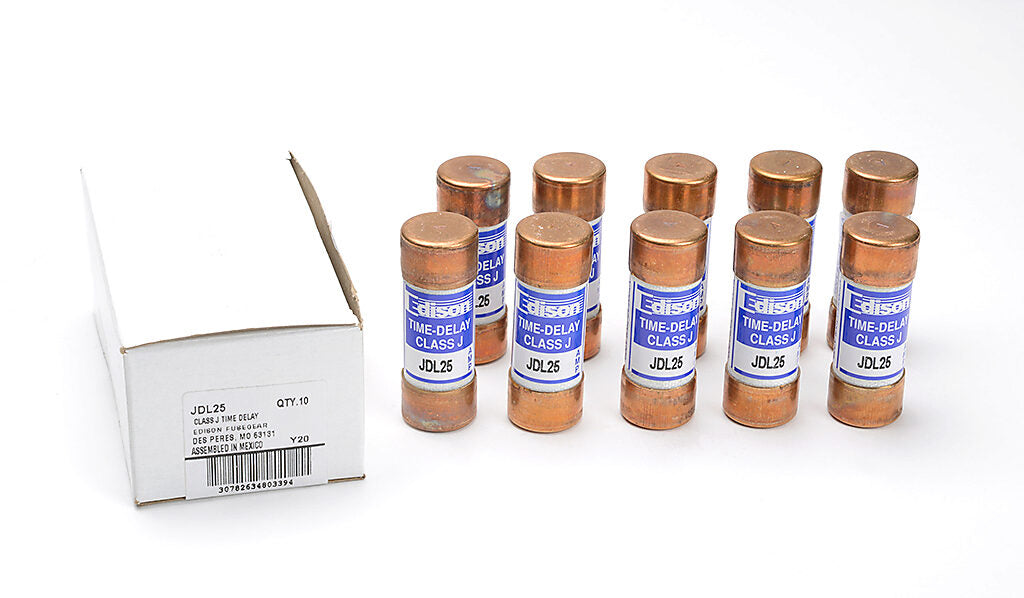

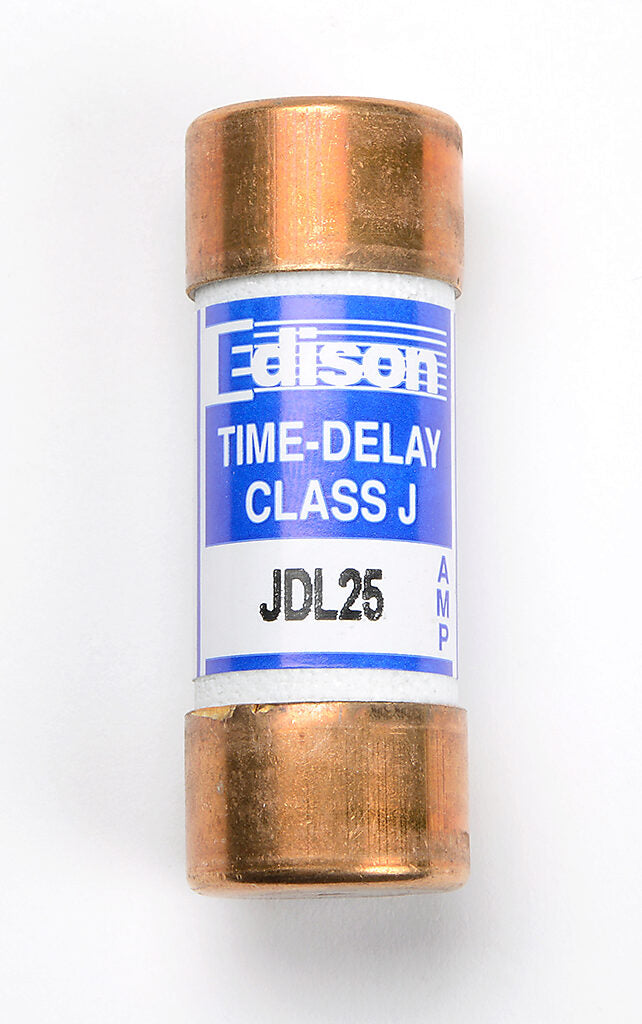

Edison Fuses JDL25 - Class J Fuse 25A 600V (200kA AIC)

Edison Fuses JDL25 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 25A current capacity and 200kA interrupting capacity at 600V for reliable short-circuit protection. The compact ferrule-connected fuse measures 2.25" × 0.81" × 0.81" (L×W×H) with a single-barrel construction meeting UL/CSA standards. Its Class J design provides fast-acting protection for motor circuits, transformers, and power distribution equipment where high fault current interruption is critical.

Key Features & Specifications

• Type: JDL fast-acting fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 25A
• Dimensions: 2.25" L × 0.81" W × 0.81" H (57.15 × 20.57 × 20.57mm)

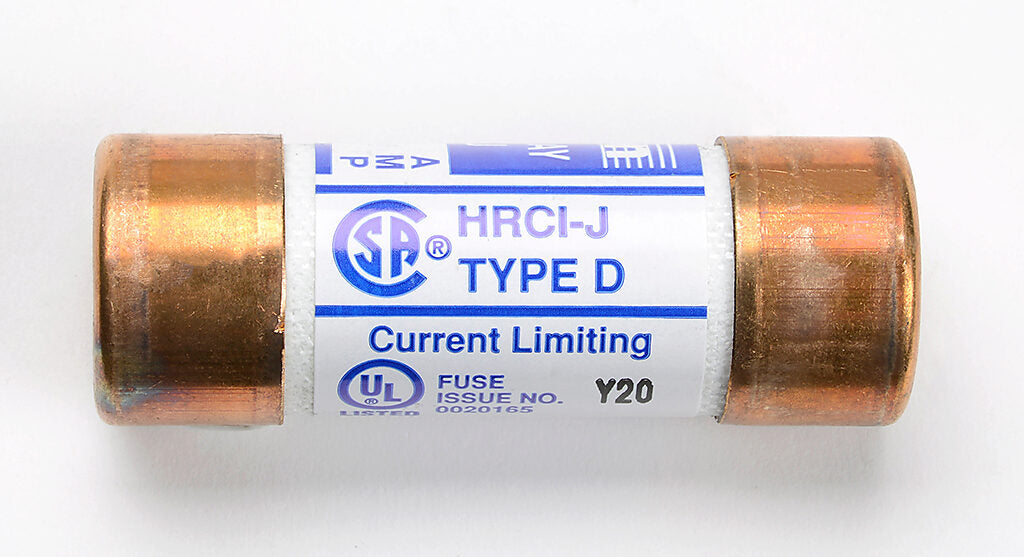

• Standards: UL/CSA listed, Class J
• Applications: Motor protection, transformers, industrial power distribution
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Diameter: 0.81" (20.57mm)
• Weight: 1 lb

Product Identification

• UPC: 782634803393
• GTIN: 00782634803393
