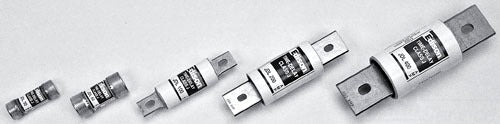

Edison Fuses JDL225 - Class J Fuse 225A 600V (200kA AIC)

Edison Fuses JDL225 is a Class J bolt-in low-voltage fuse designed for high-interrupting circuit protection in industrial electrical systems. It features a 600V AC rating with a 225A current capacity and 200kA interrupting rating at 600V for reliable fault current interruption. The fuse measures 7.13" in length with a 2.11" diameter, constructed with a single-barrel design and bolt-in termination for secure panel mounting. Compliant with industry standards for Class J fuses, it provides robust protection for motor circuits, transformers, and heavy industrial equipment requiring high fault current protection.

Key Features & Specifications

• Type: Class J time-delay fuse with bolt-in connection
• Voltage Rating: 600V AC
• Current Rating: 225A
• Dimensions: 7.13"L x 2.13"W x 2.13"H
• Weight: 1 lb
• Diameter: 2.11"
• Standards: Class J fuse specifications
• Applications: Industrial motor protection, transformer circuits, panelboards
• Connection: Bolt-In
• Barrels: 1
• AIC rating: 200kA@600V
• Class Rating: J

Product Identification

• UPC: 78263480355
• GTIN: 00782634803553
