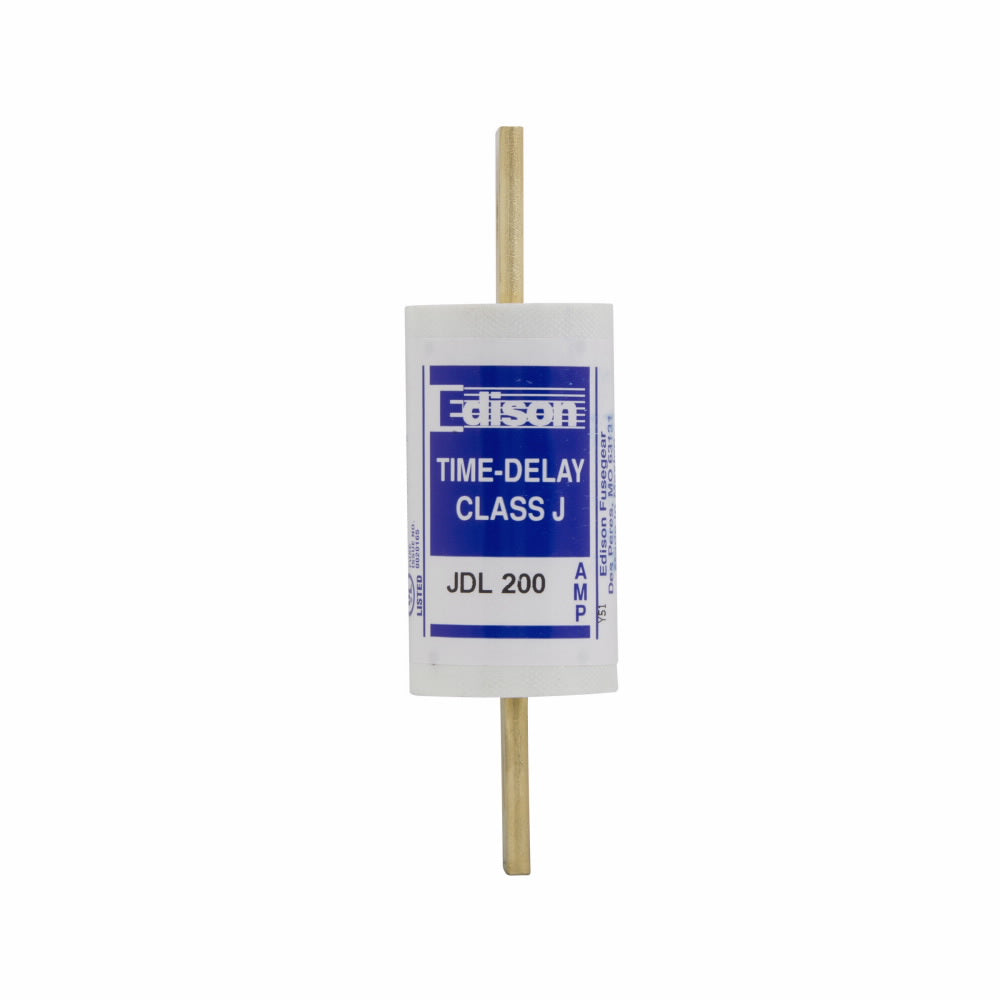

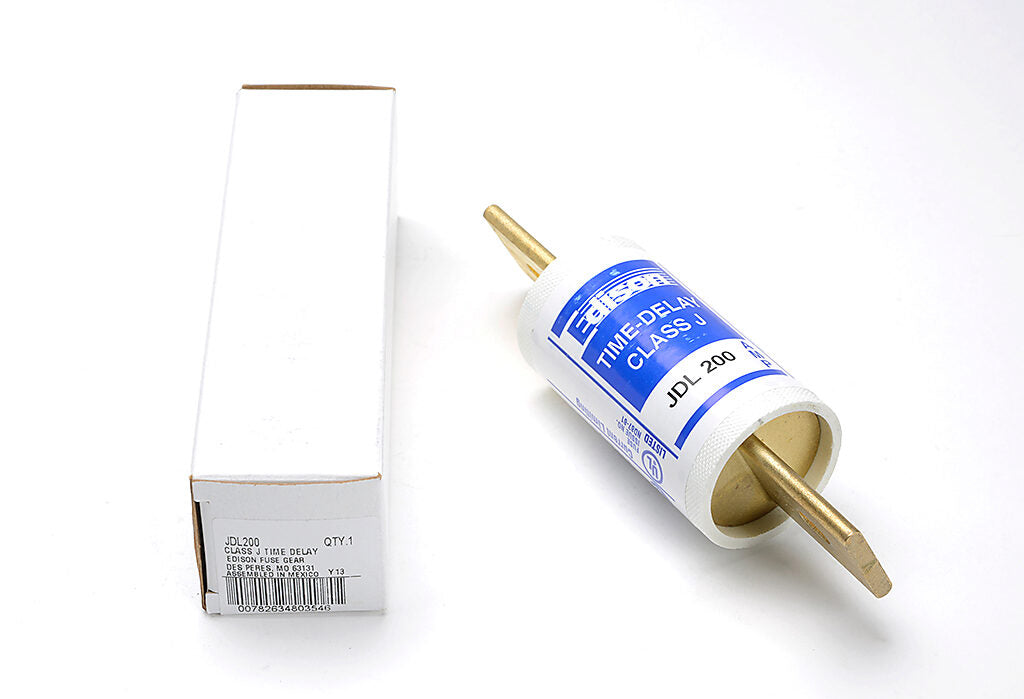

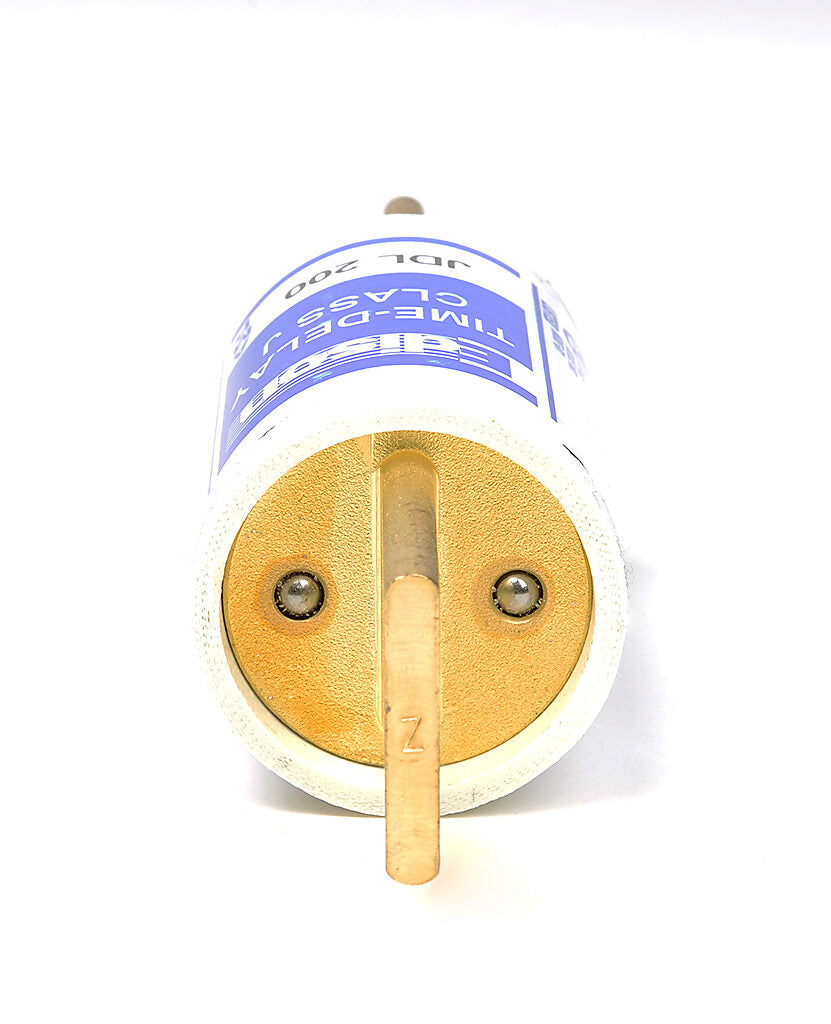

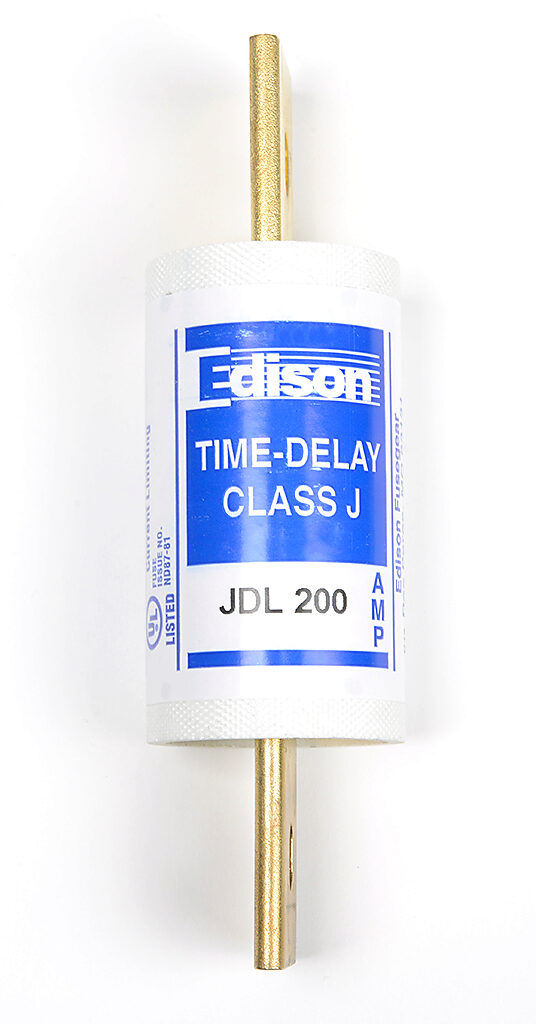

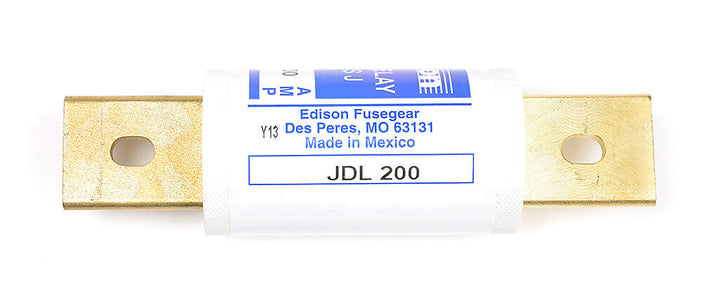

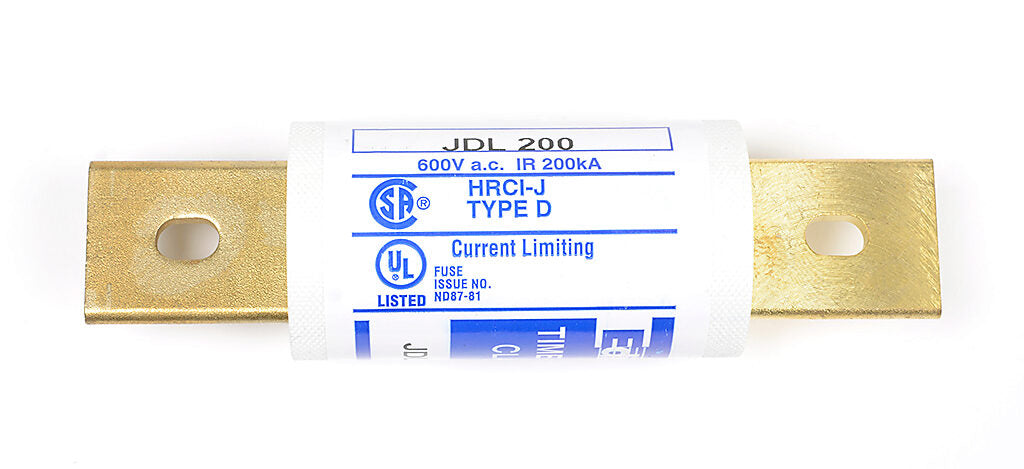

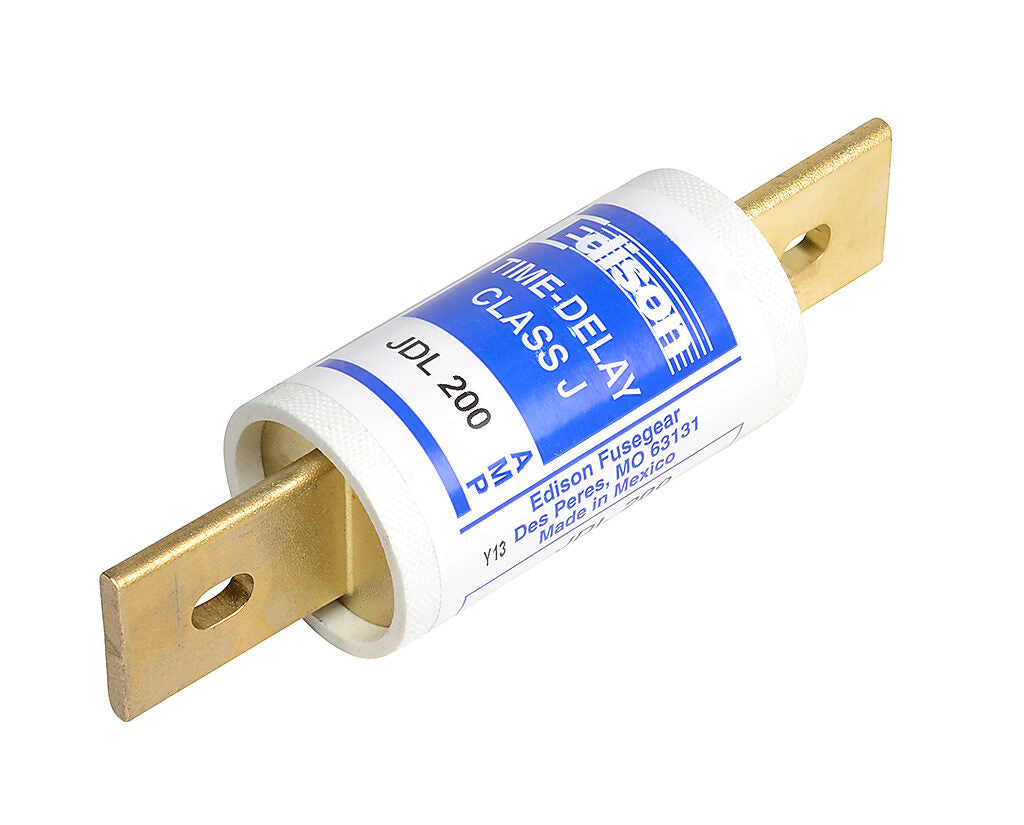

Edison Fuses JDL200 - Class J Fuse 200A 600V (200kA AIC)

Edison Fuses JDL200 is a low-voltage fuse designed for high-current circuit protection in industrial applications. This Class J bolt-in fuse features a 600V AC rating with a 200A current capacity and 200kA interrupting rating at 600V for reliable fault protection. The durable construction measures 5.75" in length with a 1.63" diameter barrel, weighing 1 lb, meeting stringent industry standards for electrical safety. Its bolt-in connection ensures secure installation in panelboards and switchgear, making it suitable for motor protection, transformer circuits, and heavy industrial equipment.

Key Features & Specifications

• Type: JDL Class low-voltage current-limiting fuse
• Voltage: 600V AC
• Current: 200A
• Dimensions: 5.75"L x 1.63"W x 1.63"H
• Weight: 1 lb
• Diameter: 1.63"
• Connection: Bolt-in
• Barrels: 1
• AIC rating: 200kA@600V
• Class Rating: J

Product Identification

• UPC: 78263480354
• GTIN: 00782634803546
