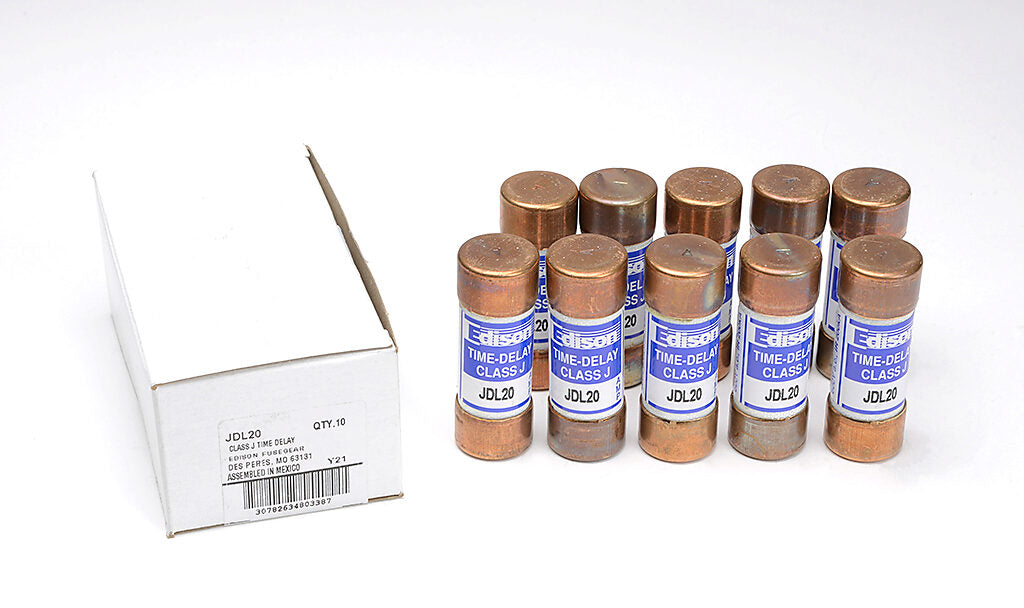

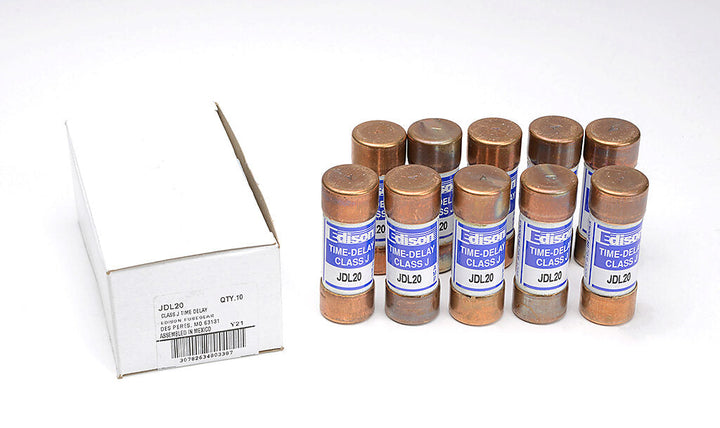

Edison Fuses JDL20 - Class J Time-Delay Fuse 20A@600V (200kA AIC)

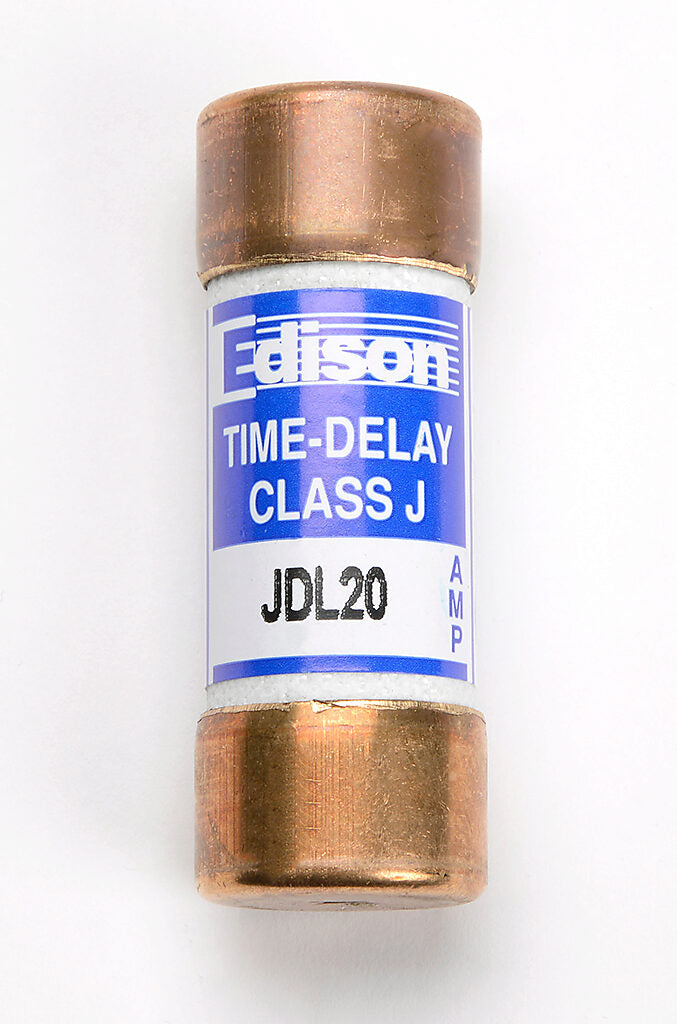

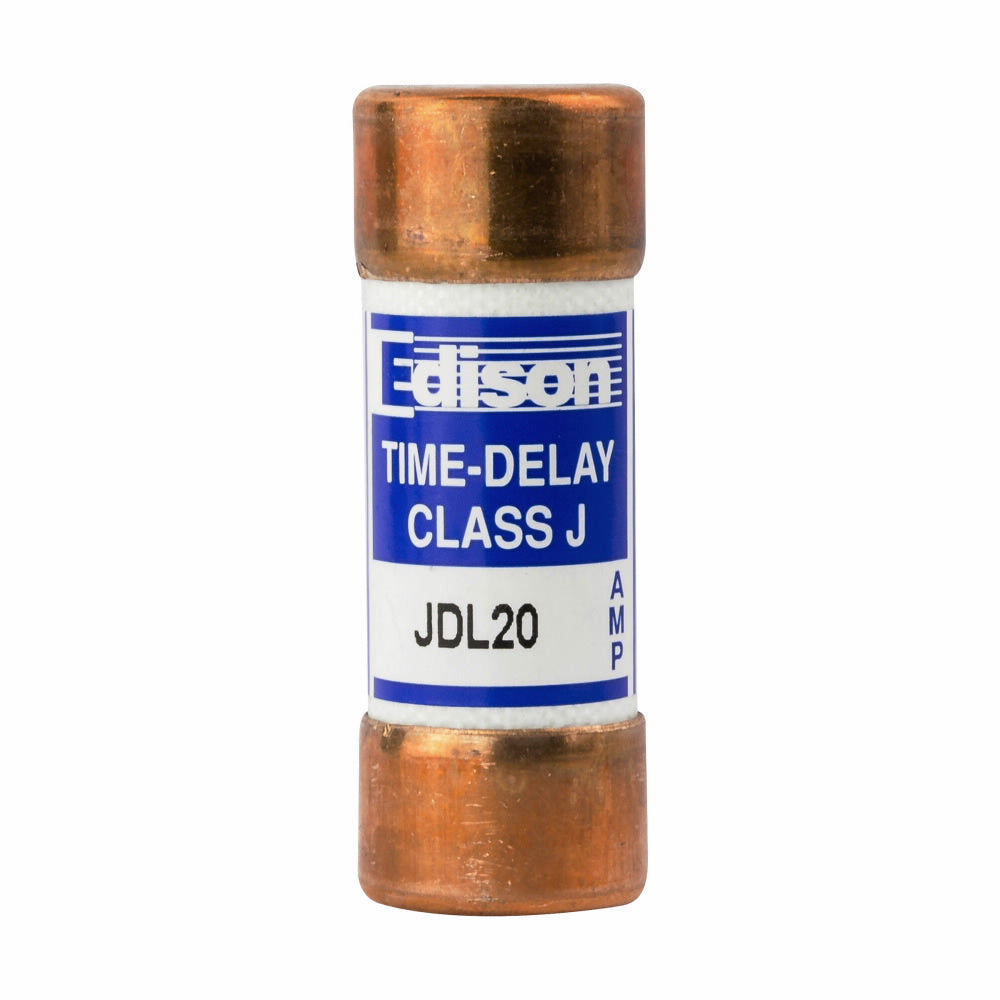

Edison Fuses JDL20 is a low-voltage fuse designed for circuit protection in industrial electrical systems. This Class J fuse features a 600V AC rating with a 20A current capacity and 200kA interrupting rating at 600V for reliable overcurrent protection. The compact ferrule-style fuse measures 2.25" in length with a 0.81" diameter cylindrical body constructed to UL/CSA standards. Its single-barrel design with Class J time-delay characteristics provides selective coordination for motor circuits and transformer protection. Typical applications include industrial control panels, HVAC systems, and power distribution equipment requiring high fault current interruption.

Key Features & Specifications

• Type: JDL time-delay fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 20A
• Dimensions: 2.25"L x 0.81"D (57.15mm x 20.57mm)

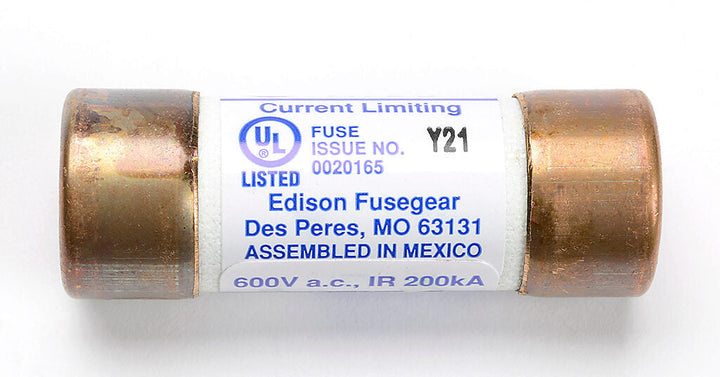

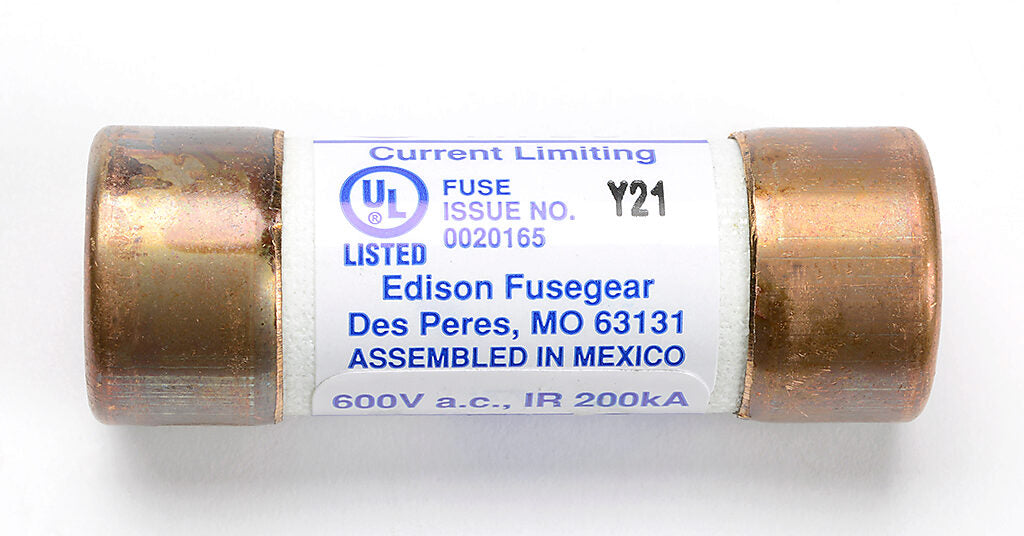

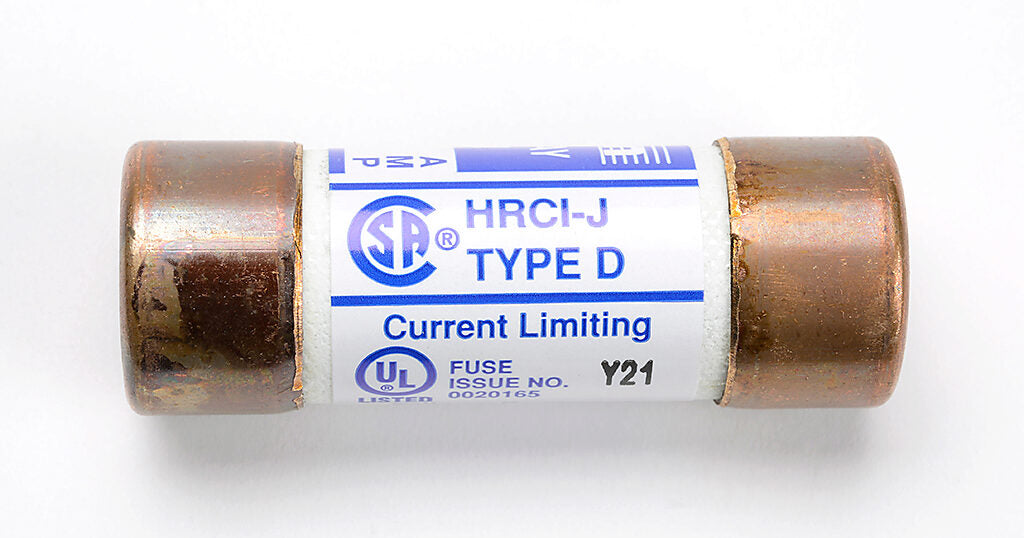

• Standards: UL/CSA listed
• Applications: Motor circuits, transformers, industrial controls
• Class Rating: J
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Weight: 1 lb

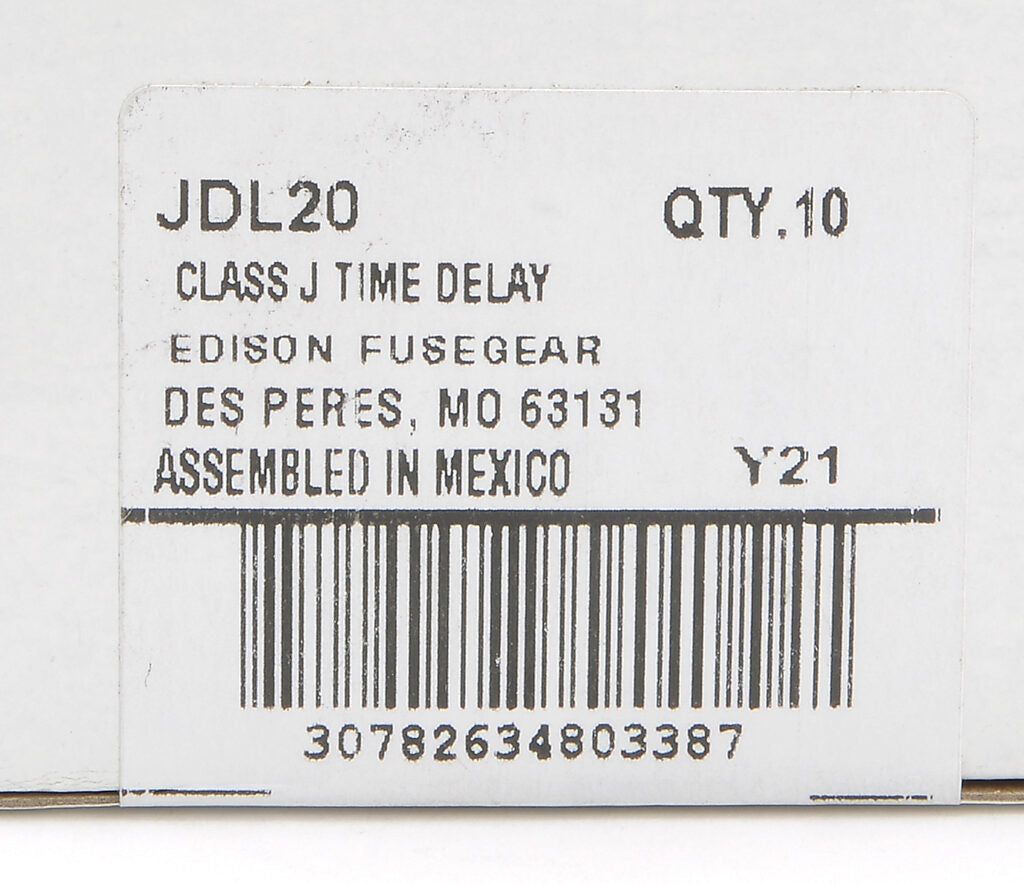

Product Identification

• UPC: 782634803386
• GTIN: 00782635000000
