Edison Fuses JDL2 - Class J Fuse 2A 600V (200kA AIC)

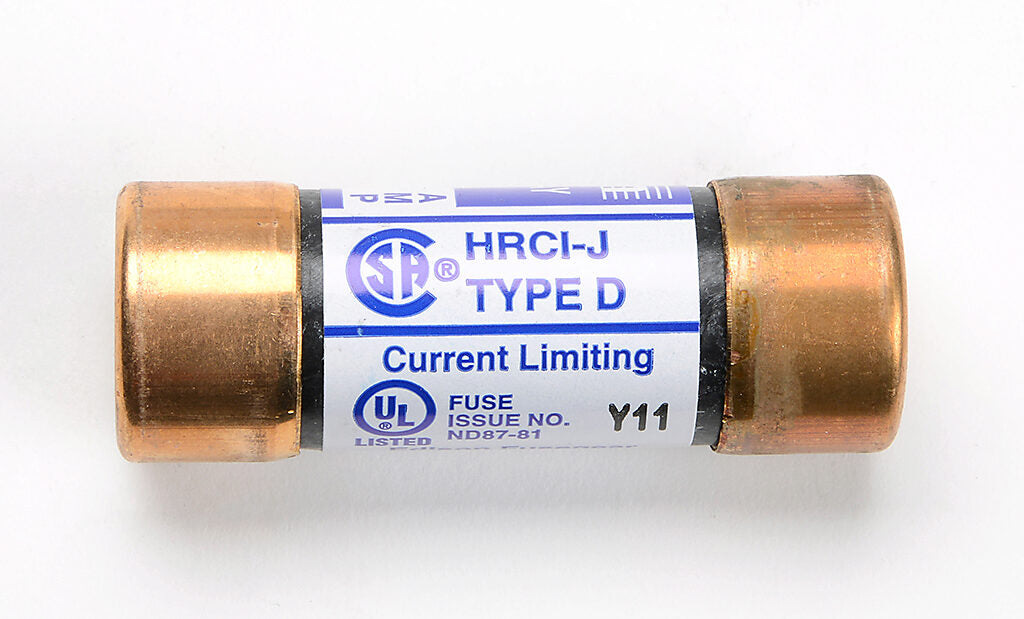

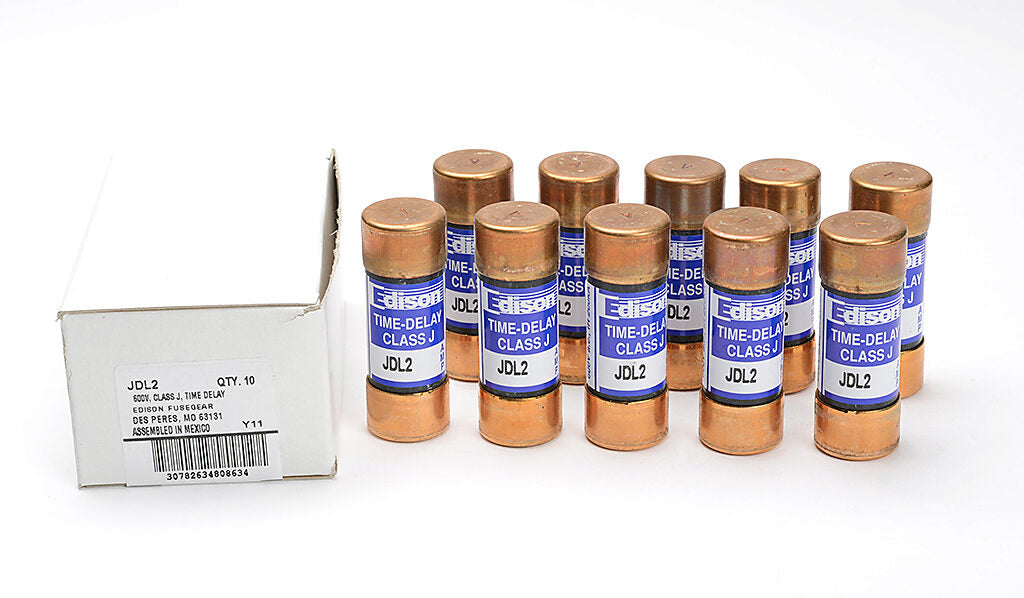

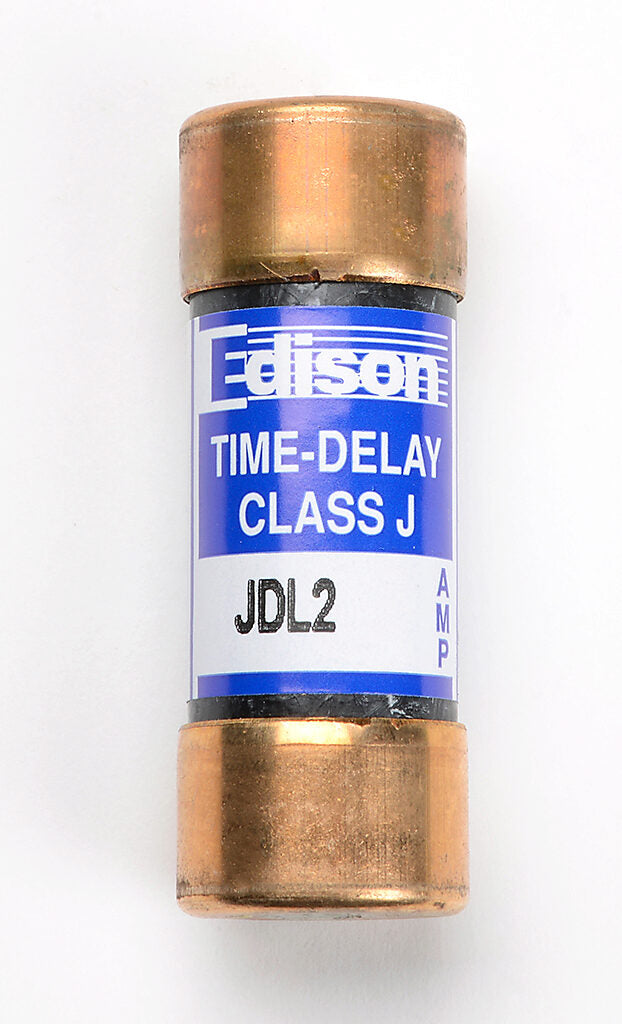

Edison Fuses JDL2 is a low-voltage fuse designed for circuit protection in industrial applications. This Class J fuse features a 600V AC rating with a 2A current capacity and 200kA interrupting rating at 600V for reliable overcurrent protection. The compact ferrule-connected design measures 2.25" × 0.81" × 0.81" (57.15 × 20.57 × 20.57 mm) with a single barrel construction, weighing 1 lb for easy installation. UL-listed and compliant with industry standards, it's engineered for motor control centers, industrial control panels, and power distribution systems requiring high interrupting capacity protection.

Key Features & Specifications

• Type: Class J time-delay low-voltage fuse
• Voltage Rating: 600V AC
• Current Rating: 2A
• Dimensions: 2.25" L × 0.81" W × 0.81" H (57.15 × 20.57 × 20.57 mm)
• Standards: UL Listed
• Applications: Motor protection, industrial controls, power distribution
• Connection: Ferrule
• Barrels: 1

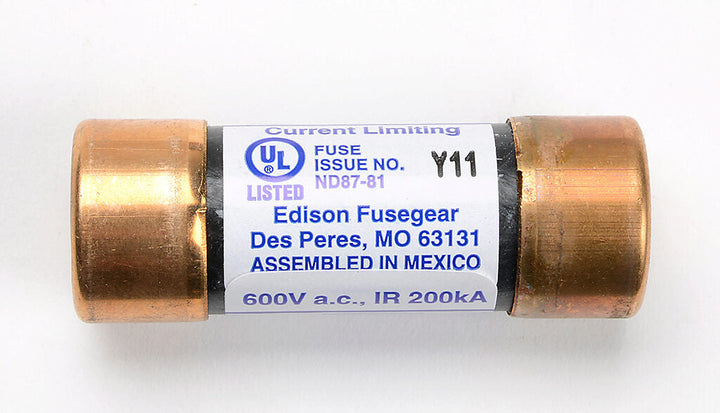

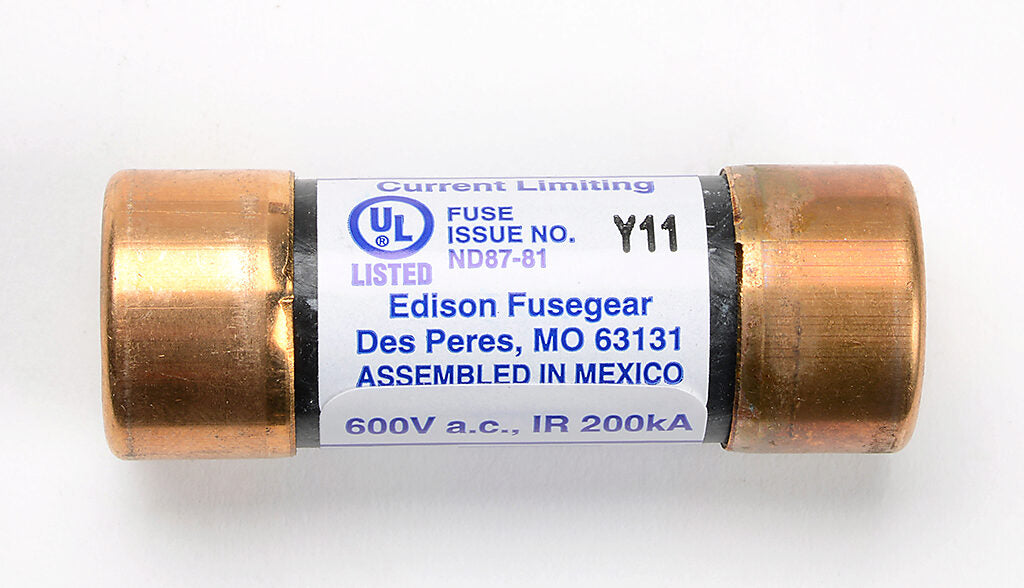

• AIC rating: 200kA@600V
• Diameter: 0.81" (20.57 mm)
• Weight: 1 lb

Product Identification

• UPC: 782634808633
• GTIN: 00782634808633
