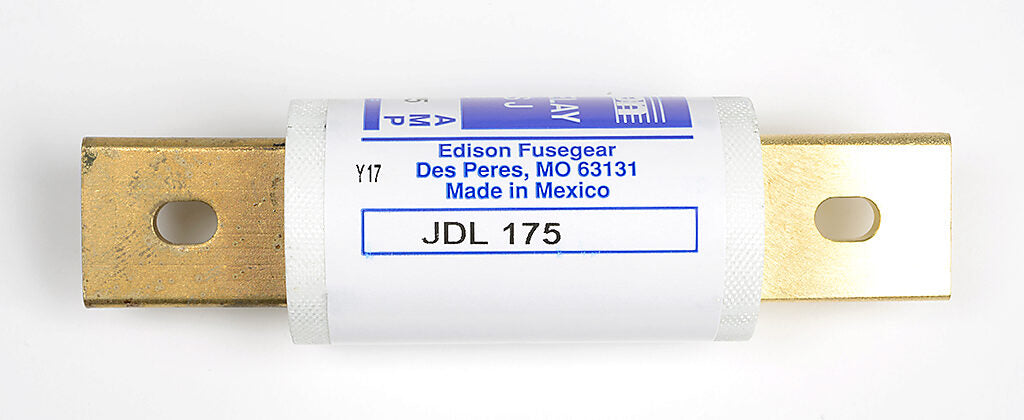

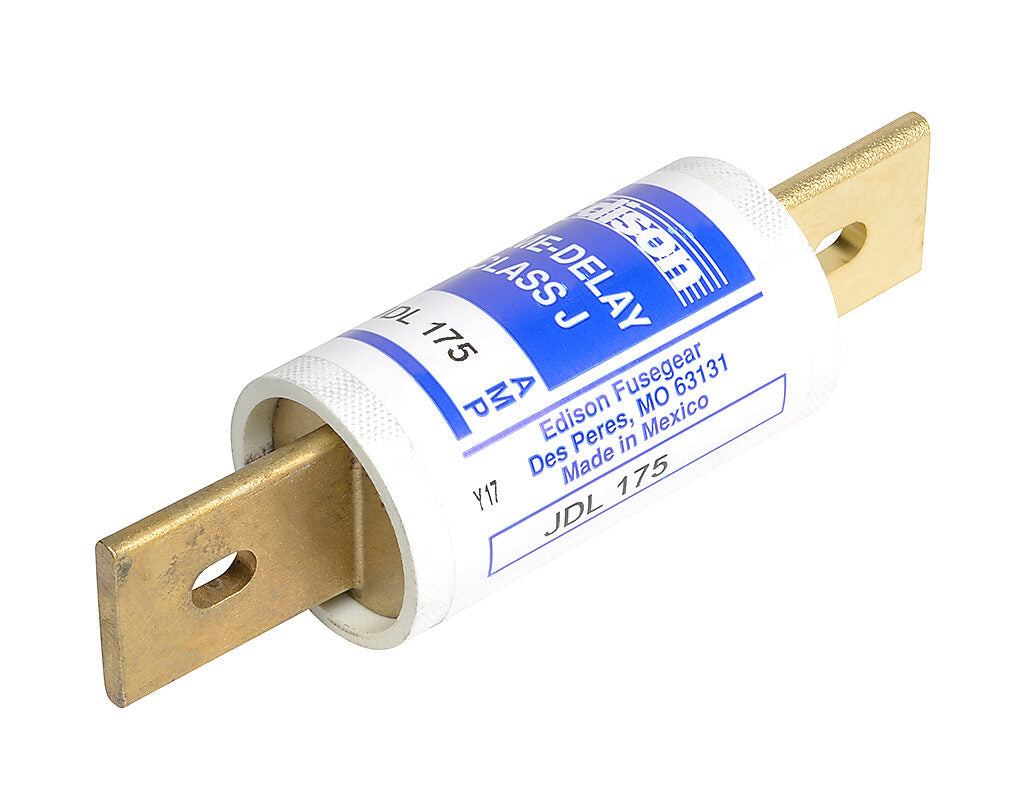

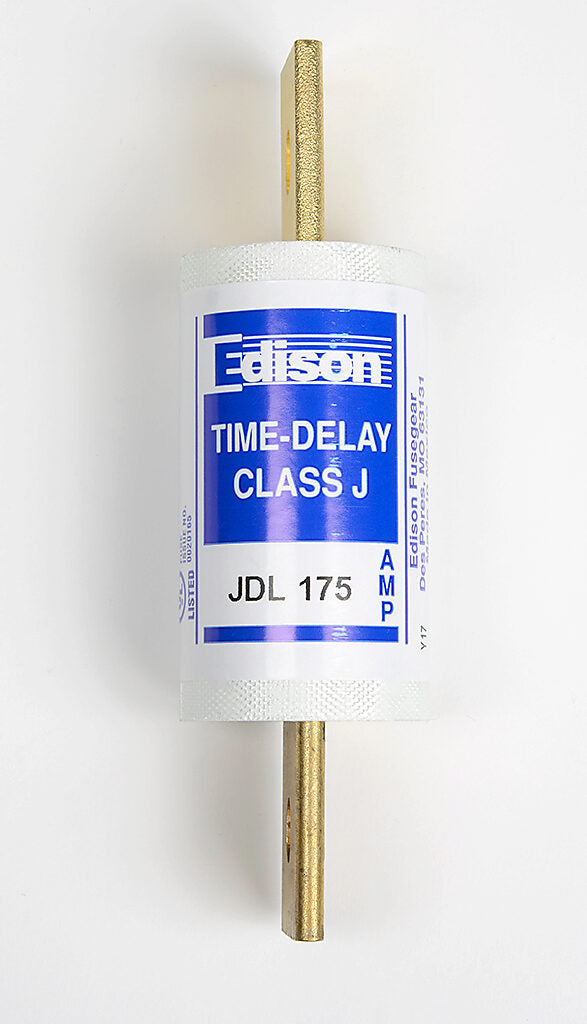

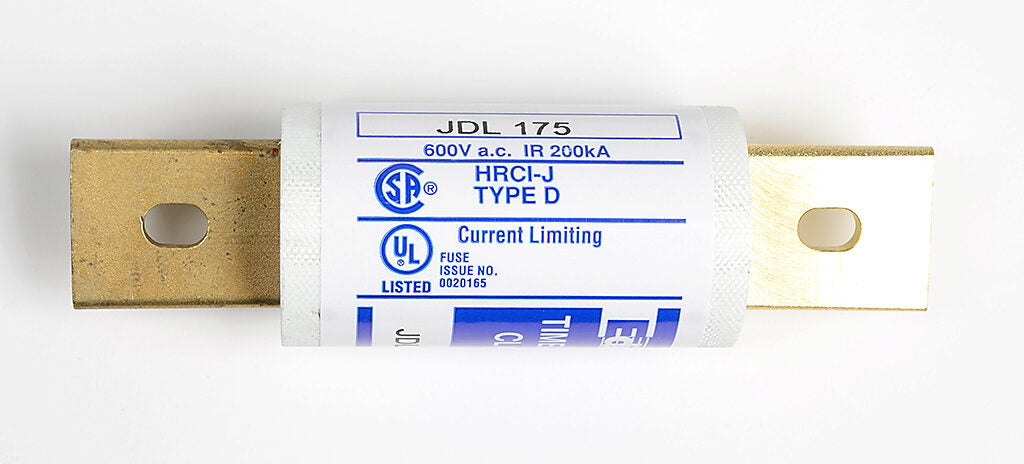

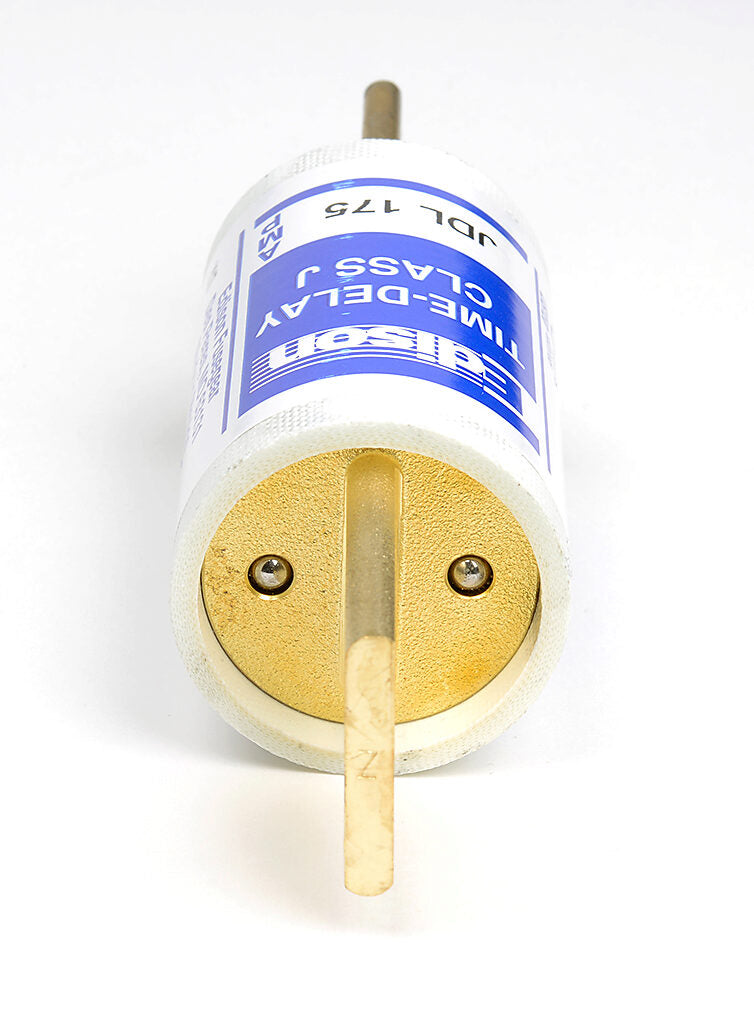

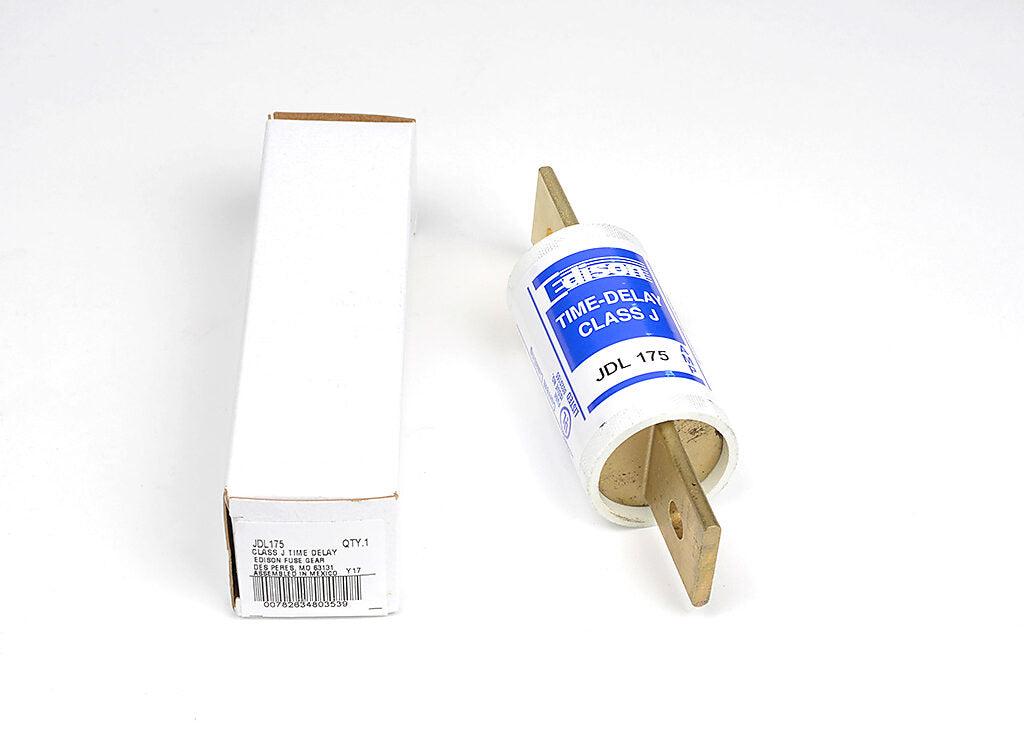

Edison Fuses JDL175 - Class J Fuse 175A 600V (300kA AIC)

Edison Fuses JDL175 is a Class J low-voltage fuse designed for circuit protection in industrial power distribution systems. Rated for 600V AC operation with a 175A current capacity, it features a bolt-in blade connection and D-speed interruption characteristics for rapid fault clearing. The fuse measures 5.75" in length with a 1.63" diameter barrel construction, weighing 5.25 lb, and meets industry standards with a 300kA interrupting rating at 600V AC. Typical applications include motor branch circuits, transformer protection, and heavy industrial equipment where high interrupting capacity is required.

Key Features & Specifications

• Type: Class J time-delay fuse with bolt-in blade connection
• Voltage Rating: 600V AC
• Current Rating: 175A
• Dimensions: 5.75"L x 1.63"W x 1.63"H
• Weight: 5.25 lb
• Diameter: 1.63"
• Barrels: 1
• Velocity: D-speed interruption
• AIC Rating: 300kA @ 600V AC
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, motor protection, transformer circuits

Product Identification

• UPC: 78263480353
• GTIN: 00782634803539
