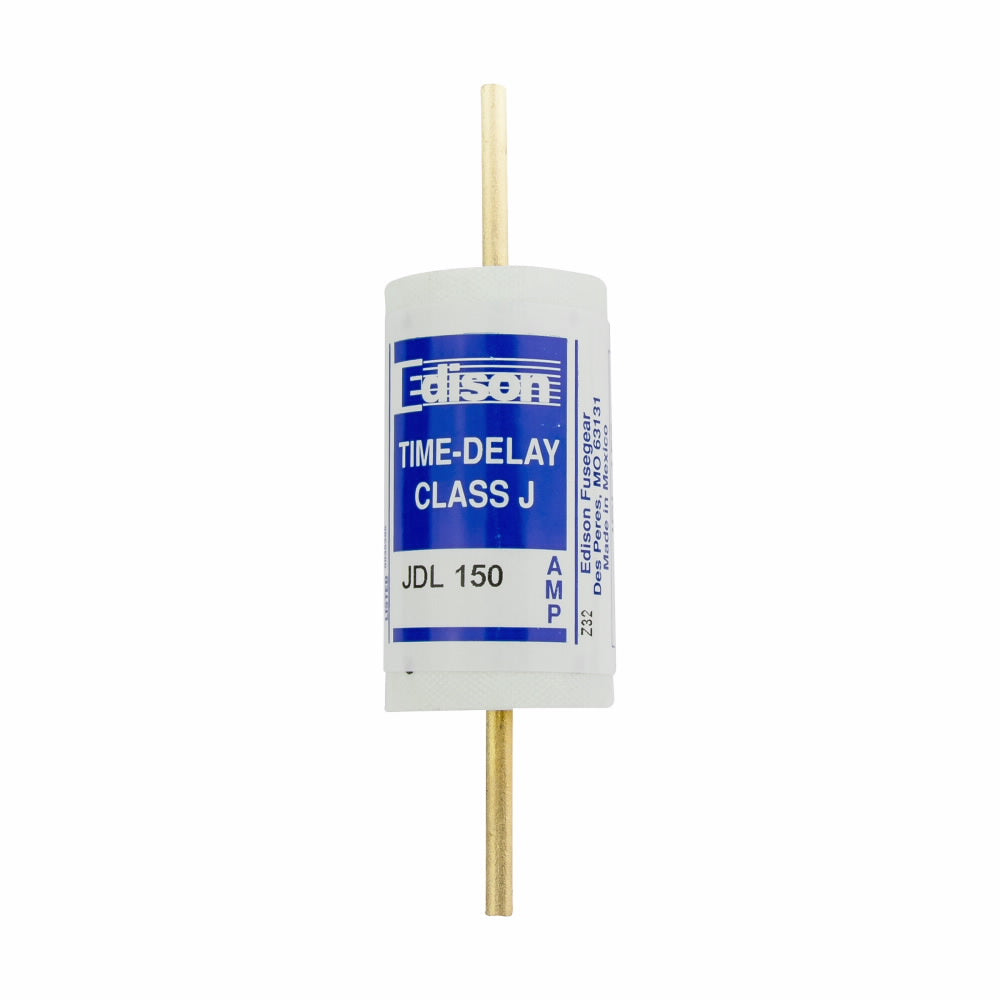

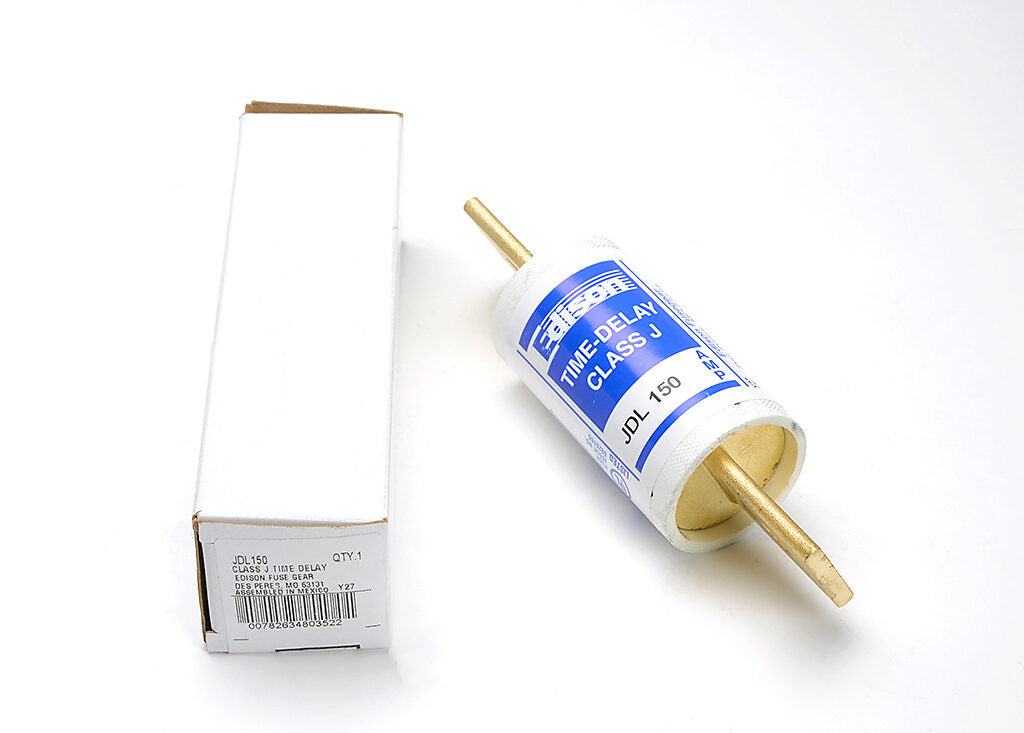

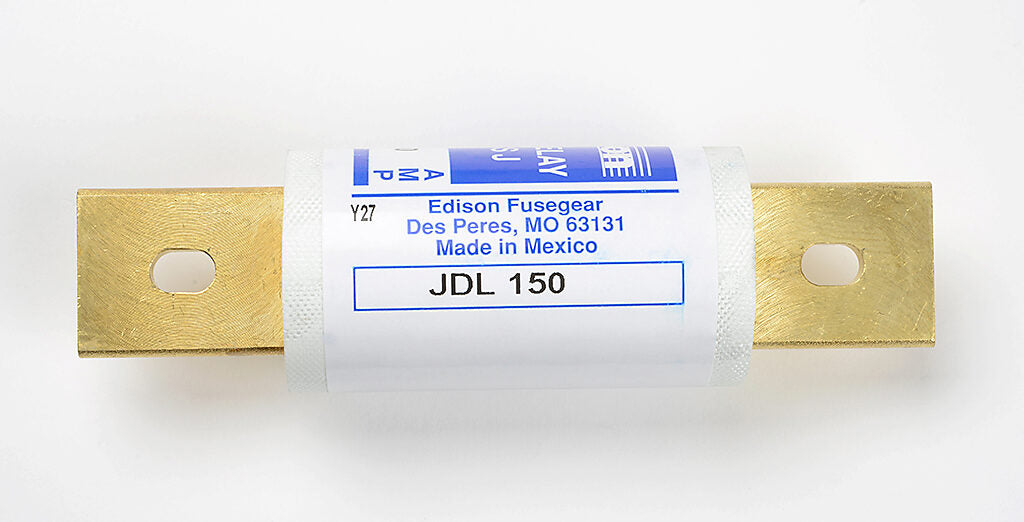

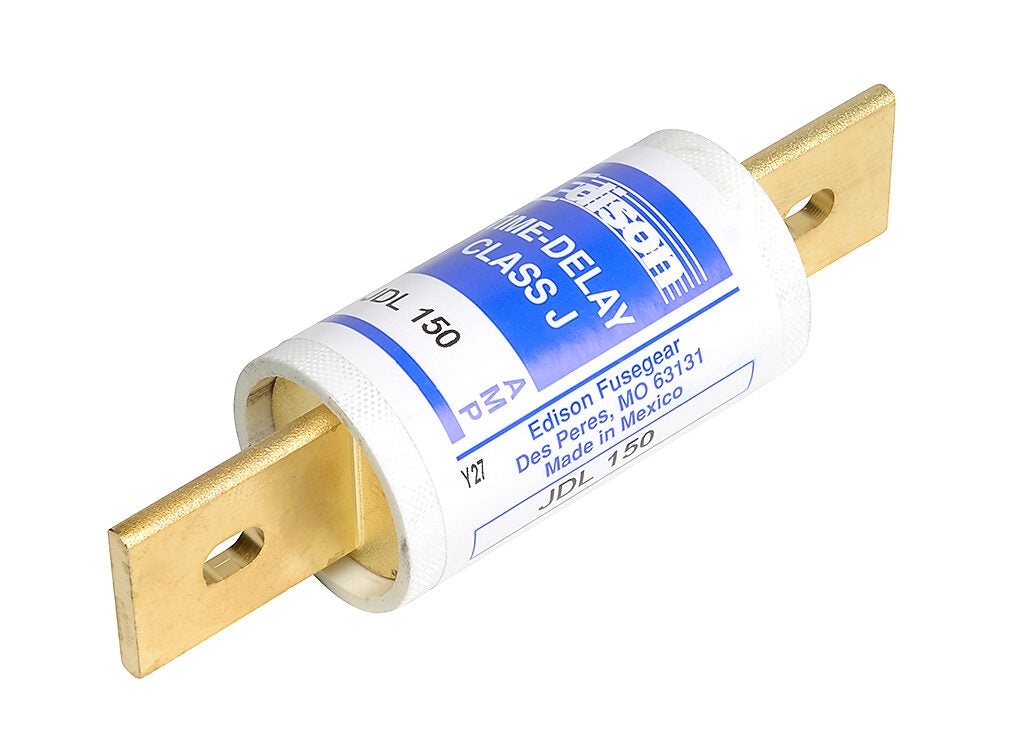

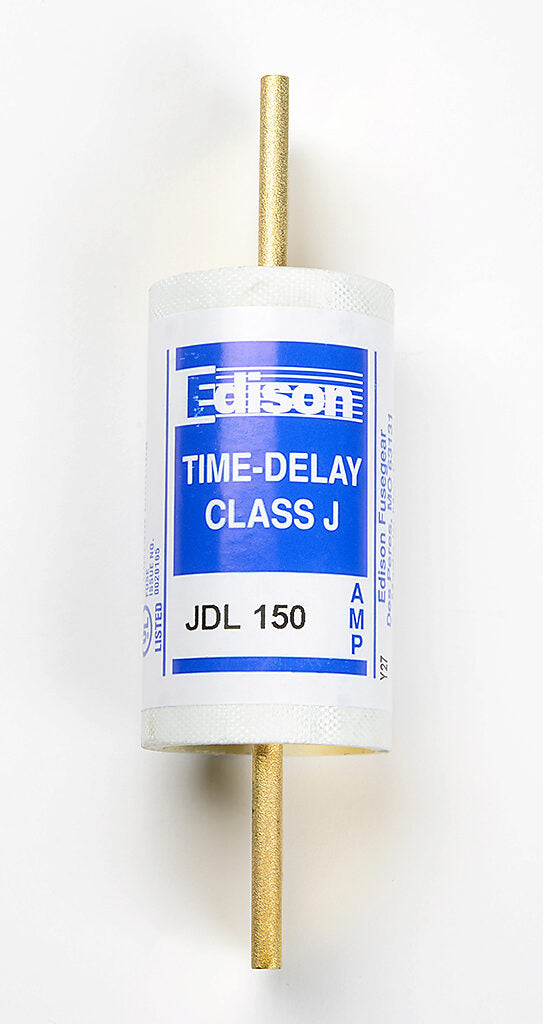

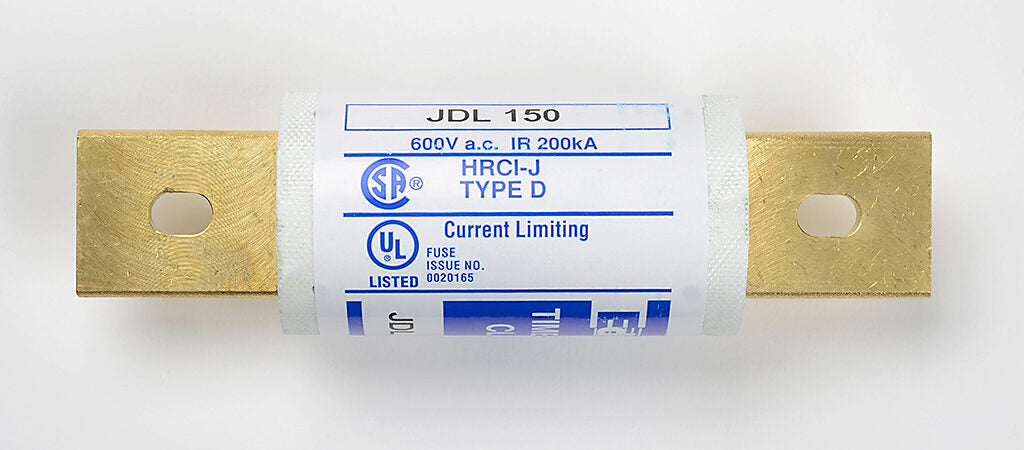

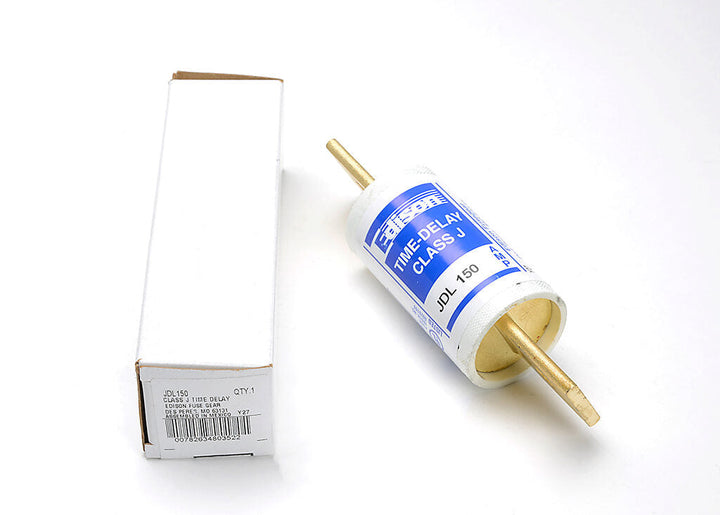

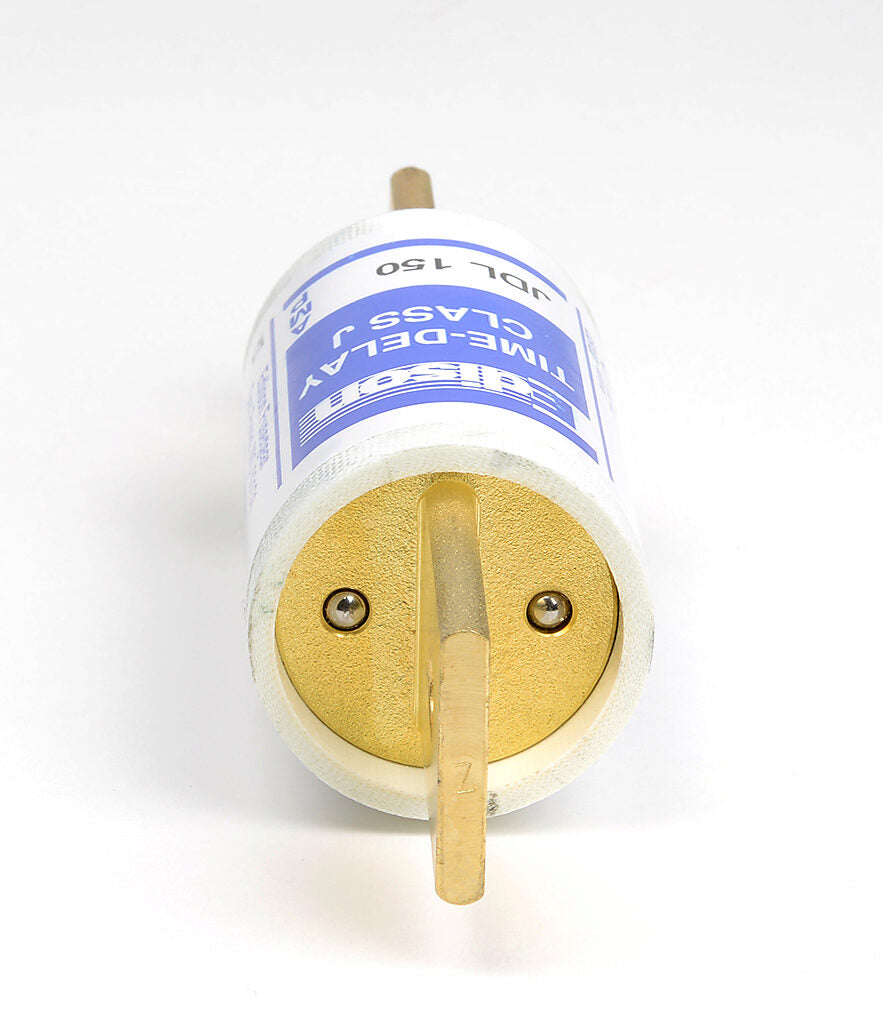

Edison Fuses JDL150 - Class J Fuse 150A (300kA AIC @600VAC)

Edison Fuses JDL150 is a Class J bolt-in blade fuse designed for industrial circuit protection in low-voltage applications. This 600VAC-rated fuse features a 150A current rating with a 300kA interrupting capacity at 600VAC, housed in a durable 5.75" x 1.63" x 1.63" (LxWxH) package weighing 2 lb. Compliant with industry standards for Class J fuses, it utilizes a single-barrel D-speed design with bolt-in blade terminals for secure electrical connections in power distribution systems, motor protection circuits, and heavy equipment panels.

Key Features & Specifications

• Type: Class J time-delay fuse with bolt-in blade connection
• Voltage Rating: 600VAC
• Current Rating: 150A
• Dimensions: 5.75" L x 1.63" W x 1.63" H (146.05mm x 41.4mm x 41.4mm)
• Standards: Class J compliance
• Applications: Industrial power distribution, motor protection
• Connection: Bolt-In Blade
• Barrels: 1
• Velocity: D-speed operation
• AIC rating: 300kA@600VAC
• Diameter: 1.63" (41.4mm)
• Weight: 2 lb (0.91kg)

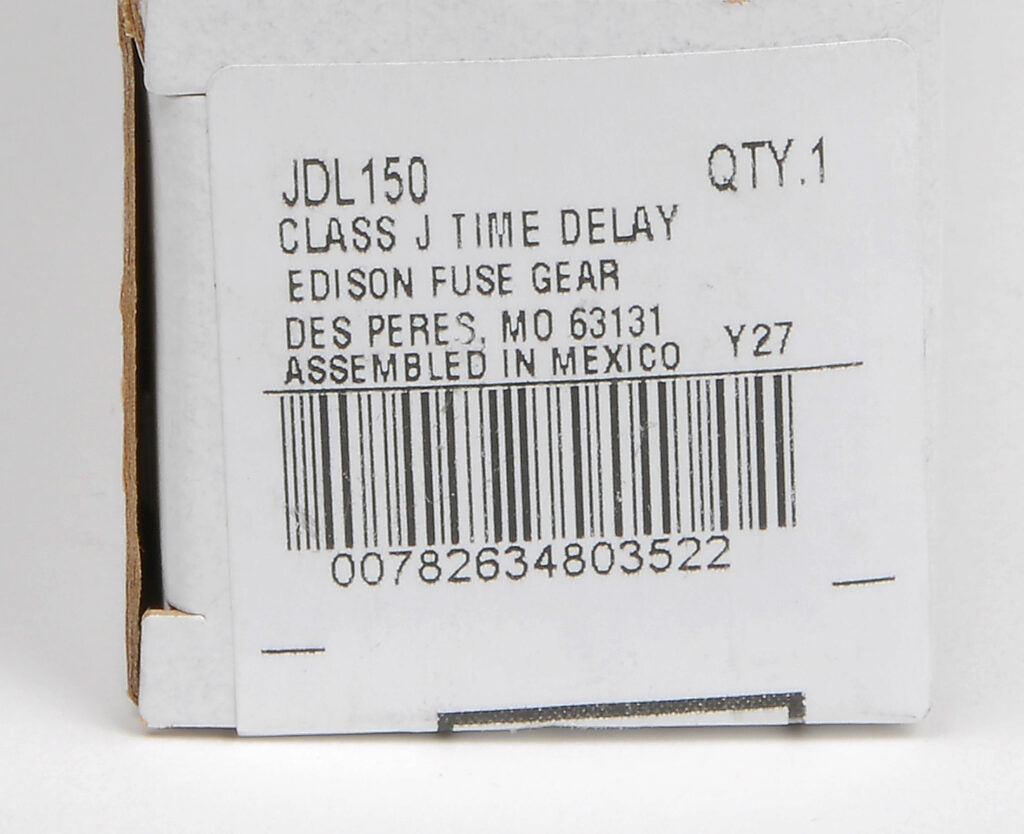

Product Identification

• UPC: 78263480352
• GTIN: 00782634803522
