Edison Fuses JDL15 - Class J Fuse 15A@600V (300kA AIC)

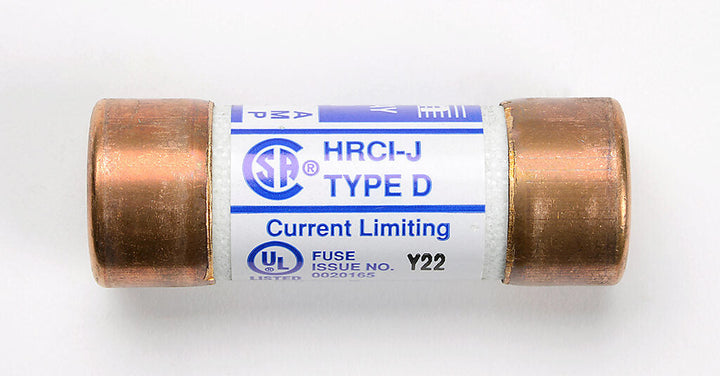

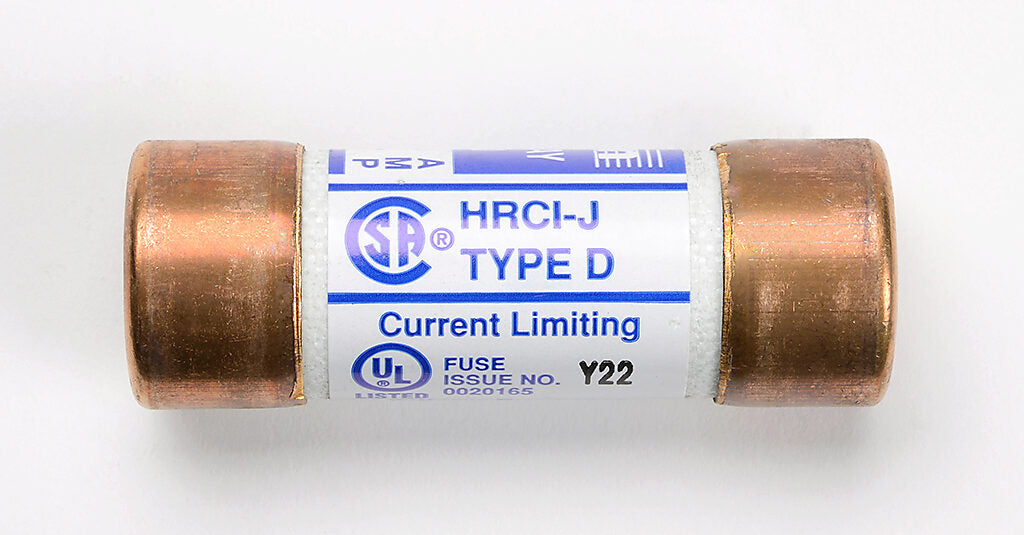

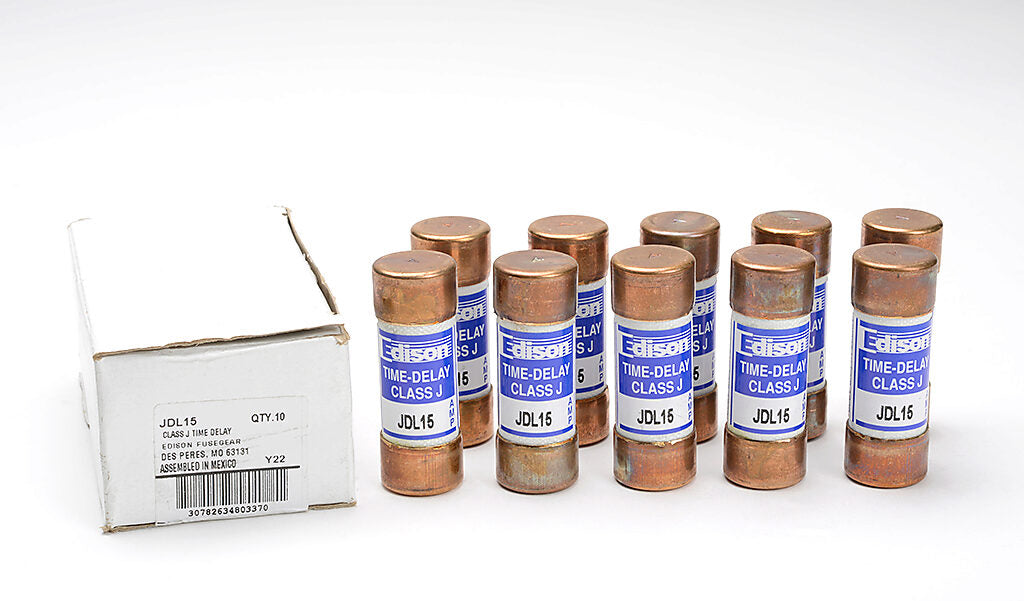

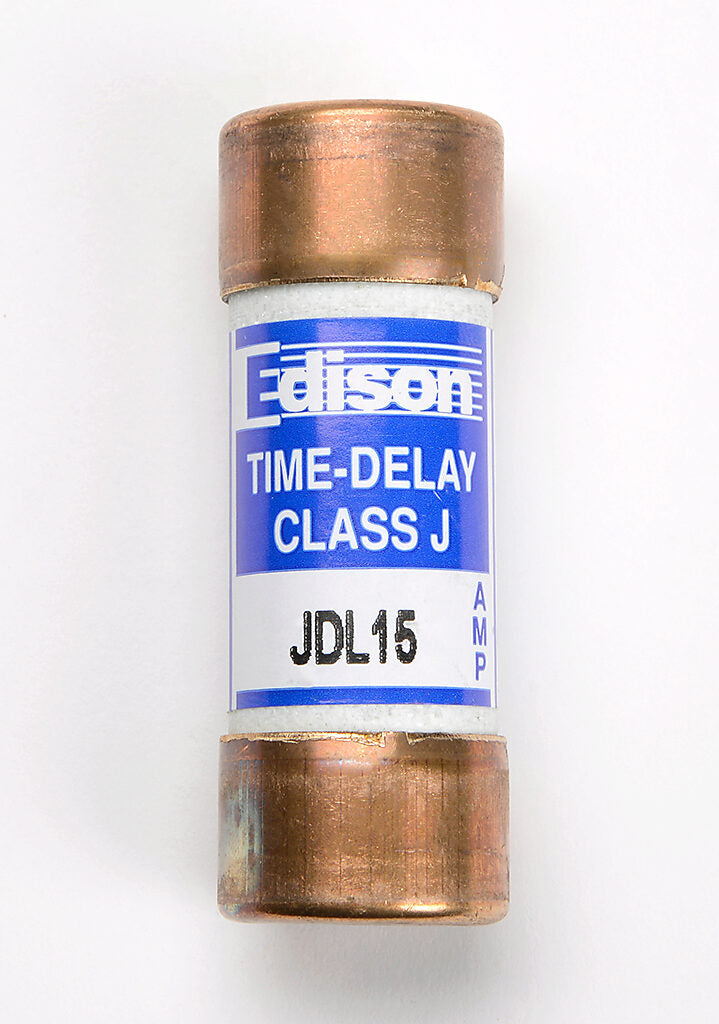

Edison Fuses JDL15 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 15A current capacity and a 300kA interrupting rating at 600V AC for reliable short-circuit protection. The compact ferrule-connected fuse measures 2.25" in length with a 0.81" diameter cylindrical body and weighs 2 lb, constructed to UL/CSA standards for safety compliance. Its fast-acting (Velocity D) protection characteristics make it suitable for motor branch circuits, transformers, and power distribution panels where high fault current interruption is required.

Key Features & Specifications

• Type: Class J time-delay fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 2.25"L x 0.81"D
• Weight: 2 lb
• Standards: UL/CSA listed
• Applications: Industrial motor protection, power distribution
• AIC rating: 300kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Velocity: D (fast-acting)
• Class Rating: J

Product Identification

• UPC: 78263480337
• GTIN: 00782634803379
