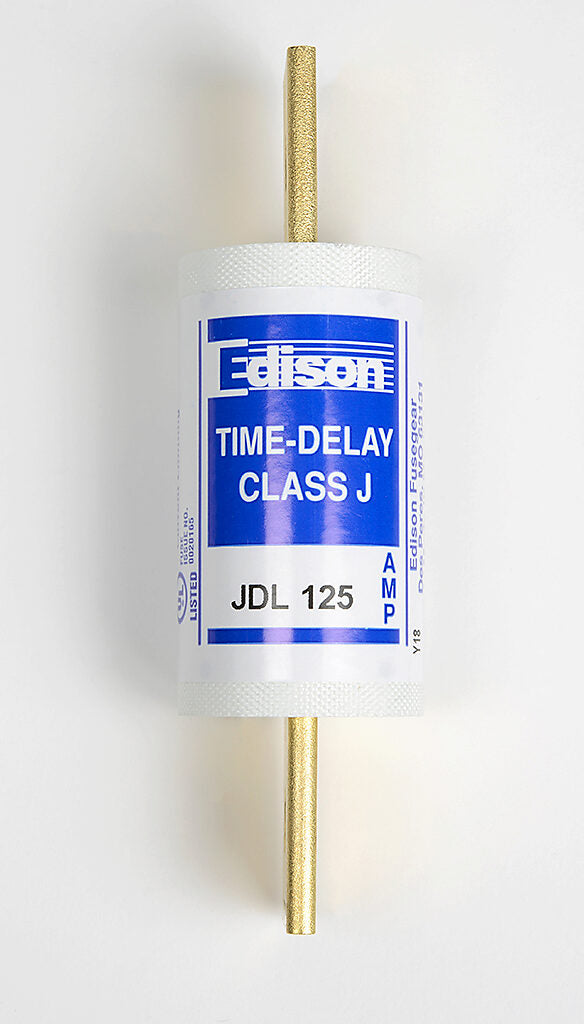

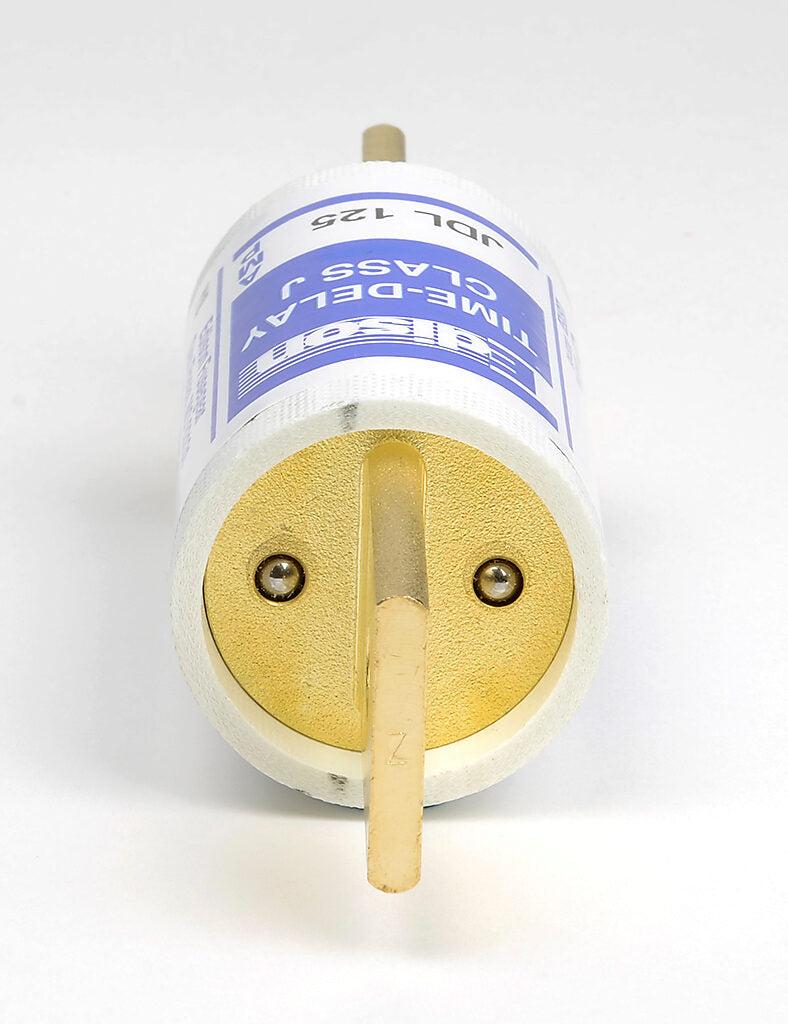

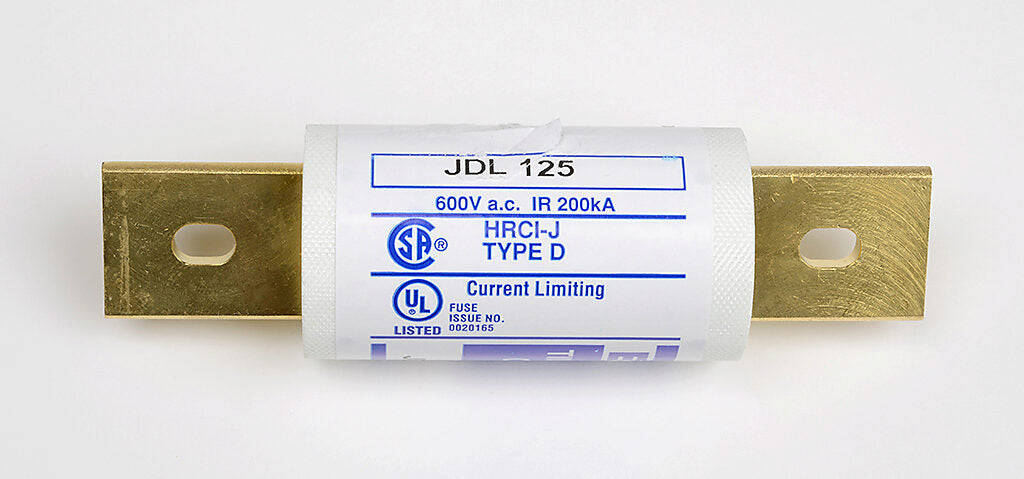

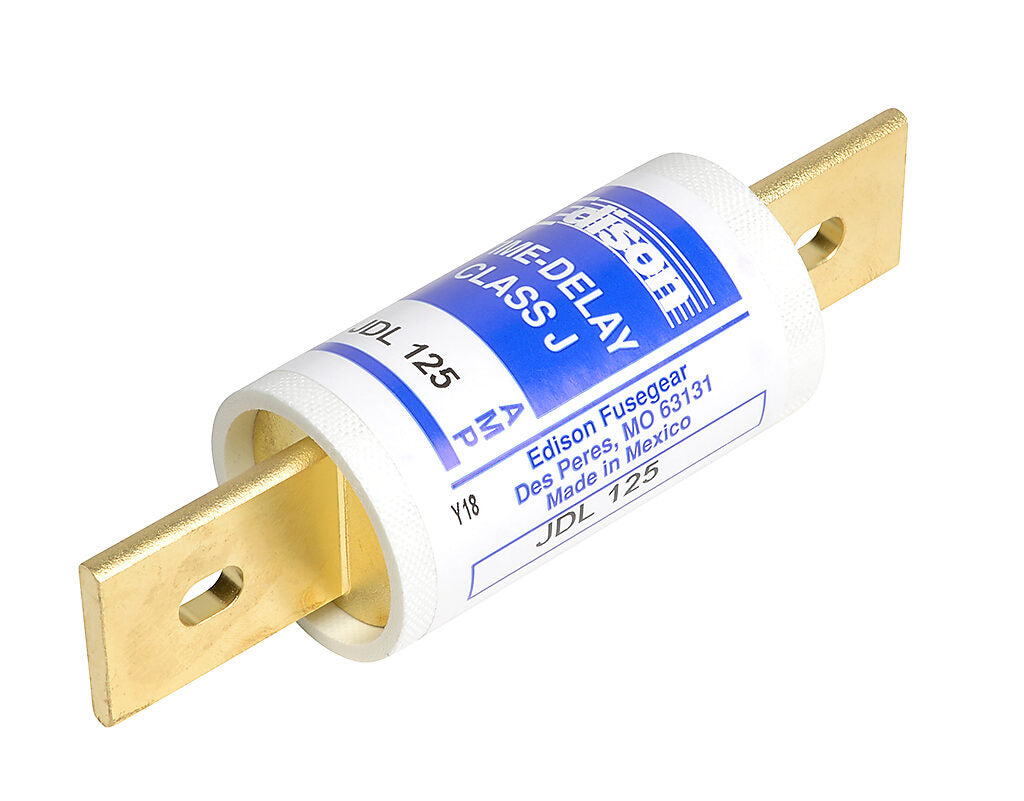

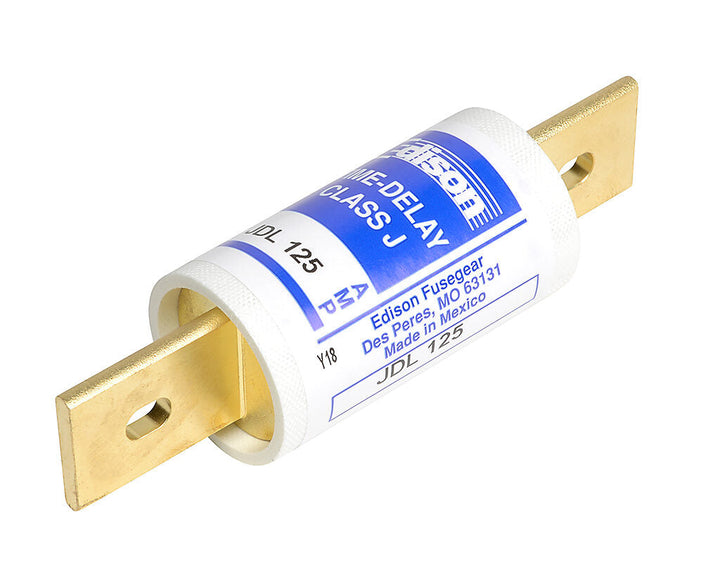

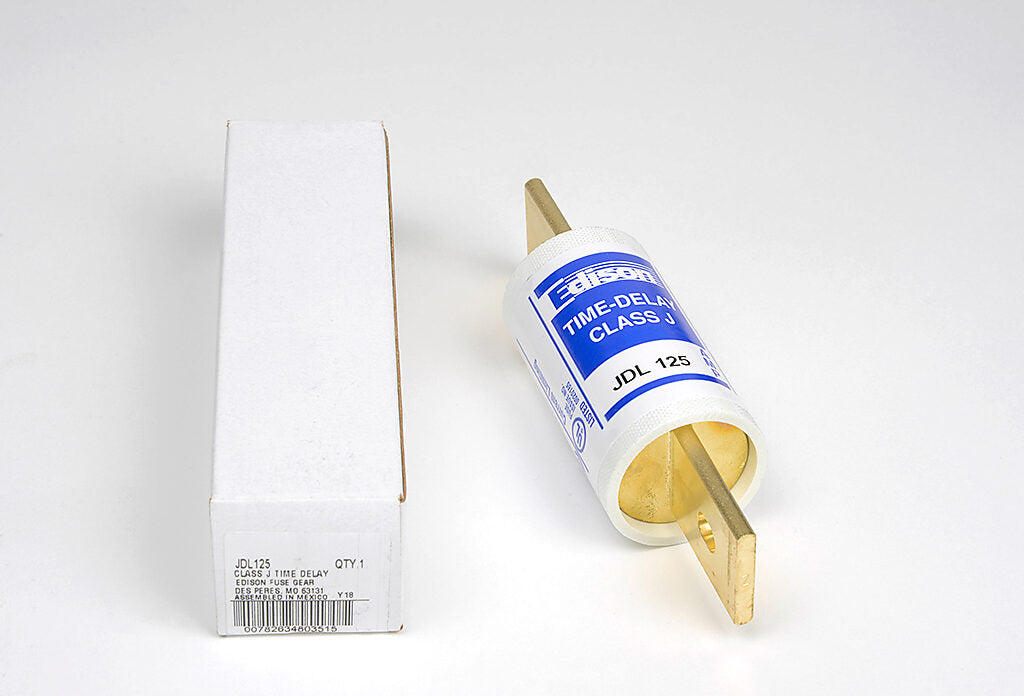

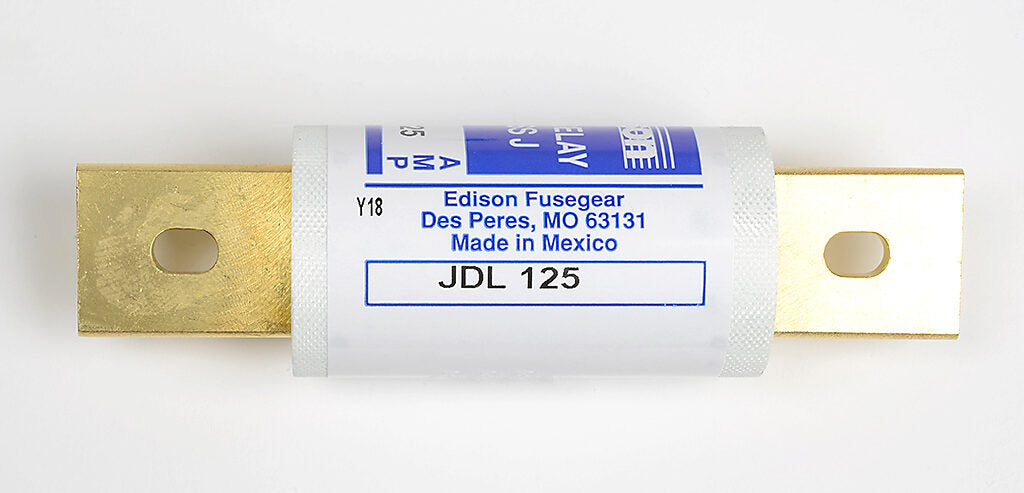

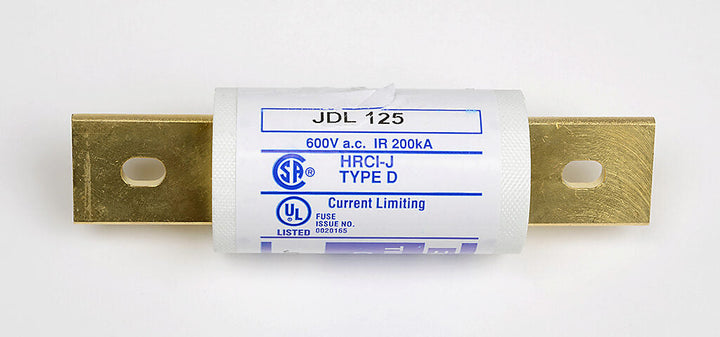

Edison Fuses JDL125 - Class J Fuse 125A@600V (300kA AIC)

Edison Fuses JDL125 is a Class J low-voltage fuse designed for high-interrupting circuit protection in industrial electrical systems. Rated for 600V AC with a 125A current capacity, it features a bolt-in blade connection and delivers 300kA interrupting capacity at rated voltage. The fuse measures 5.75" in length with a 1.63" diameter barrel construction, weighing 5.25 lb for robust physical durability. Compliant with industry standards for Class J fuses, it's engineered for motor branch circuits, transformer protection, and heavy industrial equipment applications where high fault current interruption is critical.

Key Features & Specifications

• Type: JDL Class time-delay fuse with D-characteristic velocity
• Voltage Rating: 600V AC
• Current Rating: 125A
• Dimensions: 5.75"L x 1.63"W x 1.63"H
• Standards: Class J fuse compliance
• Applications: Motor circuits, transformers, industrial equipment
• AIC rating: 300kA@600V AC
• Connection: Bolt-in blade
• Barrels: 1
• Velocity: D-characteristic
• Diameter: 1.63"
• Weight: 5.25 lb

Product Identification

• UPC: 782634803515
• GTIN: 00782634803515
