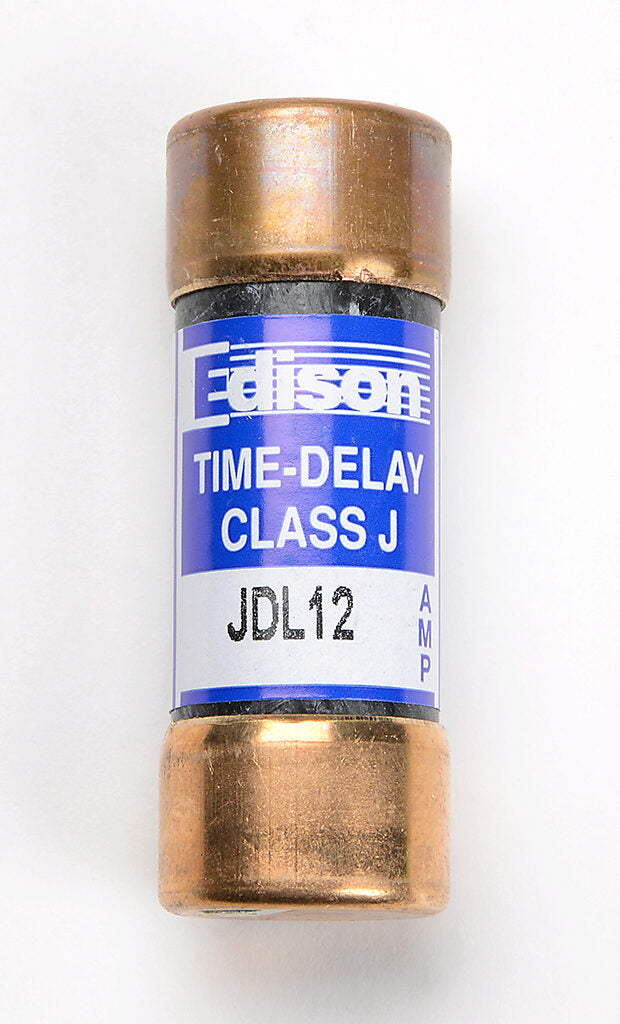

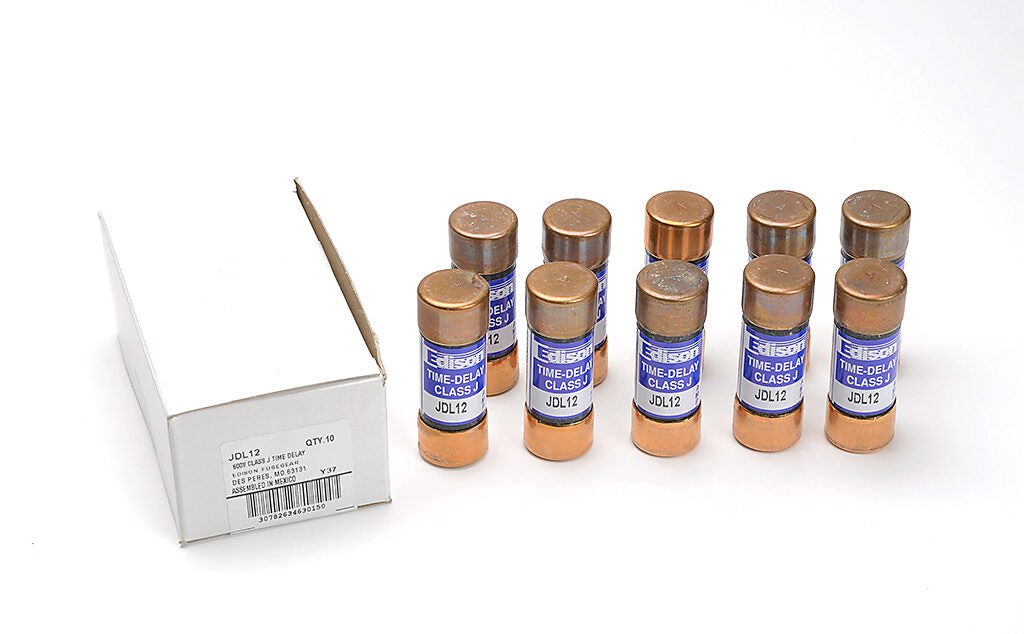

Edison Fuses JDL12 - Class J Fuse 12A 600V (300kA AIC)

Edison Fuses JDL12 is a low-voltage fuse designed for circuit protection in industrial electrical systems. This Class J fuse operates at 600V AC with a 12A current rating and features a compact ferrule connection design measuring 2.25" in length and 0.81" in diameter. Constructed to UL/CSA standards, it delivers 300kA interrupting capacity at 600V AC for reliable short-circuit protection in motor control centers, panelboards, and industrial control equipment.

Key Features & Specifications

• Type: Class J time-delay fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 12A
• Dimensions: 2.25"L x 0.81"W x 0.81"H
• Weight: 2 lb
• Diameter: 0.81"

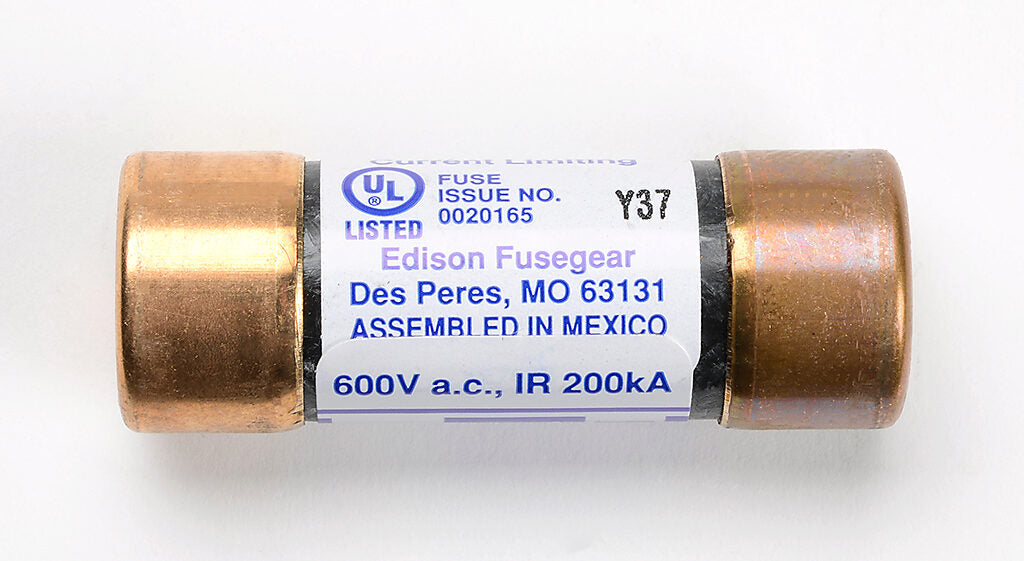

• AIC Rating: 300kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Velocity: D

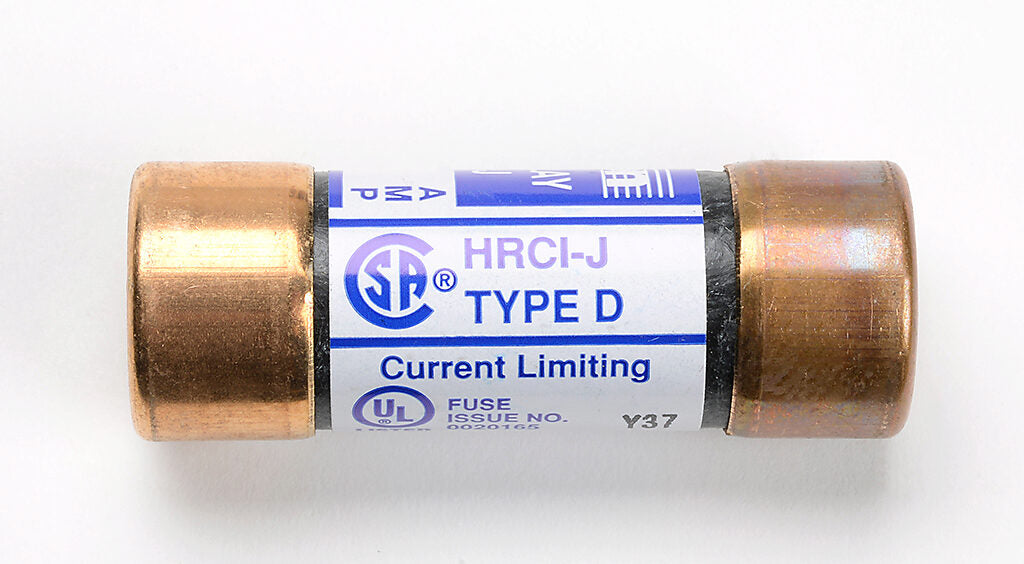

• Standards: UL/CSA listed
• Applications: Motor protection, industrial controls, panelboards

Product Identification

• UPC: 782634630159
• GTIN: 00782634630159
