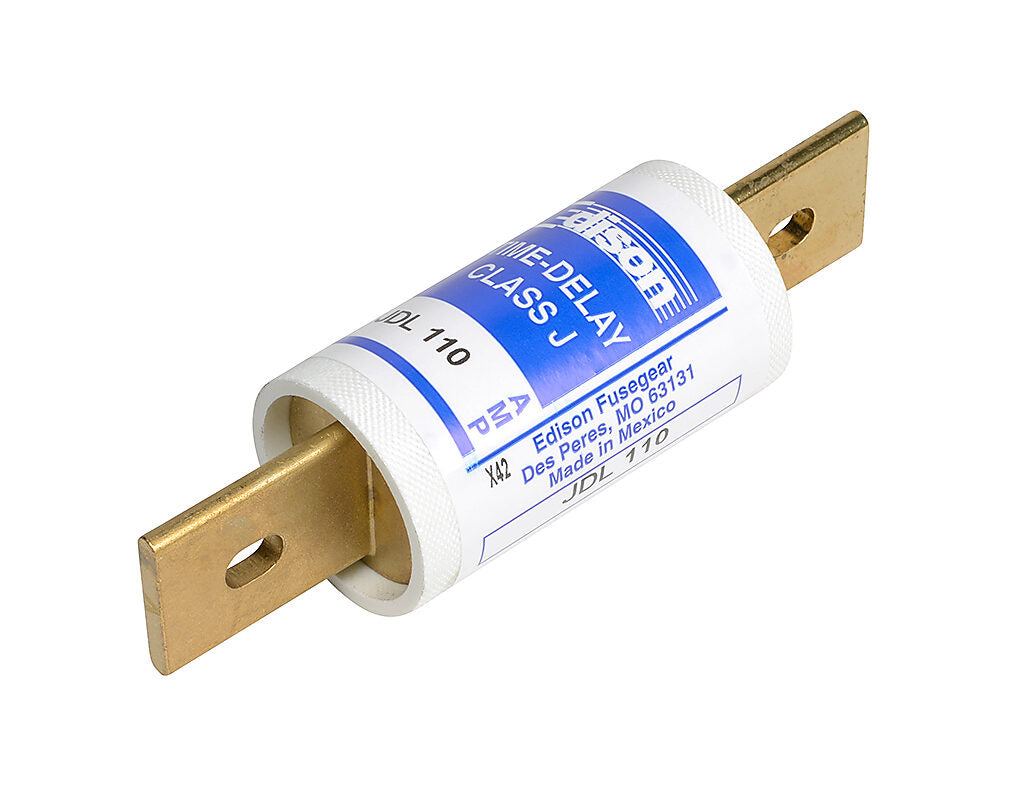

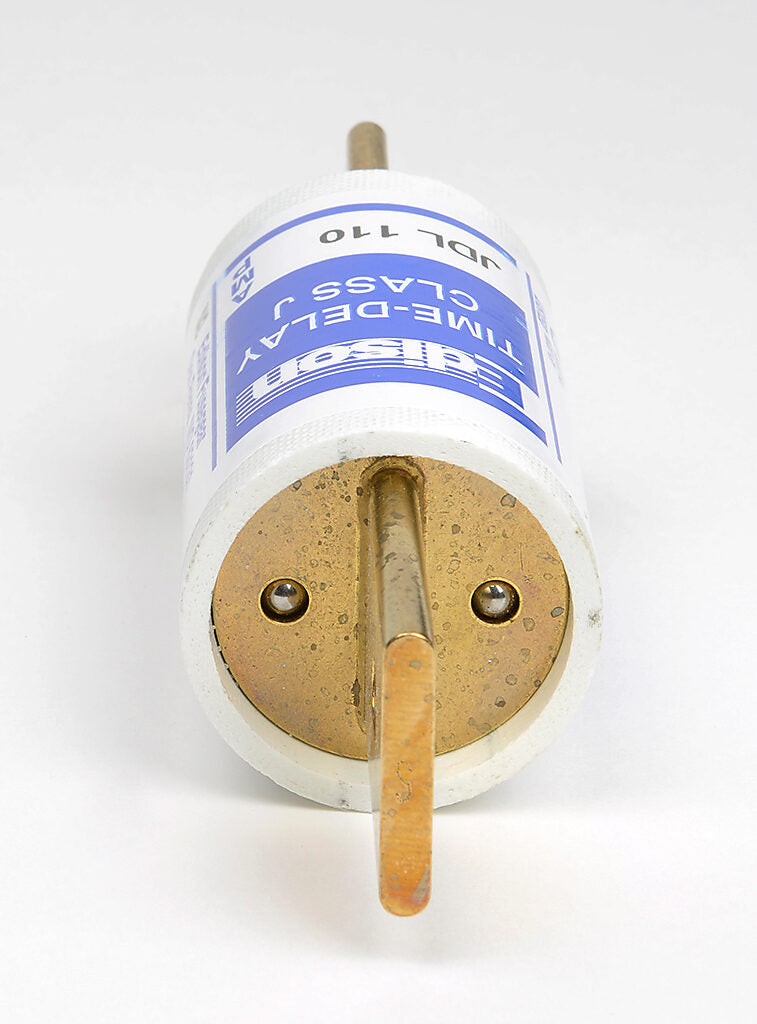

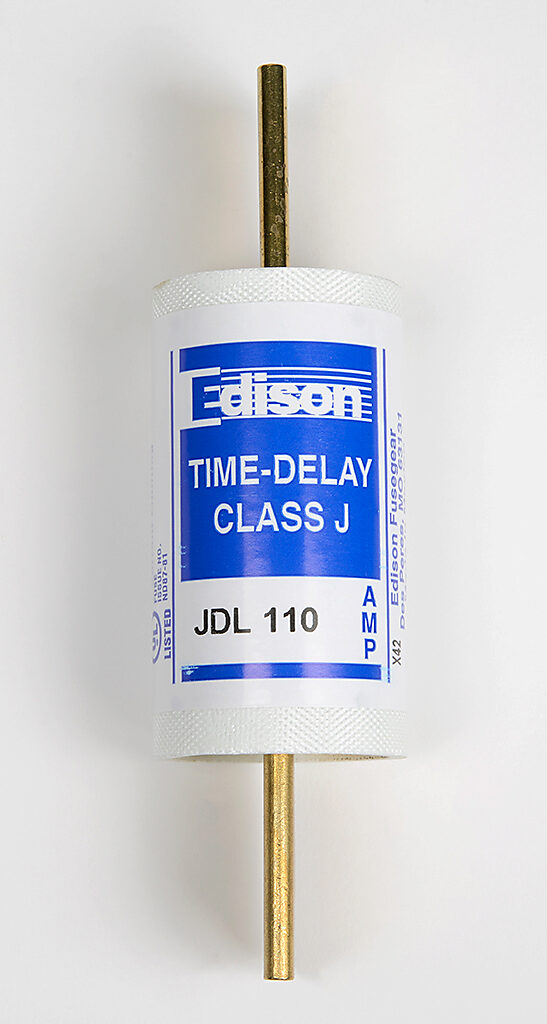

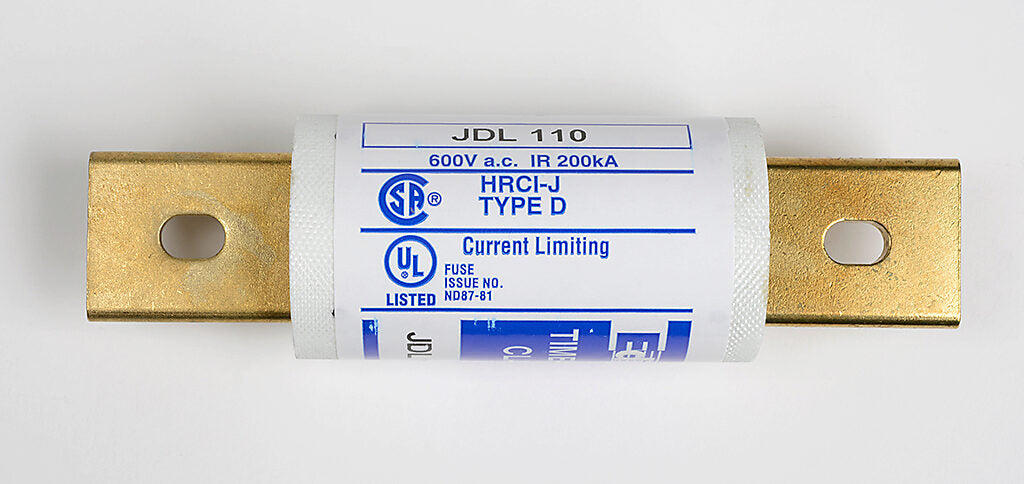

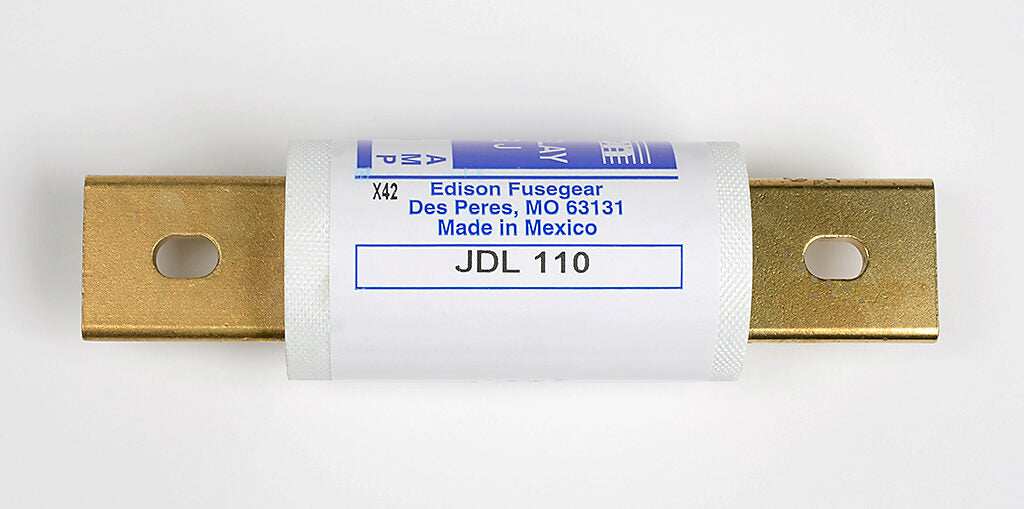

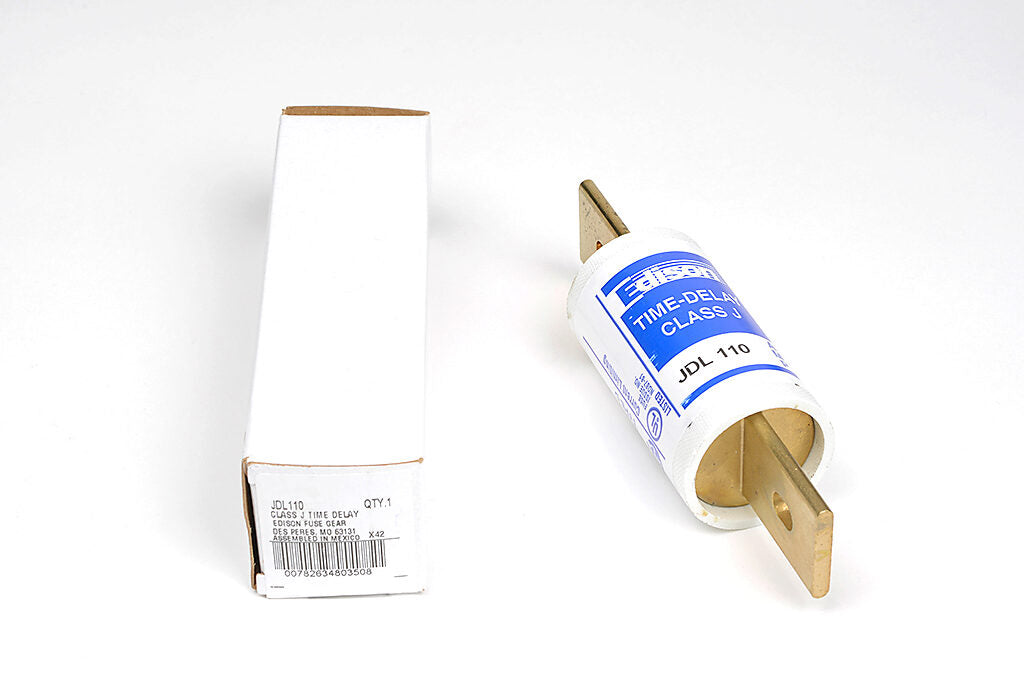

Edison Fuses JDL110 - Class J Fuse 110A@600V (300kA AIC)

Edison Fuses JDL110 is a low-voltage fuse designed for high-current circuit protection in industrial applications. This Class J bolt-in blade fuse features a 600V AC rating with a 110A current capacity and exceptional 300kA interrupting capacity at rated voltage. The durable construction measures 5.75" in length with a 1.63" diameter barrel, weighing 5.25 lb for robust performance. Compliant with industry standards for Class J fuses, it's engineered for motor branch circuits, industrial control panels, and heavy equipment protection where high fault current interruption is critical.

Key Features & Specifications

• Type: Class J time-delay fuse with bolt-in blade connection
• Voltage: 600V AC
• Current: 110A
• Dimensions: 5.75"L x 1.63"W x 1.63"H
• Standards: Class J fuse compliance
• Applications: Motor circuits, industrial controls, power distribution
• AIC rating: 300kA@600V AC
• Connection: Bolt-In Blade
• Barrels: 1
• Velocity: D
• Diameter: 1.63"
• Weight: 5.25 lb

Product Identification

• UPC: 078263480350
• GTIN: 00782634803508
