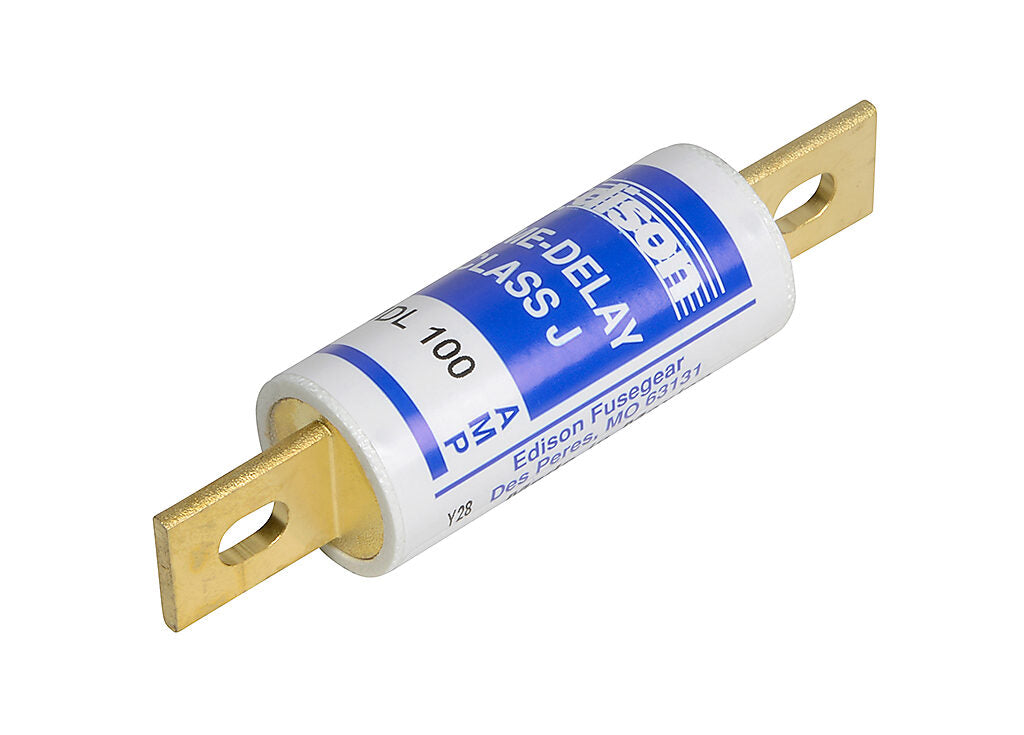

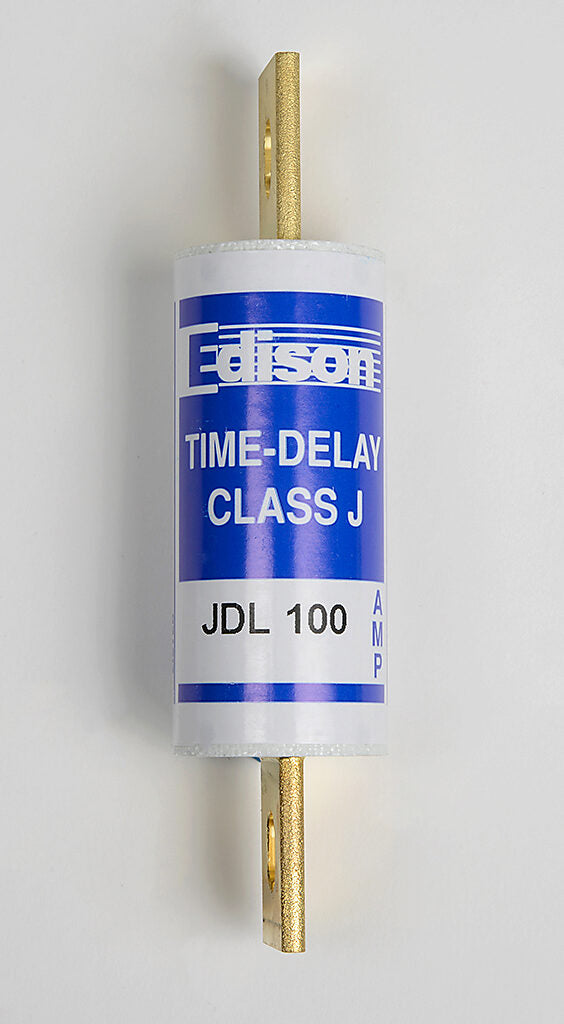

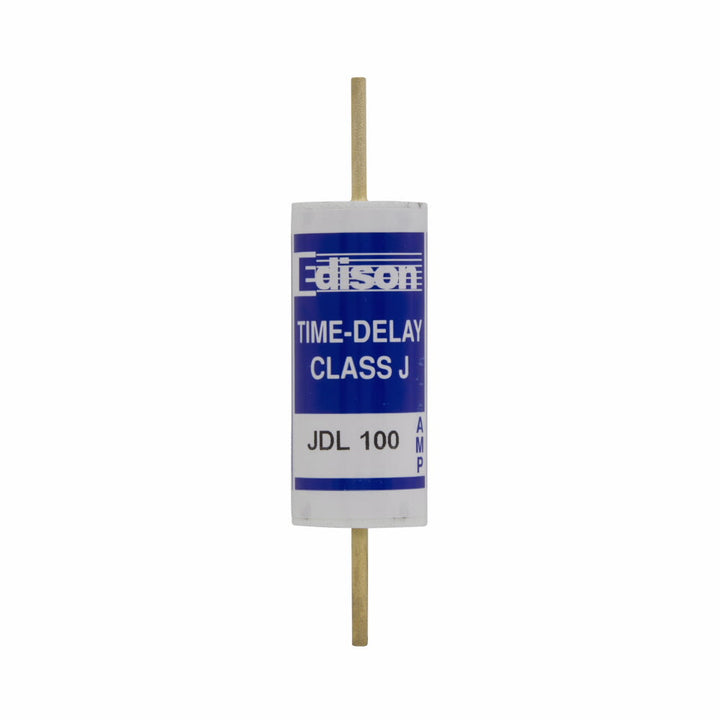

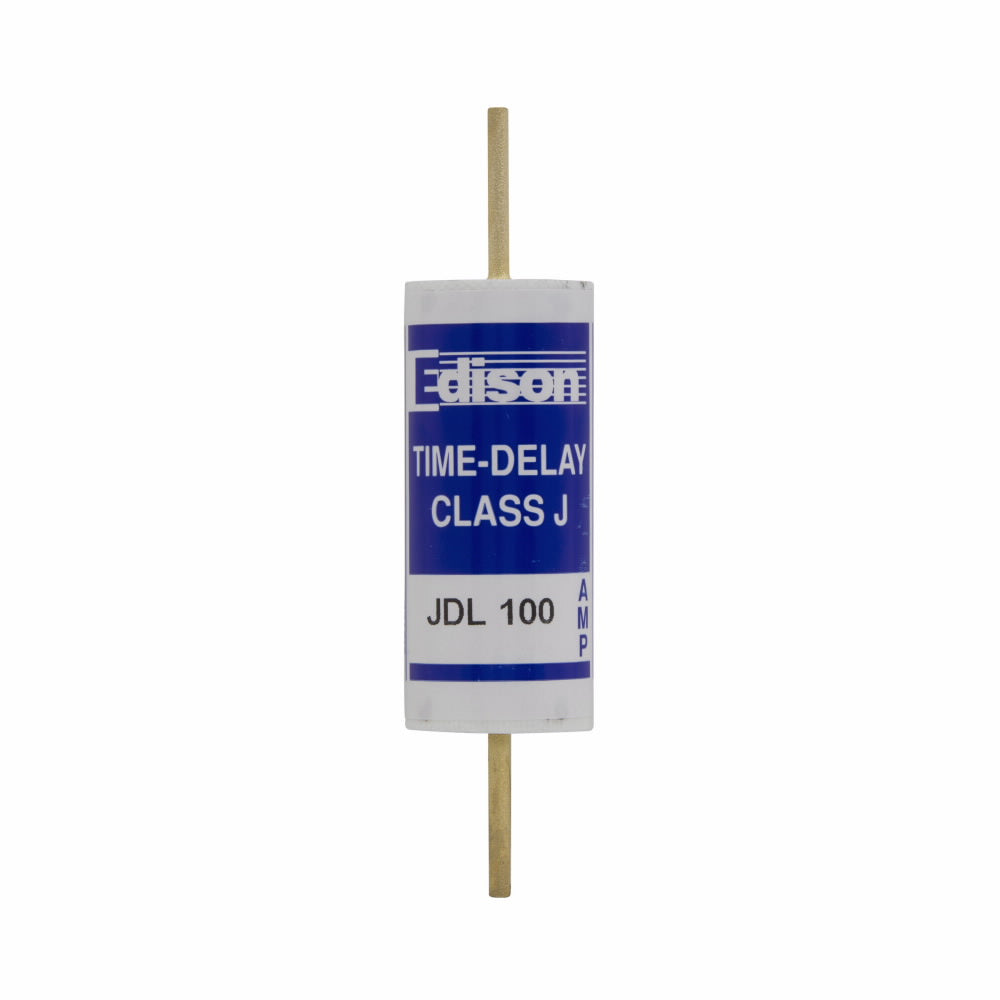

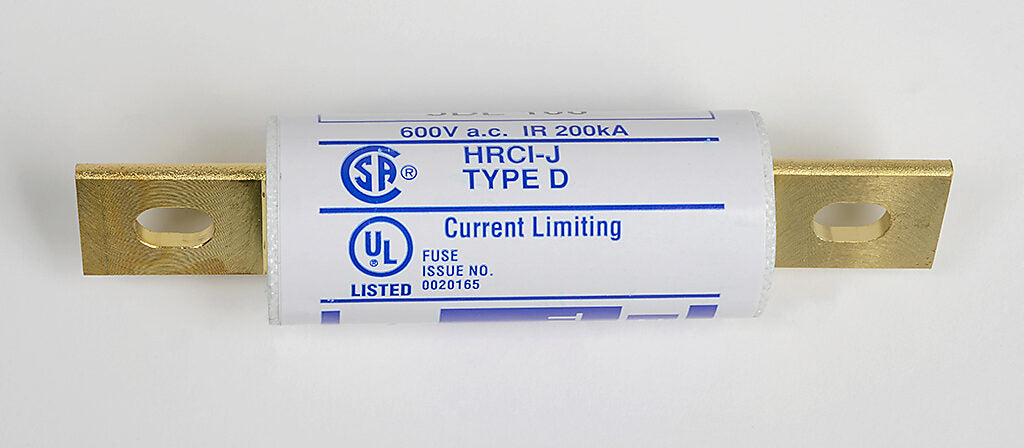

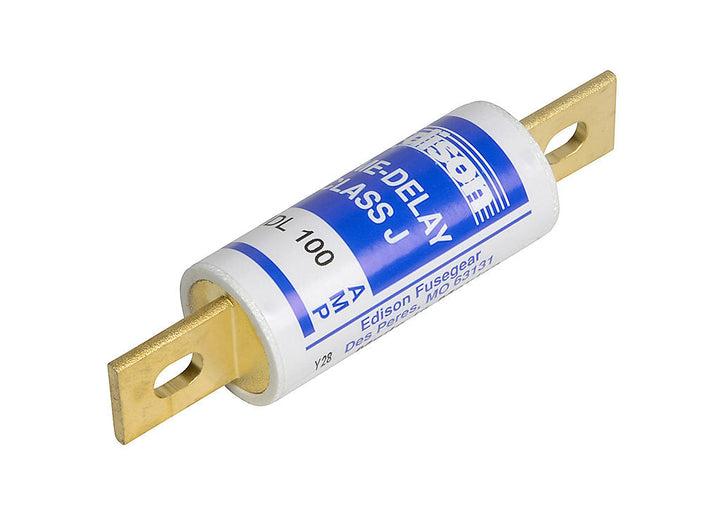

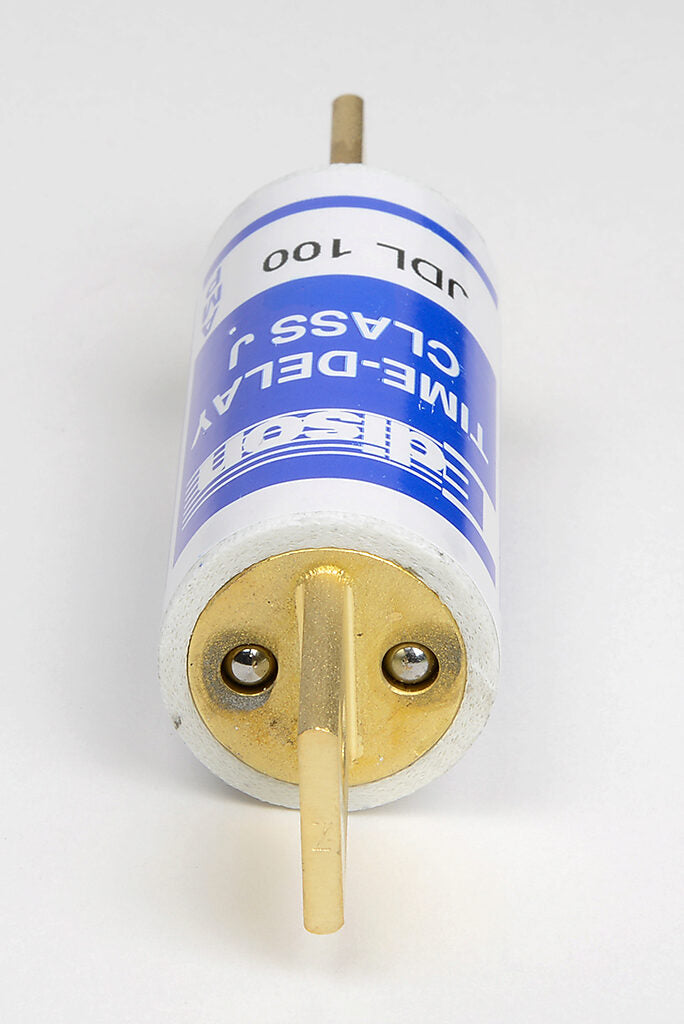

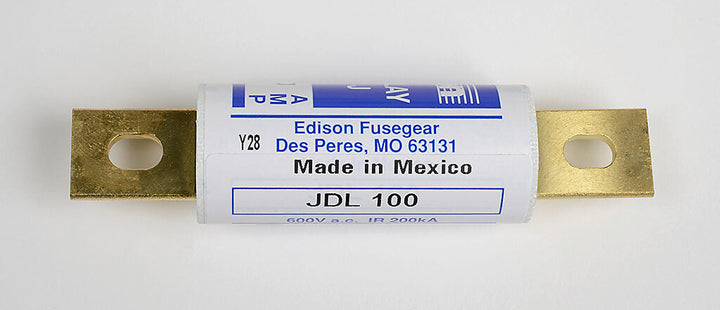

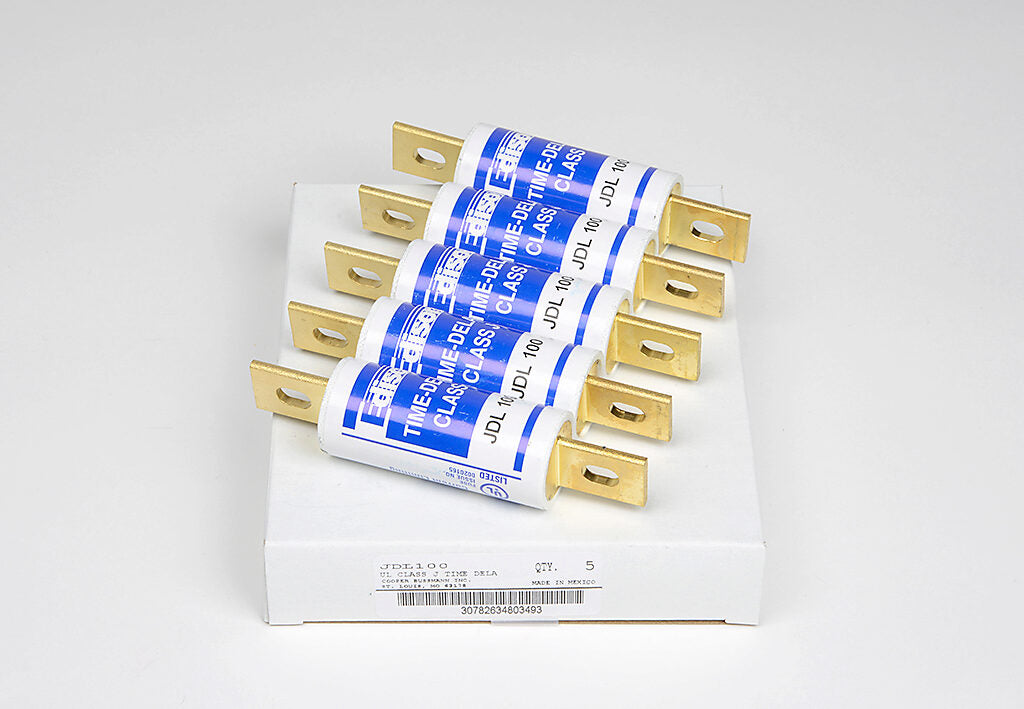

Edison Fuses JDL100 - Class J Fuse 100A 600V (300kA AIC)

Edison Fuses JDL100 is a low-voltage fuse designed for high-current circuit protection in industrial applications. This Class J bolt-in blade fuse features a 600V AC rating and 100A current capacity with a 300kA interrupting rating at 600V AC for reliable fault protection. The compact 4.63" × 1.13" × 1.13" (L×W×H) construction with D-speed operation provides fast-acting protection in power distribution systems. Compliant with industry standards for Class J fuses, it's engineered for motor branch circuits, industrial control panels, and heavy equipment protection where high fault currents may occur.

Key Features & Specifications

• Type: JDL Class J time-delay fuse with bolt-in blade connection
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 4.63" L × 1.13" W × 1.13" H (117.6mm × 28.7mm × 28.7mm)
• Standards: Class J fuse specifications
• Applications: Motor circuits, industrial controls, power distribution
• AIC rating: 300kA @ 600V AC
• Connection: Bolt-In Blade
• Barrels: 1
• Velocity: D (fast-acting)
• Diameter: 1.13" (28.7mm)
• Weight: 2.7 lb (1.22 kg)

Product Identification

• UPC: 782634803492
• GTIN: 00782635000000
