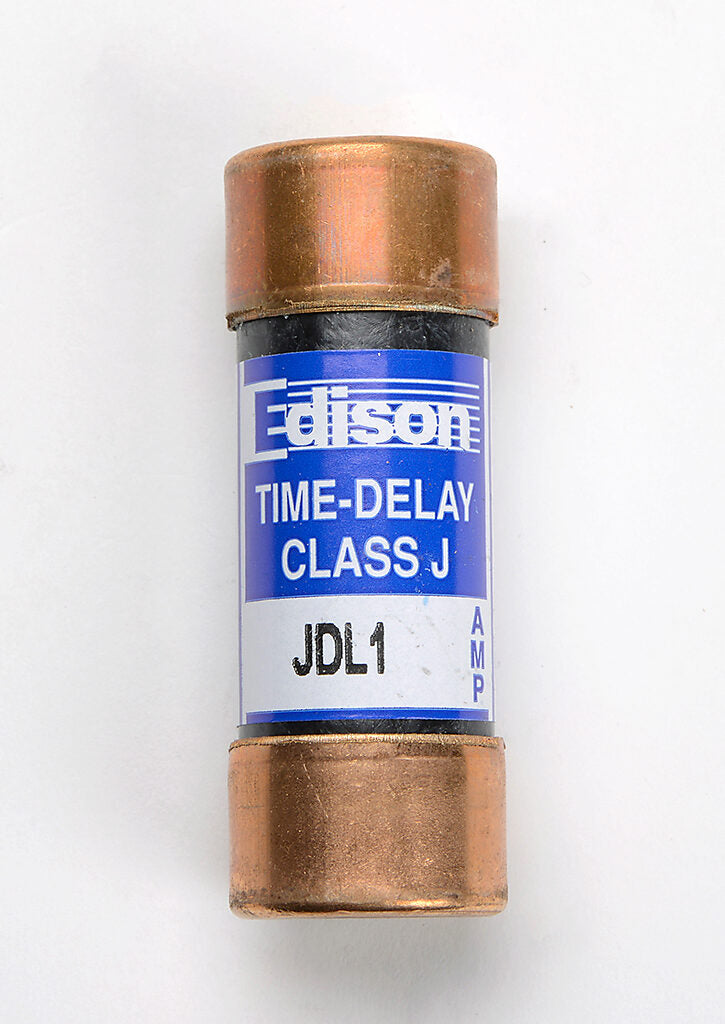

Edison Fuses JDL1 - Class J Fuse 1A 600V (300kA AIC)

Edison Fuses JDL1 is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC voltage rating and 1A current rating with a 300kA interrupting capacity at 600V AC for reliable short-circuit protection. The compact ferrule-connected fuse measures 2.25" in length with a 0.81" diameter cylindrical body weighing 2 lb, constructed to UL/CSA standards for safety compliance. Its fast-acting (Velocity D) operation makes it ideal for protecting motors, transformers, and power distribution equipment in commercial and industrial applications.

Key Features & Specifications

• Type: Class J time-delay low-voltage fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 2.25"L x 0.81"W x 0.81"H

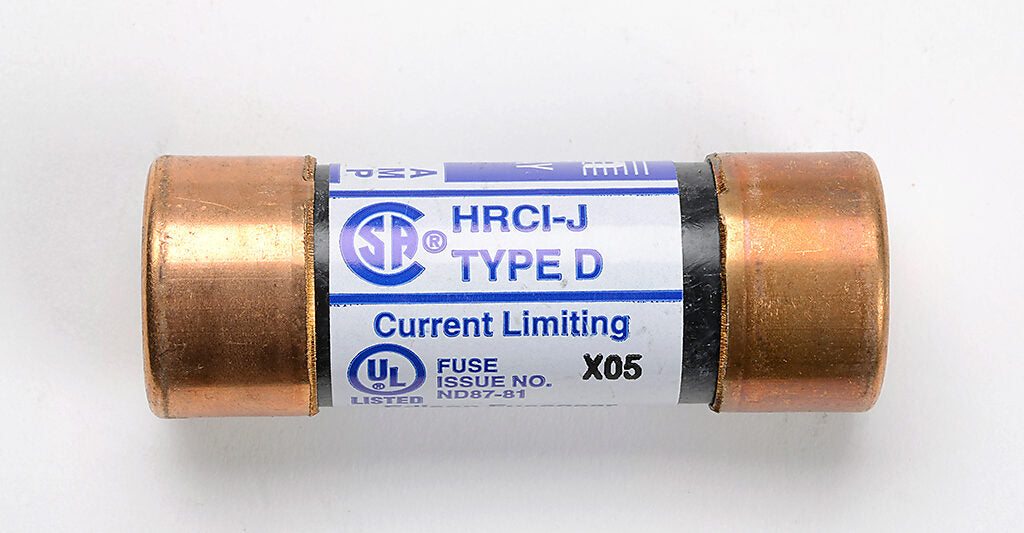

• Standards: UL/CSA listed
• Applications: Motor circuits, transformers, power distribution

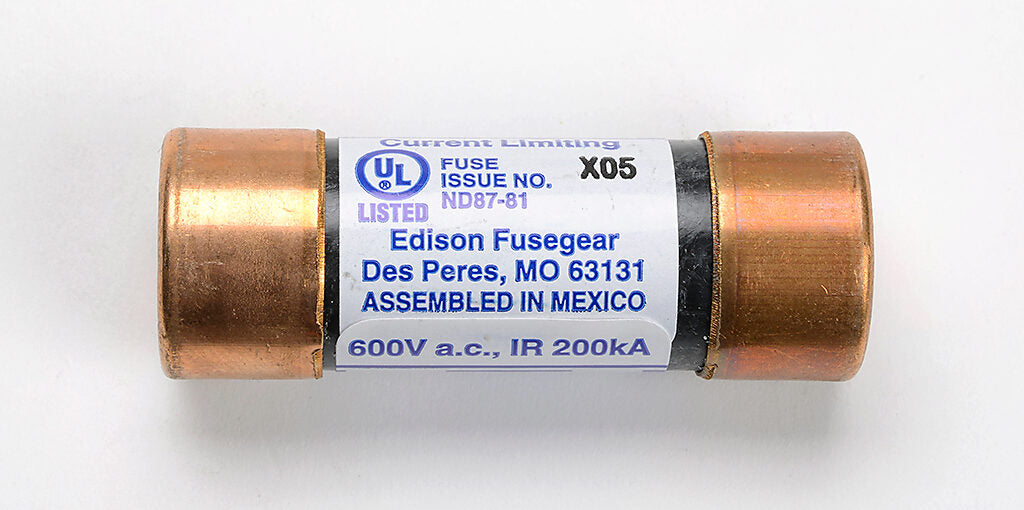

• AIC rating: 300kA@600Vac
• Connection: Ferrule
• Barrels: 1
• Velocity: D (Fast-acting)
• Class Rating: J
• Diameter: 0.81"
• Weight: 2 lb

Product Identification

• UPC: 078263480333
• GTIN: 00782634803331
