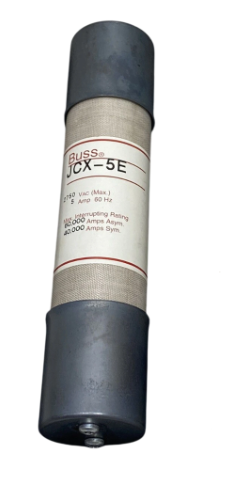

Cooper Bussmann JCX-5E - Medium Voltage Fuse 5A (2750V, 40kA AIC)

Cooper Bussmann JCX-5E is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial applications. Rated for 2750V AC systems with a 5A current rating, it features a ferrule connection and single-barrel construction with a compact 0.41" x 1" x 0.41" footprint. This Class E fuse meets industry standards with a 40kA interrupting capacity at 2.75kV, providing reliable protection for transformers, capacitors, and motor starters in utility and heavy industrial environments.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with ferrule connection
• Voltage Rating: 2750V AC
• Current Rating: 5A
• Dimensions: 0.41" L x 1" H x 0.41" W (10.4mm x 25.4mm x 10.4mm)
• Weight: 3 lb
• Diameter: 2"
• Class Rating: E
• AIC Rating: 40kA @ 2.75kV
• Connection: Ferrule
• Barrels: 1
• Standards: Meets industry requirements for medium-voltage protection
• Applications: Transformer, capacitor, and motor circuit protection

Product Identification

• UPC: 051712694230
• GTIN: 00051712694230
