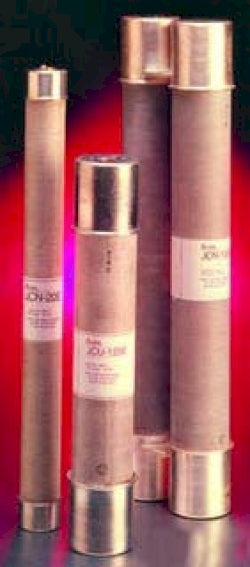

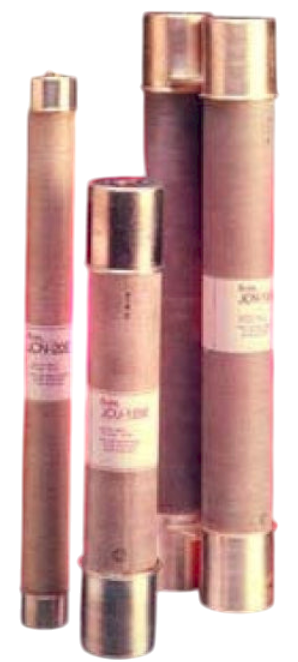

Bussmann JCX-50E - Class E Medium Voltage Fuse 50A (2750V, 50kA AIC)

The Bussmann JCX-50E is a Class E medium-voltage fuse engineered to provide reliable overcurrent protection in demanding electrical systems. It features a 50A current rating and a 2750V voltage rating, ensuring robust performance in high-voltage applications. The fuse is constructed with a single-barrel design featuring ferrule connections and measures 3 inches in diameter with a weight of 6 lb for straightforward integration. It complies with industry standards for Class E fuses and offers an interrupting rating of 50kA at 2.75kV. This component is typically applied in industrial power distribution, motor protection circuits, and medium-voltage switchgear where high interrupting capacity is required.

Key Features & Specifications

• Type: Medium Voltage Fuse, Class E, Single Barrel, Ferrule Connection
• Voltage Rating: 2750V
• Current Rating: 50A
• Dimensions: 3" Diameter
• Standards: Class E Fuse Standards
• Applications: Industrial Power Distribution, Motor Protection, Medium-Voltage Switchgear
• AIC rating: 50kA @ 2.75kV
• Connection: Ferrule
• Barrels: 1
• Class Rating: E
• Weight: 6 lb

Product Identification

• UPC: 051712174022
• GTIN: 00051712174022
