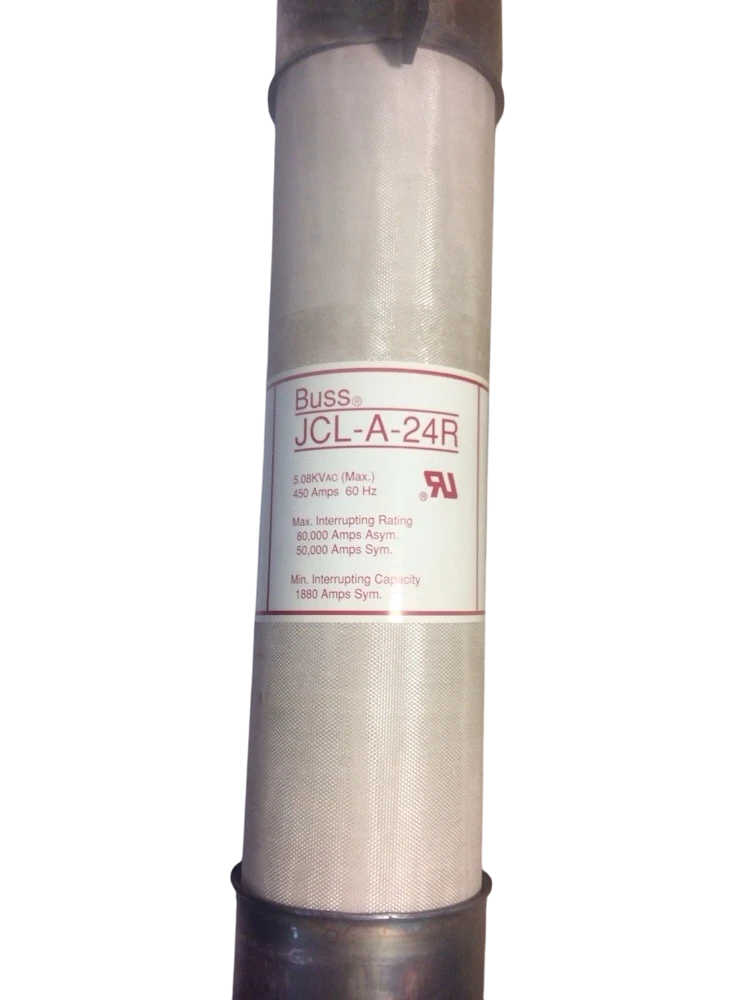

Cooper Bussmann JCL-24R - Medium Voltage Fuse 5080V (50kA AIC @4800V)

Cooper Bussmann JCL-24R is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This JC Series fuse features a 5080V voltage rating and 450A current rating with a 50kA interrupting capacity at 4800V, housed in a robust dual-barrel construction with a 3-inch diameter and Class R rating. Its current-limiting design provides fast-acting protection against short circuits while meeting stringent industry standards for medium-voltage applications. The fuse is engineered for demanding environments including utility substations, industrial switchgear, and large motor protection systems.

Key Features & Specifications

• Type: JCL current-limiting medium-voltage fuse with dual-barrel construction
• Voltage Rating: 5080V AC
• Current Rating: 450A
• Dimensions: 3" diameter
• Standards: Class R rated
• Applications: Industrial power systems, substations, motor protection
• AIC rating: 50kA@4800V
• Barrels: 2
• Weight: 19 lb

Product Identification

• UPC: 05171269124
• GTIN: 00051712691246
