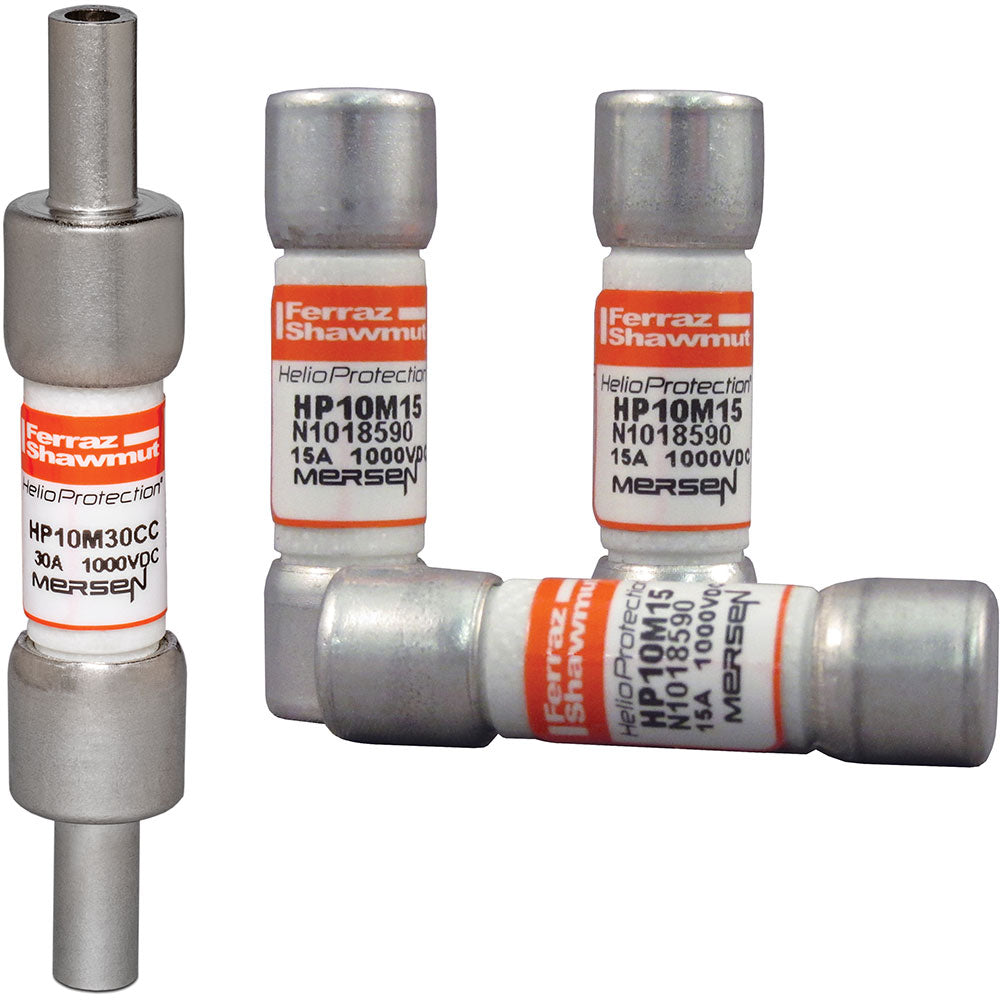

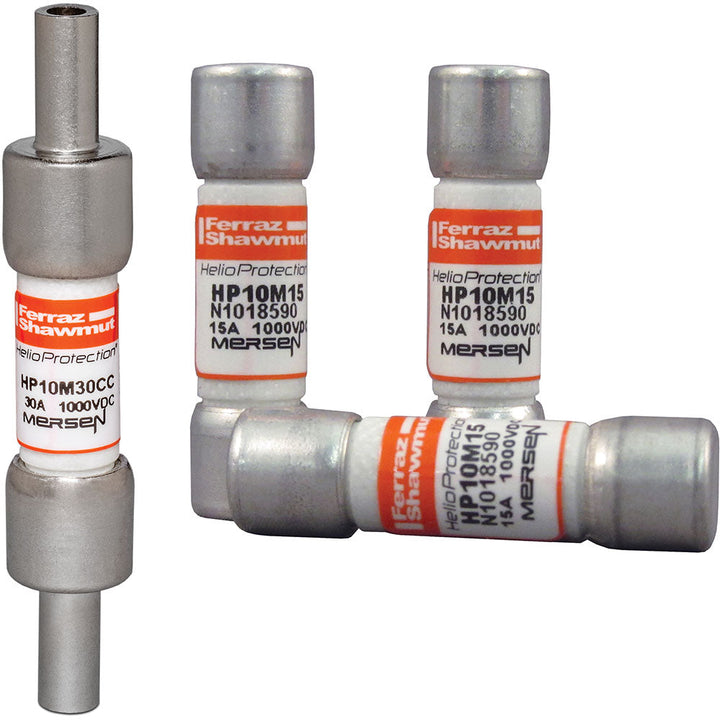

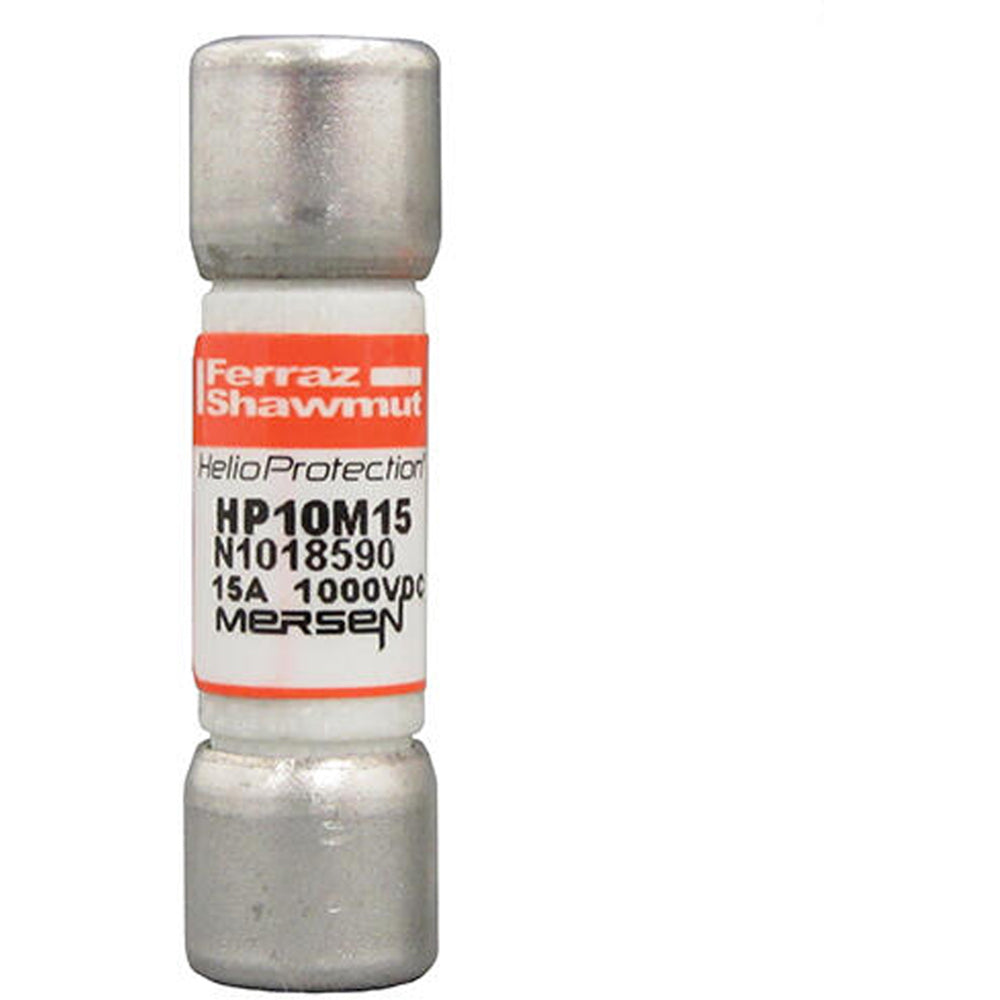

Federal Pacific HP10M15 - Medium Voltage Fuse 1000V/15A (50kA AIC Photovoltaic Protection)

Federal Pacific HP10M15 is a medium voltage fuse designed for photovoltaic system protection with a 1000V rating and 15A current capacity. Engineered for high-performance DC applications, it features a compact 1-1/2 inch ferrule connection design with a 10.4mm diameter and 5 lb weight. The fuse meets rigorous safety standards including UL2579, IEC 60269-6, and CSA C22.2 certifications, with a 50kA interrupting capacity at 1000VDC. Its HP-class construction provides reliable overcurrent protection for industrial solar arrays and medium-voltage distribution systems.

Key Features & Specifications

• Type: HP-class medium voltage fuse with ferrule connection
• Voltage Rating: 1000V DC
• Current Rating: 15A
• Dimensions: 1-1/2 inch length, 10.4mm diameter
• Weight: 5 lb
• Standards: UL2579, IEC 60269-6, CSA C22.2, CE
• Applications: Photovoltaic systems, medium-voltage DC protection
• AIC rating: 50kA@1000VDC
• Connection: Ferrule
• Barrels: 1
• Certification: UL Listed (File E333668)

Product Identification

• UPC: 78200142995
• GTIN: 00782001429959
