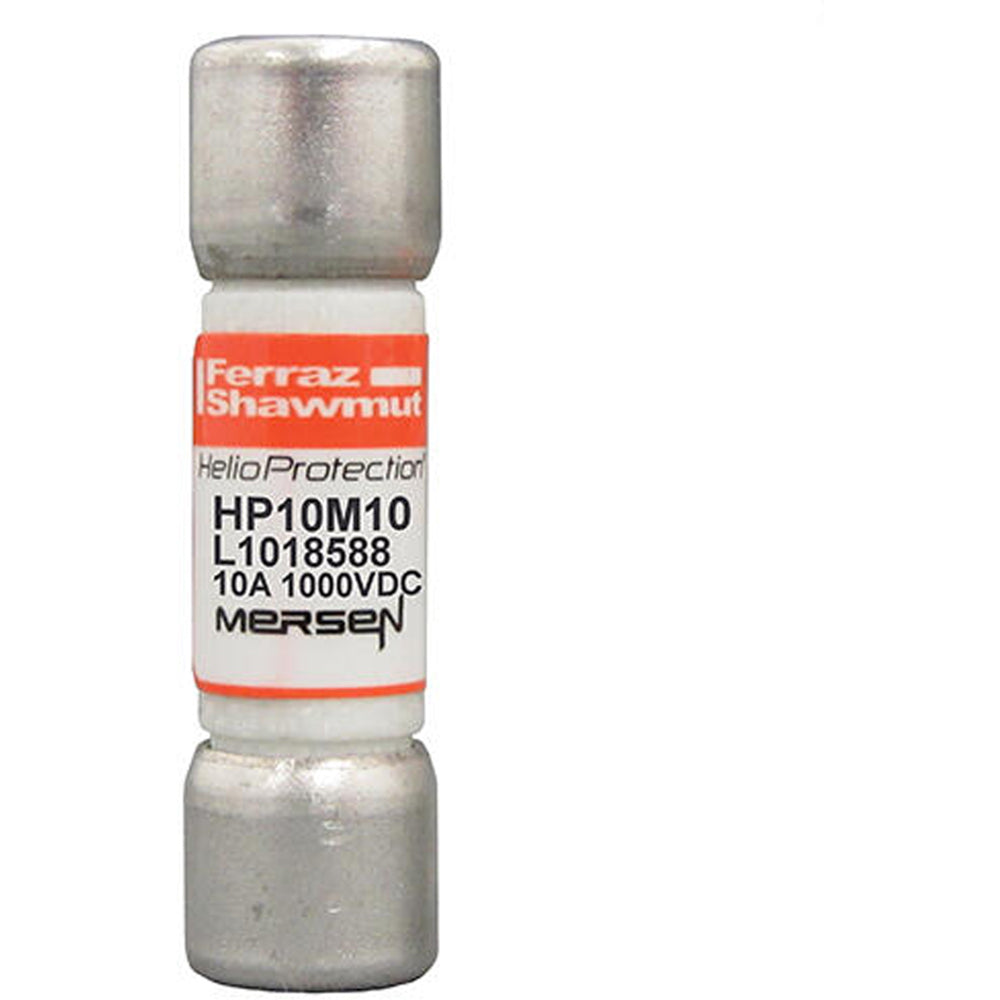

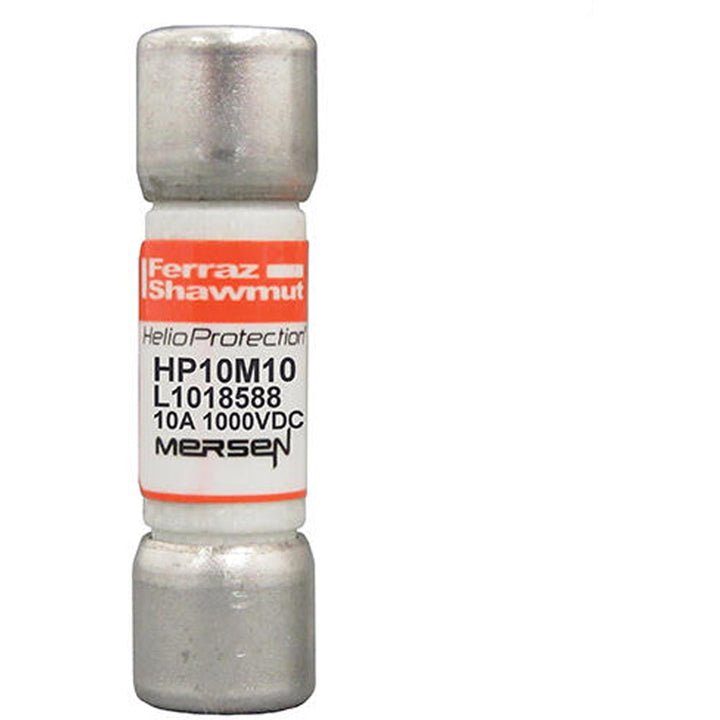

Ferraz Shawmut HP10M10 - Medium Voltage Photovoltaic Fuse 10A 1000VDC (50kA AIC)

Ferraz Shawmut HP10M10 is a medium voltage fuse designed for photovoltaic system protection, featuring a 10A current rating and 1000V voltage capacity for robust circuit interruption. Its ferrule-connected, single-barrel construction measures 10.4mm in diameter with a compact 1-1/2 inch form factor, weighing 5 lb for durable industrial deployment. Certified to UL2579, IEC 60269-6, and CSA C22.2 standards, this HP-class fuse delivers 50kA interrupting capacity at 1000VDC for solar array combiner boxes and DC distribution systems.

Key Features & Specifications

• Type: Medium voltage photovoltaic fuse (HP class) with silver-sand construction
• Voltage Rating: 1000V DC
• Current Rating: 10A
• Dimensions: 1-1/2 inch length, 10.4mm diameter
• Standards: UL2579 (E333668), IEC 60269-6, CSA C22.2, CE
• Applications: Solar combiner boxes, DC distribution panels
• AIC rating: 50kA@1000VDC
• Connection: Ferrule terminal
• Barrels: 1
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 078200142993
• GTIN: 00782001429935
